914 S (1690522) - AGCO 42" Garden Tractor, 14hp (SN: 0001 - 4701) Electrical Group - 7114, 7116 Parts Diagram

42" Garden Tractor, 14hp

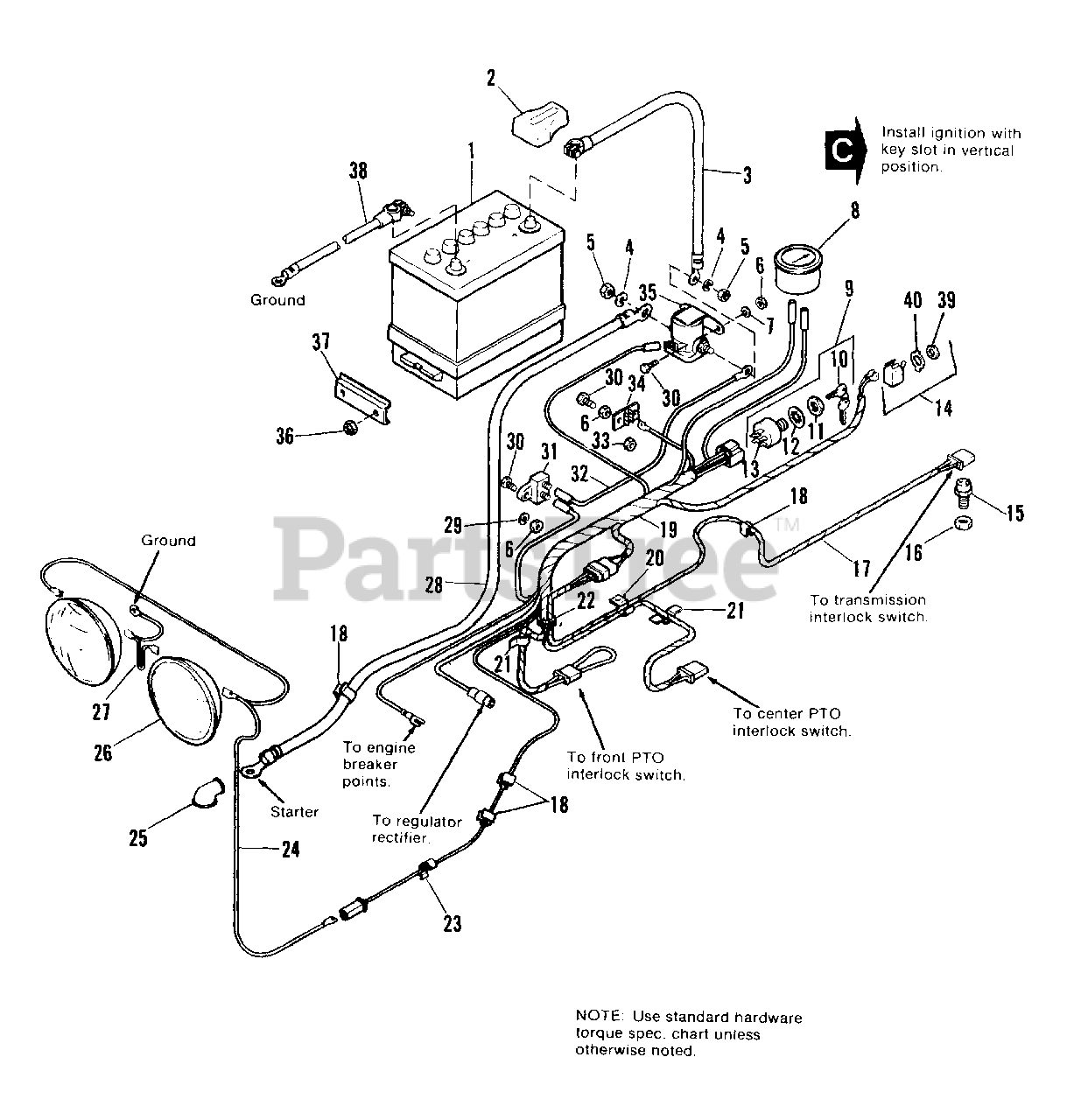

Electrical Group - 7114, 7116 Parts Diagram

  • Title

1

Simplicity 1685058SM

BATTERY (Includes Decal)

$

$

Not available

2

Simplicity 1713534SM

PROTECTOR, Terminal

$5.99

$

Usually ships in 2-12 days

0

3

Simplicity 1665235SM

CABLE (Battery to Ground)

$25.99

$

In Stock, only 1 left!

0

4

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

8

Simplicity 1603189SM

AMMETER

$

$

Not available

9

Simplicity 2178280SM

SWITCH & KEY ASSY., Ignition
(Superseded to 421064MA)

Note: Ref. No. 9 includes Ref. Nos.10, 11, 12 & 13.

$32.99

$

In Stock, Qty 9

0

10

Simplicity 1717163SM

KEY SET (2)

$8.99

$

In Stock, Qty 20+

0

11

Simplicity 2122234SM

NUT, Special
(Superseded to 704229)

$3.49

$

In Stock, only 1 left!

0

12

Simplicity 2818906

LOCKWASHER, Internal, 5/8

$

$

Not available

13

SWITCH, Ignition (See Ref. No. 9)

$

$

Not available

14

Simplicity 2122184SM

SWITCH, Toggle

$22.99

$

Usually ships in 2-12 days

0

15

Simplicity 2177522SM

SWITCH, Interlock

$49.99

$

In Stock, Qty 9

0

16

Simplicity 1930647

NUT, Pal
(Superseded to 2830647SM)

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 1665236

WIRE ASSY.

$

$

Not available

18

Simplicity 2172434SM

CLIP, Tinnerman

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 1666325

HARNESS ASSY.

$

$

Not available

20

Simplicity 2832771

CLIP, Cable

$

$

Not available

21

Simplicity 176912

CLIP, Wire

$

$

Not available

22

Simplicity 2172175

GROMMET

$

$

Not available

23

Simplicity 2172436SM

CLIP, Tinnerman

$4.49

$

In Stock, only 3 left!

0

24

Simplicity 1666665SM

WIRE ASSY.

$5.49

$

Usually ships in 2-12 days

0

25

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

26

Simplicity 1665853SM

LAMP, Sealed Beam, G.E., #4411-1

$

$

Not available

27

Simplicity 1666731

WIRE ASSY.

$

$

Not available

28

Simplicity 1666328SM

CABLE (Solenoid to Starter)

$14.99

$

Usually ships in 2-12 days

0

29

Simplicity 921880

LOCKWASHER, 1/4

$

$

Not available

30

Simplicity 2821959

CAPSCREW, Hex Hd., 1/4-20 x 5/8

$

$

Not available

31

Simplicity 1665238SM

CIRCUIT BREAKER

$14.99

$

In Stock, Qty 20+

0

32

Simplicity 1665237SM

WIRE ASSY.

$11.99

$

In Stock, Qty 7

0

33

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

34

Simplicity 1665230SM

BOARD, Terminal

$

$

Not available

35

Simplicity 2122216SM

SOLENOID, Starter

$

$

Not available

36

Simplicity 2824433

NUT, Elastic, 5/16-18

$

$

Not available

37

Simplicity 2171225SM

CLAMP

$10.99

$

In Stock, only 1 left!

0

38

Simplicity 2171811SM

CABLE(Battery to Ground)

$

$

Not available

39

Simplicity 1650880

NUT, Switch

$

$

Not available

40

Simplicity 1650878

PLATE

$

$

Not available
