912970 - Ariens Fairway 26" Rear-Engine Rider, 5hp Tecumseh (SN: 000101 & Above) Electrical System Parts Diagram

Fairway 26" Rear-Engine Rider, 5hp Tecumseh

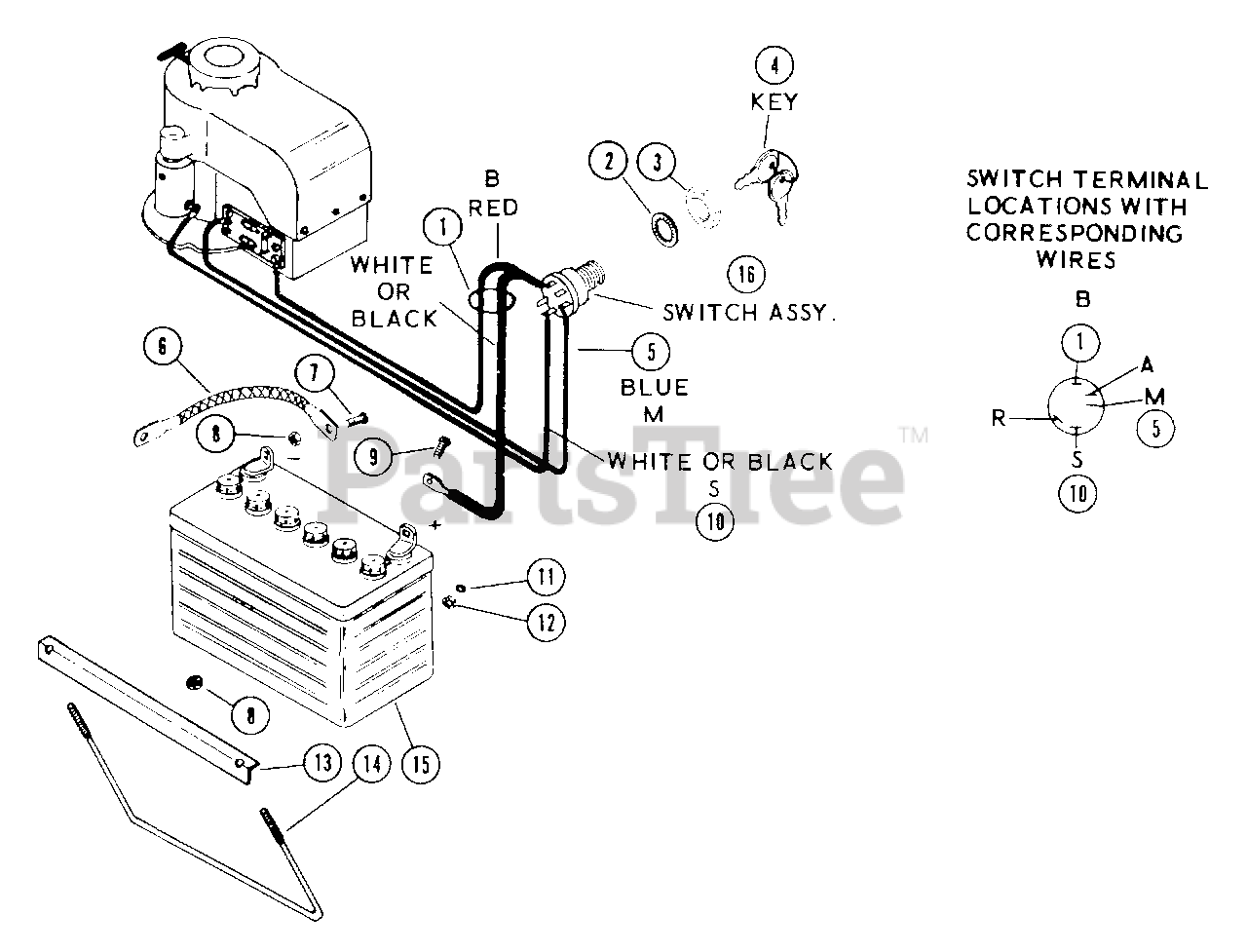

Electrical System Parts Diagram

  • Title

1

Ariens 01216800

POSITIVE BATTERY CABLE

$

$

Not available

2

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 06507500

NUT .625-32 ALUM
(Superseded to 06517300)

$7.99

$

Usually ships in 4-12 days

0

4

Ariens 01315700

KEYS
(Superseded to 02460700)

Note: (only)

$7.99

$

In Stock, Qty 20+

0

5

Ariens 01216900

ENG SHORTING WIRE

$

$

Not available

6

Ariens 00332300

GROUND CABLE

$

$

Not available

7

Ariens 05908000

BLT-HEX .25-20X.63 PL GR2
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

8

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

10

Ariens 01216600

CABLE

$

$

Not available

11

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

13

Ariens 01304400

BATTERY HOLD DOWN
(Superseded to 03057800)

$

$

Not available

14

Ariens 01215500

BATTERY CLAMP

$

$

Not available

15

Ariens 01308100

BATTERY

$

$

Not available

16

Ariens 61394300

IGNITION SWITCH ASSEMBLY
(Superseded to 51301200)

$

$

Not available
