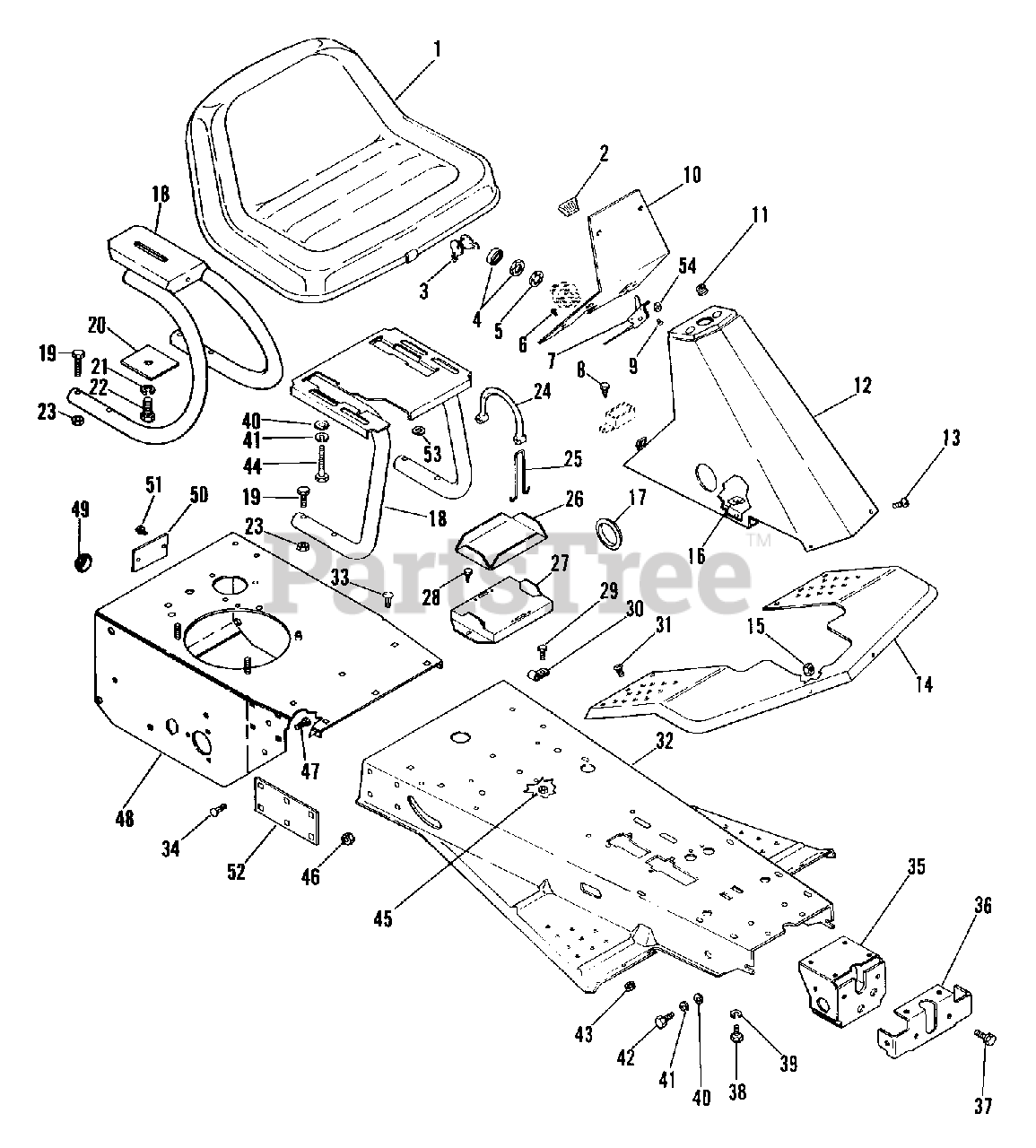

912010 - Ariens Fairway 26" Rear-Engine Rider, 6hp Tecumseh (SN: 000101 & Above) Frame And Seat Parts Diagram

Fairway 26" Rear-Engine Rider, 6hp Tecumseh

Frame And Seat Parts Diagram

  • Title

1

Ariens 01231500

SEAT

$

$

Not available

1

Ariens 01235600

SEAT

$

$

Not available

2

Ariens 07501900

KNOB

$

$

Not available

3

Ariens 01315700

KEYS
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

4

Ariens 06507500

NUT .625-32 ALUM
(Superseded to 06517300)

$7.99

$

Usually ships in 4-12 days

0

5

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

$

$

Not available

7

Ariens 06908800

THROTTLE CONTROL

Note: (10,11)

$

$

Not available

7

Ariens 06908700

THROTTLE CONTROL

Note: (12)

$59.99

$

Usually ships in 4-12 days

0

8

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

9

Ariens 06803100

RVT-POP.125 X .294 DOME

$

$

Not available

10

Ariens 01236500

DASH PANEL-FM

$

$

Not available

11

Ariens 07507600

PLASTIC GROMMET

$0.99

$

In Stock, Qty 10

0

12

Ariens 01223200

STEERING COLUMN

$

$

Not available

13

Ariens 06101400

SCR-MCH 10-24X.38 SLTOR PAN PL

$

$

Not available

14

Ariens 02601100

FRONT FENDER

$

$

Not available

15

Ariens 06504100

NUT-LK TOP 10-24 PL

$1.99

$

Usually ships in 4-12 days

0

16

Ariens 06508800

NUT-SPEED U-TY .312-18

$

$

Not available

17

Ariens 07503300

PLUG

$

$

Not available

18

Ariens 01207000

SEAT BRACKET

$

$

Not available

18

Ariens 01235400

SEAT BRACKET WELDMENT

$

$

Not available

19

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$1.49

$

In Stock, Qty 13

0

20

Ariens 01207900

SEAT SUPPORT WASHER

$

$

Not available

21

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

22

Ariens 05904200

BLT-HEX .50-13X1.25 PL GR2
(Superseded to 05958900)

$3.49

$

In Stock, only 1 left!

0

23

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 07507500

BATTERY STRAP

Note: (11,12)

$14.99

$

Usually ships in 4-12 days

0

25

Ariens 02515200

HOOK
(Superseded to 03640900)

Note: (11,12)

$38.99

$

Usually ships in 4-12 days

0

26

Ariens 02530700

RUBBER PAD

Note: (11,12)

$

$

Not available

27

Ariens 01223600

BATTERY RETAINER

Note: (11,12)

$

$

Not available

28

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

$

$

Not available

29

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06908300

CLIP

$

$

Not available

31

Ariens 07001100

SCR-SLTR-SERNK .25-20X.62 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 20+

0

32

Ariens 51202400

FRONT FRAME ASSEMBLY

$

$

Not available

33

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

$2.99

$

In Stock, Qty 20+

0

34

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 02601600

AXLE SUPPORT

$

$

Not available

36

Ariens 01222000

FRONT FRAME SUPPORT

$

$

Not available

37

Ariens 07401700

SCR-TAP .312-18X.75 HWH PL TR
(Superseded to 07414400)

$1.49

$

In Stock, Qty 11

0

38

Ariens 07008600

SCR-CAP BTHD.31-18X.875 GR5 PK

$

$

Not available

39

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

40

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

42

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

43

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

44

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

46

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

47

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

48

Ariens 01235200

REAR FRAME

$

$

Not available

49

Ariens 07508400

PLUG

$

$

Not available

50

Ariens 01237300

PLATE

$

$

Not available

51

Ariens 07403700

SCR-TAP 10-24X.50 CRSLPH PL 1A

$

$

Not available

52

Ariens 01234400

SPACER

Note: (12)

$

$

Not available

53

Ariens 06409900

WSHR-FL-STL .312X1.62X.13

$

$

Not available

54

Ariens 07010500

RVT-BURR .125X.505X.048

$5.49

$

In Stock, only 3 left!

0
