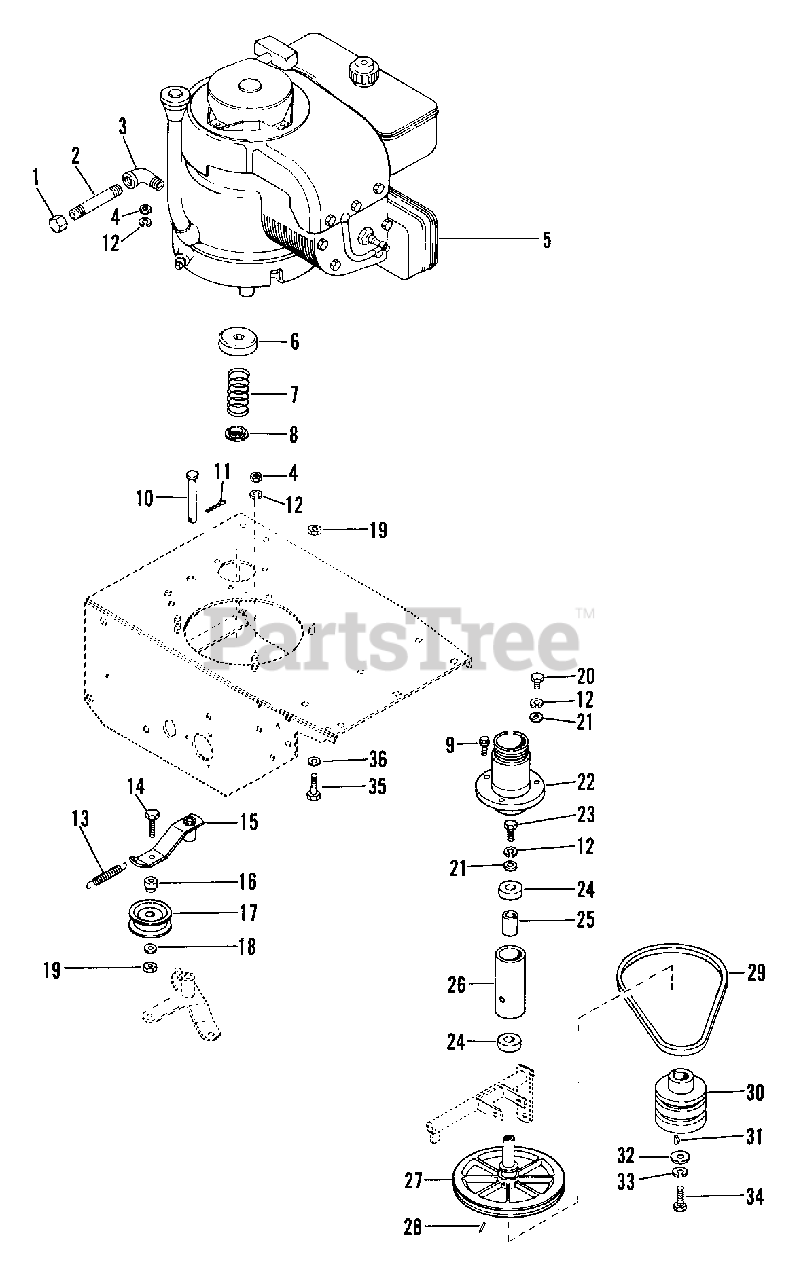

912010 - Ariens Fairway 26" Rear-Engine Rider, 6hp Tecumseh (SN: 000101 & Above) Engine And Traction Drive Parts Diagram

Fairway 26" Rear-Engine Rider, 6hp Tecumseh

Engine And Traction Drive Parts Diagram

  • Title

1

Ariens 02520800

HEX CAP

Note: (10,11)

$

$

Not available

1

Ariens 01237800

HEX PIPE CAP

Note: (12)

$

$

Not available

2

Ariens 01222200

NIPPLE

Note: (10,11)

$

$

Not available

2

Ariens 03409100

NIPPLE

Note: (12)

$

$

Not available

3

Ariens 01237700

90 STREET ELBOW

Note: (12)

$

$

Not available

4

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

5

Ariens 08221800

6HP TEC RECOIL

Note: (Used Only On Model(s): 912010)NO. TVM140-73089L.

$

$

Not available

5

Ariens 08221900

6HP TEC. ELEC

Note: (Used Only On Model(s): 912011)NO. TVM140-70388L.

$

$

Not available

5

Ariens 08226200

6 HP RECOIL TEC GROUND TO RUN

$

$

Not available

5

Ariens 08226300

6 HP ELEC TEC GROUND TO RUN

$

$

Not available

5

Ariens 08226400

8 HP ELEC TEC GROUND TO RUN

$

$

Not available

6

Ariens 01201300

CAP

$

$

Not available

7

Ariens 08305500

SG-COMP .148X1.23X2.53 WLD87

$

$

Not available

8

Ariens 01201400

SPRING RETAINER

$6.99

$

Usually ships in 4-12 days

0

9

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

10

Ariens 01215000

PIN-CLEVIS .500 X 3.250

$

$

Not available

11

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

12

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 08302600

SG-TENS .063X.44X2.81 WLD 18

$20.99

$

Usually ships in 4-12 days

0

14

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, Qty 12

0

15

Ariens 01214200

IDLER ARM

$5.99

$

Usually ships in 4-12 days

0

16

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 4 left!

0

17

Ariens 01213200

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

18

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.49

$

In Stock, Qty 13

0

21

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 01200600

DRIVE SPRING HOUSING

$

$

Not available

23

Ariens 07001400

BLT-LK .31-18X.75 GR 5

$

$

Not available

24

Ariens 05403900

BRG-BALL .625X1.375X.44
(Superseded to 05435100)

$14.99

$

In Stock, Qty 20+

0

25

Ariens 01210000

BEARING SPACER .87 X .63 X 1.2

$

$

Not available

26

Ariens 01201000

DRIVE SPINDLE HOUSING

$

$

Not available

27

Ariens 01231600

DRIVE DISK

$

$

Not available

28

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

29

Ariens 07204800

V-BELT, SAE 380-RAW EDGE

$20.99

$

Usually ships in 4-12 days

0

30

Ariens 01220400

ENGINE SHEAVE

$

$

Not available

30

Ariens 01234500

ENGINE SHEAVE

$

$

Not available

31

Ariens 06600900

KEY-WDRF .156X.625X.25 SAE 6

$2.49

$

In Stock, Qty 12

0

31

Ariens 06604300

KEY-SQ .25 X 1.50 X .25 SAE

$3.99

$

Usually ships in 4-12 days

0

32

Ariens 06402800

WSHR-FL-STL .438X1.125X.19

$

$

Not available

33

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

34

Ariens 05901700

BLT-HEX .38-24X1.25 BLKO GR5

$

$

Not available

35

Ariens 05913400

BLT-HEX .31-18X1.25 PL GR5
(Superseded to 05947500)

$2.49

$

In Stock, Qty 12

0

36

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0
