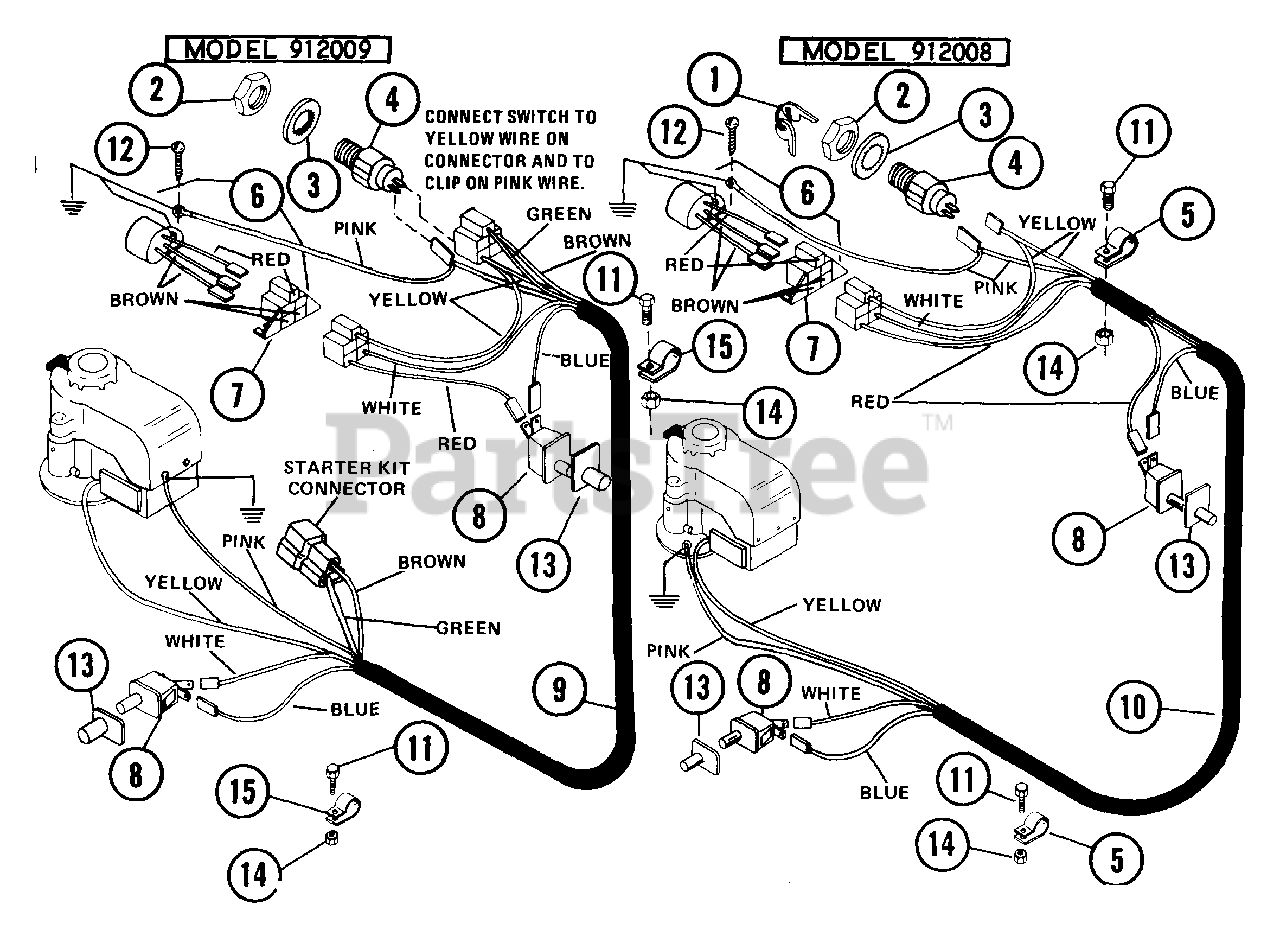

912009 - Ariens Fairway 26" Rear-Engine Rider, 7hp Tecumseh (SN: 008605 & Above) Electrical System Parts Diagram

Fairway 26" Rear-Engine Rider, 7hp Tecumseh

Electrical System Parts Diagram

  • Title

1

Ariens 01315700

KEYS
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

2

Ariens 06507500

NUT .625-32 ALUM
(Superseded to 06517300)

Note: (SPECIAL)

$7.99

$

Usually ships in 4-12 days

0

3

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

Note: (SPECIAL)

$3.99

$

Usually ships in 4-12 days

0

4

Ariens 01113400

KEY SWITCH
(Superseded to 52406900)

$39.99

$

Usually ships in 4-12 days

0

5

Ariens 06906600

CLIP

Note: (Used Only On Model(s): 008).

$

$

Not available

6

Ariens 52502600

MODULE T KIT

Note: (Includes 25203 Connector)

$

$

Not available

7

Ariens 02520300

CONNECTOR
(Superseded to 52401000)

$

$

Not available

8

Ariens 02517200

SWITCH

$41.99

$

Usually ships in 4-12 days

0

9

Ariens 01228700

WIRING HARNESS

Note: (Used Only On Model(s): 009).

$

$

Not available

10

Ariens 01229200

WIRING HARNESS

Note: (Used Only On Model(s): 008).

$

$

Not available

11

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

13

Ariens 07504500

SWITCH BOOT

$

$

Not available

14

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06908300

CLIP

Note: (Used Only On Model(s): 009).

$

$

Not available
