912008 - Ariens Fairway 26" Rear-Engine Rider, 5hp Tecumseh (SN: 003501 - 006667) Mower Pan Assembly 26" Parts Diagram

Fairway 26" Rear-Engine Rider, 5hp Tecumseh

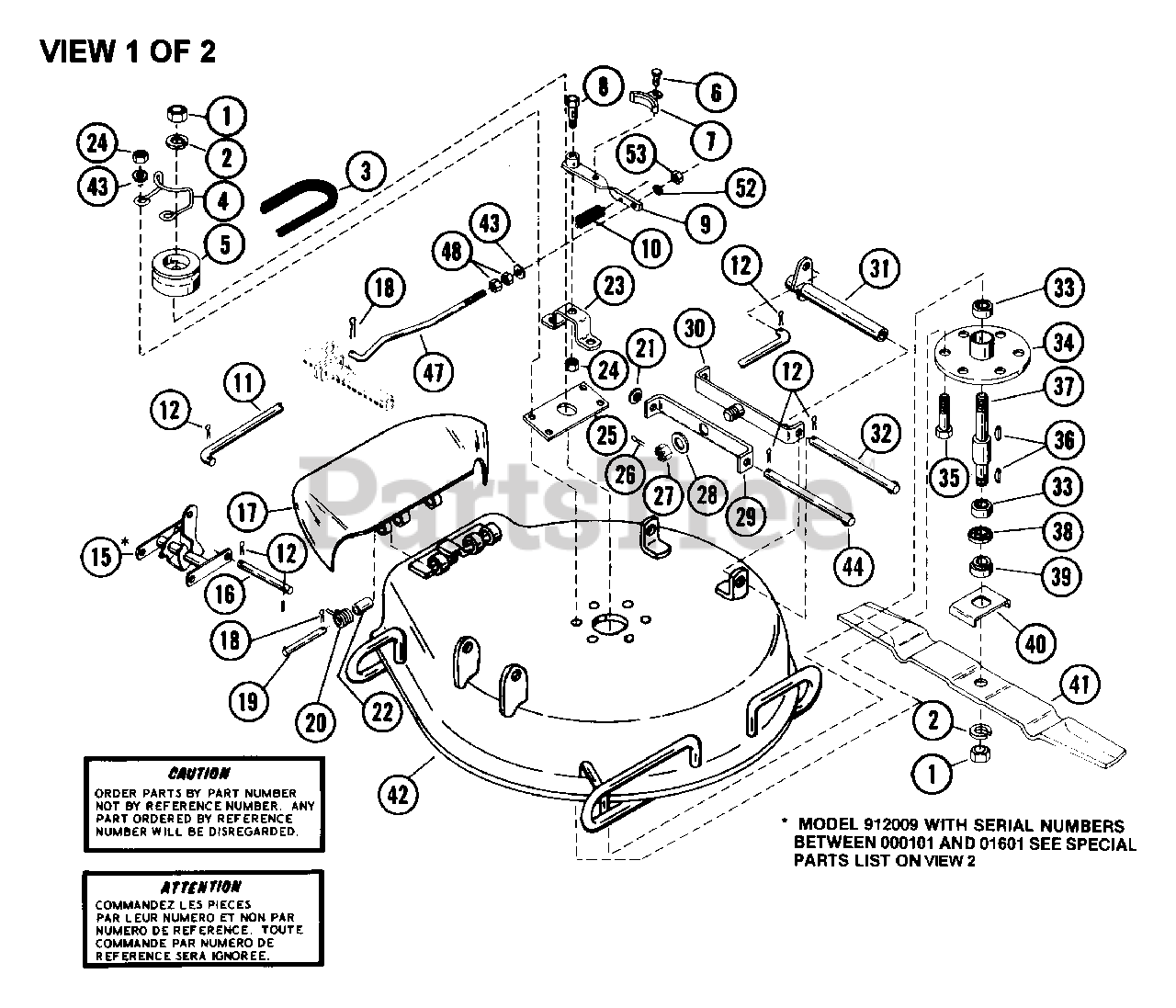

Mower Pan Assembly 26" Parts Diagram

  • Title

1

Ariens 06502500

NUT-JAM .75-10 PL
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

2

Ariens 06300800

WSHR-LK .750X.188 MED PL
(Superseded to 06310300)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 07202900

V-BELT, 5L-RAW EDGE

$48.99

$

Usually ships in 4-12 days

0

4

Ariens 01206100

MOWER BELT FINGER

$

$

Not available

5

Ariens 01202500

MOWER SHEAVE

$

$

Not available

6

Ariens 06801600

RVT .25X.50 RH ST

$

$

Not available

7

Ariens 01206300

BLADE BRAKE

$

$

Not available

8

Ariens 00301600

SHOULDER BOLT .50 X 1.75

$

$

Not available

9

Ariens 01229000

BRAKE ARM

$

$

Not available

10

Ariens 08301000

SG-TENS .072X.51X5.31 WLD 25

$9.49

$

Usually ships in 4-12 days

0

11

Ariens 01221400

HEIGHT LINK ROD

$

$

Not available

12

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

15

Ariens 01229300

PAN HEIGHT BRACKET

$

$

Not available

16

Ariens 02607800

ADAPTER PIN

$

$

Not available

17

Ariens 02520400

PAN CHUTE EXTENSION

$111.99

$

Usually ships in 4-12 days

0

18

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

19

Ariens 02520500

CLEVIS PIN
(Superseded to 03624200)

$51.99

$

In Stock, only 1 left!

0

20

Ariens 08307200

SG-TORS .095X.50X 1.0

$20.99

$

Usually ships in 4-12 days

0

21

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 02202900

BSHG-SLV .334 X .502 X 1.437

$5.99

$

In Stock, only 4 left!

0

23

Ariens 01206200

BLADE BRAKE SUPPORT

$

$

Not available

24

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 00311700

PLATE

$

$

Not available

26

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06504900

NUT-JAM-SL .625-18

$

$

Not available

28

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 01211400

CLEVIS

$

$

Not available

30

Ariens 01211500

CLEVIS

$

$

Not available

31

Ariens 01211600

REAR RAISING BRACKET

$

$

Not available

32

Ariens 01205900

REAR BRACKET PIN

$

$

Not available

33

Ariens 05407300

BRG-BALL .751X1.78X.61
(Superseded to 05412000)

$13.99

$

In Stock, Qty 7

0

34

Ariens 00317200

SPINDLE HOUSING

$

$

Not available

35

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 11

0

37

Ariens 00312700

MOWER SPINDLE

$68.99

$

Usually ships in 4-12 days

0

38

Ariens 00341900

BEARING SLINGER

$22.99

$

In Stock, only 2 left!

0

39

Ariens 00316900

RETAINER HUB

$

$

Not available

40

Ariens 00317000

BLADE TRAY

$30.99

$

Usually ships in 4-12 days

0

41

Ariens 00316500

BLADE, MOWER

$67.99

$

In Stock, only 2 left!

0

42

Ariens 51200600

MOWER PAN ASSEMBLY
(Superseded to 51202300)

Note: (Includes Decal)

$

$

Not available

43

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

44

Ariens 01206700

HANGER PIN

$

$

Not available

47

Ariens 01224200

BLADE BRAKE ROD

$

$

Not available

48

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

52

Ariens 07504400

GROMMET

$

$

Not available

53

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

107

Ariens 01228000

PAN HEIGHT BRACKET
(Superseded to 01229300)

Note: (Used Only On Model(s): 009).

$

$

Not available
