912007 - Ariens Fairway 26" Rear-Engine Rider, 5hp Tecumseh (SN: 002300 & Above) Electrical System Parts Diagram

Fairway 26" Rear-Engine Rider, 5hp Tecumseh

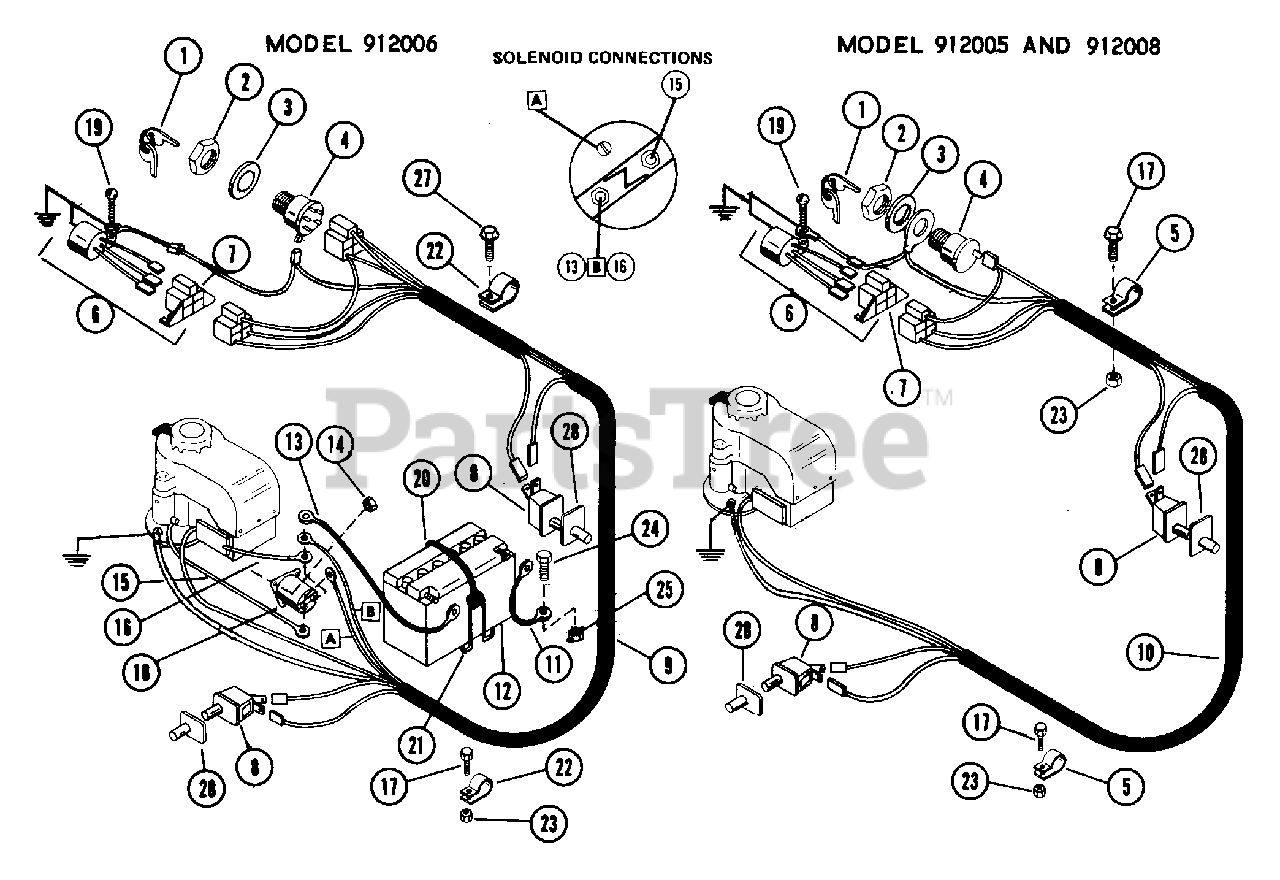

Electrical System Parts Diagram

  • Title

1

Ariens 01315700

KEYS
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

2

Ariens 06507500

NUT .625-32 ALUM
(Superseded to 06517300)

Note: (SPECIAL)

$7.99

$

Usually ships in 4-12 days

0

3

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

Note: (SPECIAL)

$3.99

$

Usually ships in 4-12 days

0

4

Ariens 62500900

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

Note: (Used Only On Model(s): 006).

$56.99

$

In Stock, Qty 6

0

4

Ariens 62501100

KEY SWITCH ASSEMBLY
(Superseded to 52503900)

Note: (Used Only On Model(s): 005,008).

$

$

Not available

5

Ariens 06906600

CLIP

Note: (Used Only On Model(s): 005,008).

$

$

Not available

6

Ariens 52502600

MODULE T KIT

Note: (Includes 25203 Connector)

$

$

Not available

7

Ariens 02520300

CONNECTOR
(Superseded to 52401000)

$

$

Not available

8

Ariens 01227800

WIRING HARNESS-RECOIL

$

$

Not available

9

Ariens 01227900

WIRING HARNESS-ELECTRIC

Note: (Used Only On Model(s): 006).

$

$

Not available

10

Ariens 01227800

WIRING HARNESS-RECOIL

Note: (Used Only On Model(s): 005,008).

$

$

Not available

11

Ariens 00332300

GROUND CABLE

Note: (GROUND) (Used Only On Model(s): 006).

$

$

Not available

12

Ariens 02512900

BATTERY
(Superseded to 52708000)

Note: (Used Only On Model(s): 006).

$

$

Not available

13

Ariens 02304100

BATTERY CABLE
(Superseded to 02742000)

Note: (POSITIVE) (Used Only On Model(s): 006).

$

$

Not available

14

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

Note: (Used Only On Model(s): 006).

$0.99

$

In Stock, Qty 20+

0

15

Ariens 02513300

GROUND CABLE

Note: (Used Only On Model(s): 006).

$

$

Not available

16

Ariens 02514000

CHARGING WIRE

Note: (Used Only On Model(s): 006).

$

$

Not available

17

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 02913200

SOLENOID,STARTER SWITCH
(Superseded to 53504000)

Note: (Used Only On Model(s): 006).

$73.99

$

In Stock, only 1 left!

0

19

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

$

$

Not available

20

Ariens 07507500

BATTERY STRAP

Note: (Used Only On Model(s): 006).

$14.99

$

Usually ships in 4-12 days

0

21

Ariens 02515200

HOOK
(Superseded to 03640900)

Note: (Used Only On Model(s): 006).

$38.99

$

Usually ships in 4-12 days

0

22

Ariens 06906700

CLIP

Note: (Used Only On Model(s): 006).

$

$

Not available

23

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 05908000

BLT-HEX .25-20X.63 PL GR2
(Superseded to 05932000)

Note: (Used Only On Model(s): 006).

$1.99

$

In Stock, only 1 left!

0

25

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

Note: (Used Only On Model(s): 006).

$0.99

$

In Stock, Qty 20+

0

27

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

Note: (Used Only On Model(s): 006).

$2.99

$

Usually ships in 4-12 days

0

28

Ariens 07504500

SWITCH BOOT

$

$

Not available
