912005 - Ariens Fairway 26" Rear-Engine Rider, 7hp Tecumseh (SN: 013140 & Above) Steering & Front Wheels Assembly Parts Diagram

Fairway 26" Rear-Engine Rider, 7hp Tecumseh

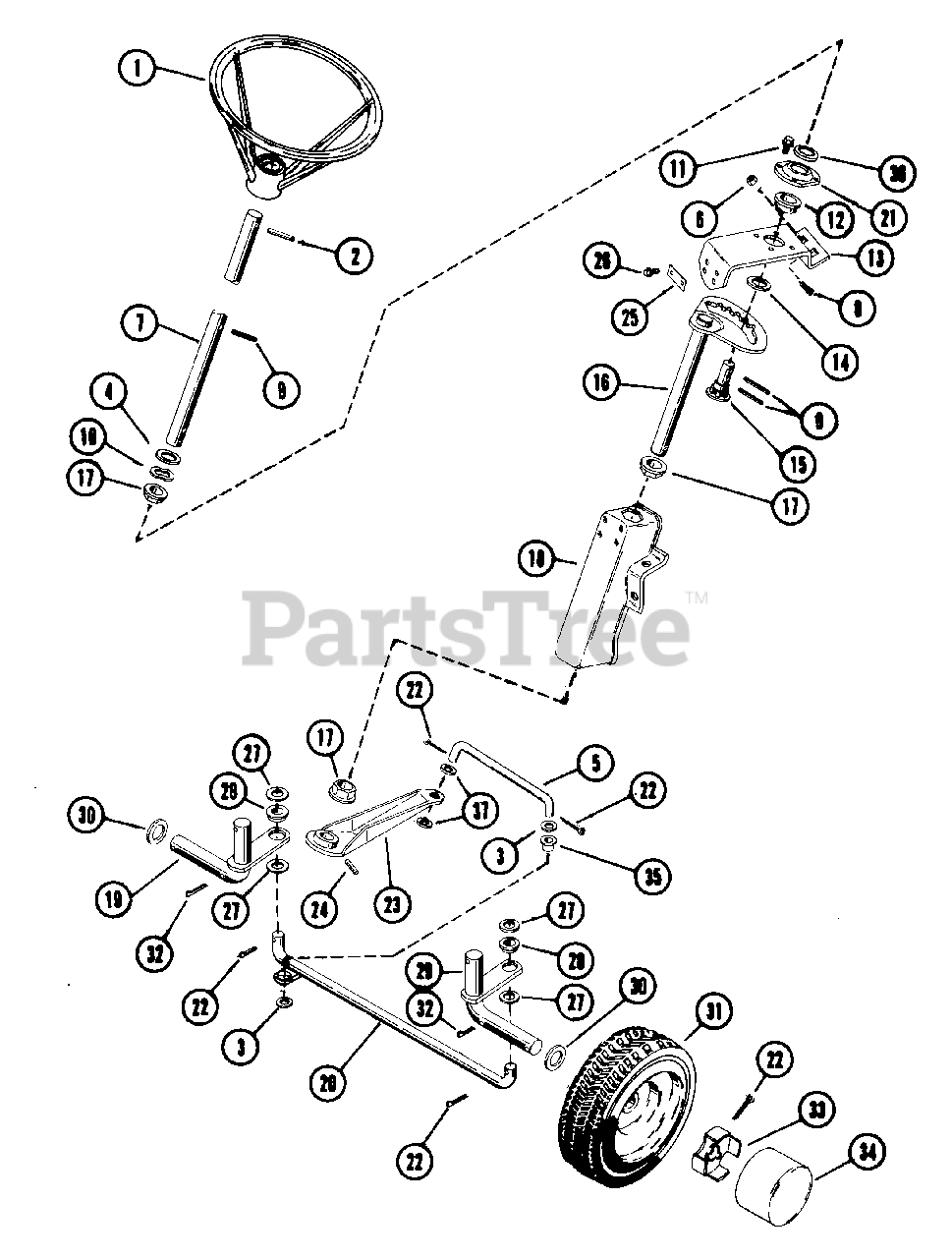

Steering & Front Wheels Assembly Parts Diagram

  • Title

1

Ariens 02512400

STEERING WHEEL
(Superseded to 02713600)

$

$

Not available

2

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

3

Ariens 06405200

WSHR-FL-STL .382X.812X.023 PL
(Superseded to 06436500)

$2.49

$

In Stock, only 2 left!

0

4

Ariens 06404800

WSHR-FL-STL .755X1.375X.062 PL
(Superseded to 06441500)

$3.99

$

In Stock, Qty 13

0

5

Ariens 01222800

STEERING LINK

$

$

Not available

6

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 01222600

STEERING SHAFT

$

$

Not available

8

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

$2.99

$

In Stock, Qty 20+

0

9

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

10

Ariens 00332800

SPRING WASHER

$

$

Not available

11

Ariens 07402100

SCR-TAP 10-24X.25 CRSLPH PL 1A
(Superseded to 07415500)

$

$

Not available

12

Ariens 05505300

BSHG-FLG .625X1.156X.375 SI

$5.99

$

Usually ships in 4-12 days

0

13

Ariens 02603600

STEERING SUPPORT

$

$

Not available

14

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 02506400

STEERING PINION

$

$

Not available

16

Ariens 02603700

STEERING GEAR

$

$

Not available

17

Ariens 01212800

FLANGE BUSHING

$6.49

$

Usually ships in 4-12 days

0

18

Ariens 02603800

DEEP DRAW STEERING BOXES

$

$

Not available

19

Ariens 01210300

R H WHEEL SPINDLE

$

$

Not available

20

Ariens 01210500

TIE ROD

$

$

Not available

21

Ariens 01310000

RETAINING PLATE

$51.99

$

Usually ships in 4-12 days

0

22

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

23

Ariens 02603900

STEERING ARM

$

$

Not available

24

Ariens 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, only 4 left!

0

25

Ariens 02607500

SHIM

$

$

Not available

26

Ariens 07002700

BLT-SERHFWH .31-18X.75 PL

$

$

Not available

27

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

$2.49

$

In Stock, only 2 left!

0

28

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$0.99

$

In Stock, Qty 17

0

29

Ariens 01210200

L H WHEEL SPINDLE
(Superseded to 02735400)

$104.99

$

Usually ships in 4-12 days

0

30

Ariens 02512000

SPINDLE WASHER

$38.99

$

In Stock, only 3 left!

0

31

Ariens 61200500

FRONT WHEEL ASSEMBLY
(Superseded to 07126400)

$68.99

$

In Stock, only 2 left!

0

31

Ariens 07108000

TIRE 4.10/3.50-4

$28.99

$

In Stock, Qty 9

0

31

Ariens 07108500

TUBE

$17.99

$

Usually ships in 4-12 days

0

31

Ariens 07108300

WHL
(Superseded to 52703100)

$79.99

$

Usually ships in 4-12 days

0

31

Ariens 01215200

ZERK FITTING

$3.99

$

Usually ships in 4-12 days

0

31

Ariens 05505800

BSHG-FLG .750X1.380X.750X1.557

$7.49

$

In Stock, Qty 7

0

32

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 00337600

SPINDLE CUP
(Superseded to 01238200)

$

$

Not available

34

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

35

Ariens 05503600

BSHG-FLG .372X.500X.312X.625NY

$1.49

$

In Stock, Qty 20+

0

36

Ariens 01222500

PUSH NUT, .50

$

$

Not available

37

Ariens 06407300

WSHR-FL-STL .406X.865X.094 PL

$

$

Not available
