912005 - Ariens Fairway 26" Rear-Engine Rider, 7hp Tecumseh (SN: 000101 - 006399) Drive Assembly Parts Diagram

Fairway 26" Rear-Engine Rider, 7hp Tecumseh

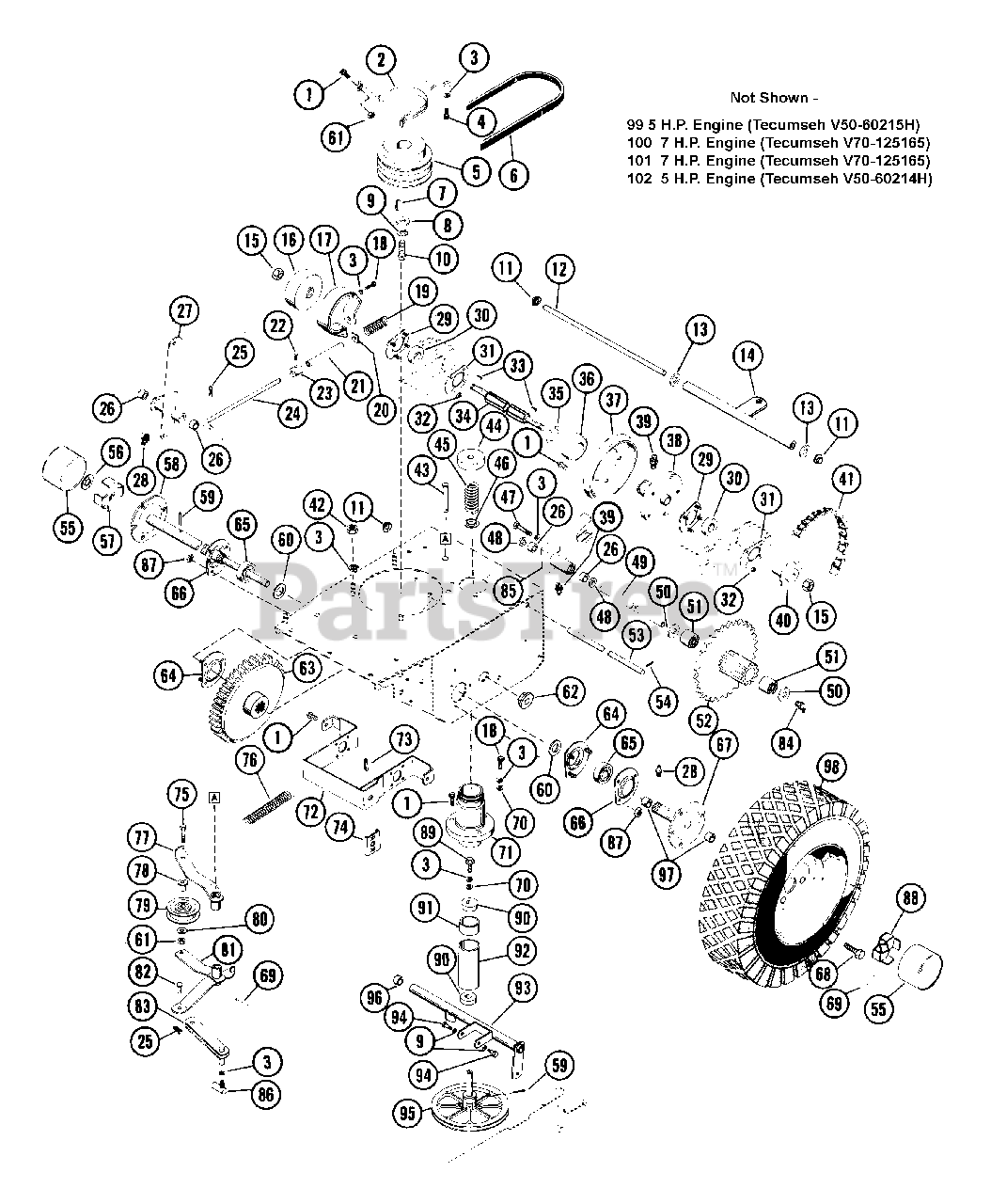

Drive Assembly Parts Diagram

  • Title

1

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

2

Ariens 01214700

REAR BELT FINGER

$

$

Not available

3

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 01220400

ENGINE SHEAVE

$

$

Not available

6

Ariens 07204800

V-BELT, SAE 380-RAW EDGE

$20.99

$

Usually ships in 4-12 days

0

7

Ariens 06600900

KEY-WDRF .156X.625X.25 SAE 6

$2.49

$

In Stock, Qty 12

0

8

Ariens 06402800

WSHR-FL-STL .438X1.125X.19

$

$

Not available

9

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

10

Ariens 05901700

BLT-HEX .38-24X1.25 BLKO GR5

$

$

Not available

11

Ariens 01208600

CAP, .50 ROD YWZC

Note: (Used Only On Model(s): 004,007).

$2.99

$

Usually ships in 4-12 days

0

11

Ariens 01208600

CAP, .50 ROD YWZC

Note: (Used Only On Model(s): 005,006).

$2.99

$

Usually ships in 4-12 days

0

12

Ariens 00315900

HITCH SHAFT

Note: (Used Only On Model(s): 005,006).

$

$

Not available

13

Ariens 00325400

WAVE WASHER .531X.781X.125FH

Note: (Used Only On Model(s): 005,006).

$0.99

$

In Stock, Qty 20+

0

14

Ariens 00325200

HITCH

Note: (Used Only On Model(s): 005,006).

$

$

Not available

15

Ariens 06505400

NUT-LK-CTR .50-20 PL
(Superseded to 06530000)

$2.49

$

Usually ships in 4-12 days

0

16

Ariens 01202600

BRAKE DRUM

$

$

Not available

17

Ariens 01203300

BRAKE BAND

$

$

Not available

18

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.49

$

In Stock, Qty 13

0

19

Ariens 08309100

SG-COMP .102X.85X1.031

$

$

Not available

20

Ariens 01207400

BRAKE BAND WASHER

$

$

Not available

21

Ariens 01219600

BRAKE SPACER .5 X .4 X 2.63

$

$

Not available

22

Ariens 06001800

SCR-SET .25-20X.50 SQHCUP HT

$

$

Not available

23

Ariens 00307400

SET COLLAR

$

$

Not available

24

Ariens 01203200

BRAKE ROD

$

$

Not available

25

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

26

Ariens 05504700

BSHG-SLV .625X.750X.500 BR

$11.99

$

In Stock, only 1 left!

0

27

Ariens 51200300

CLUTCH BRAKE BELL CRANK

Note: (Includes Bushings,Zerk)

$

$

Not available

28

Ariens 01035400

HYDRAULIC DRIVE FITTING

$5.99

$

In Stock, Qty 11

0

29

Ariens 00308500

BEARING FLANGE

$22.99

$

In Stock, only 1 left!

0

30

Ariens 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 20+

0

31

Ariens 00303100

BEARING FLANGE
(Superseded to 02414100)

$18.99

$

In Stock, only 1 left!

0

32

Ariens 06505100

NUT-KEPS 10-24 PL
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

33

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.49

$

In Stock, only 1 left!

0

34

Ariens 01202900

HEX SHAFT

$32.99

$

Usually ships in 4-12 days

0

35

Ariens 05704300

RG-RTNG-EXT 1.250X.050

$3.99

$

In Stock, only 3 left!

0

36

Ariens 05408300

BRG-BALL 1.25X2.18X.63

$

$

Not available

37

Ariens 00300300

FRICTION DISC
(Superseded to 09475300)

$35.99

$

In Stock, Qty 20+

0

38

Ariens 01218300

HUB

$

$

Not available

39

Ariens 01215200

ZERK FITTING

$3.99

$

Usually ships in 4-12 days

0

40

Ariens 01027600

9 TOOTH SPROCKET

$41.99

$

Usually ships in 4-12 days

0

41

Ariens 01207800

CHAIN
(Superseded to 02477700)

$14.99

$

In Stock, Qty 8

0

42

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

43

Ariens 01215000

PIN-CLEVIS .500 X 3.250

$

$

Not available

44

Ariens 01201300

CAP

$

$

Not available

45

Ariens 08305500

SG-COMP .148X1.23X2.53 WLD87

$

$

Not available

46

Ariens 01201400

SPRING RETAINER

$6.99

$

Usually ships in 4-12 days

0

47

Ariens 05903600

BLT-HEX .31-24X.50 GR5
(Superseded to 05962700)

$

$

Not available

48

Ariens 05603400

SEAL .625X.875X.125

$9.99

$

Usually ships in 4-12 days

0

49

Ariens 01218100

CARRIER SHAFT

$

$

Not available

50

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

51

Ariens 05403800

BRG-NEEDLE .625X.812X.50

$23.99

$

Usually ships in 4-12 days

0

52

Ariens 61201600

PINION ASSEMBLY
(Superseded to 51202900)

Note: (Includes Bearings)

$

$

Not available

53

Ariens 01203900

DISC FORK ROD

$5.99

$

Usually ships in 4-12 days

0

54

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

55

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

56

Ariens 01036600

PUSHNUT

$5.99

$

Usually ships in 4-12 days

0

57

Ariens 00337600

SPINDLE CUP
(Superseded to 01238200)

$

$

Not available

58

Ariens 01221500

R H AXLE SHAFT
(Superseded to 51201100)

$

$

Not available

59

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

60

Ariens 06403600

WSHR-FL-STL .880X1.380X.062

$6.99

$

Usually ships in 4-12 days

0

61

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

62

Ariens 01212900

FLANGE BUSHING

$

$

Not available

63

Ariens 61299900

DIFFERENTIAL ASSEMBLY
(Superseded to 51202000)

$

$

Not available

64

Ariens 00301700

BEARING FLANGE

$17.99

$

In Stock, Qty 17

0

65

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

$34.99

$

Usually ships in 4-12 days

0

66

Ariens 01014200

BEARING FLANGE

$5.99

$

In Stock, Qty 20+

0

67

Ariens 61200700

L H AXLE ASSEMBLY
(Superseded to 51201600)

Note: (Includes Bushings, Zerk)

$

$

Not available

68

Ariens 07003200

BLT-WHL .50-20X.75 GR5 PL
(Superseded to 07416900)

$13.99

$

In Stock, only 3 left!

0

69

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

70

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

71

Ariens 01200600

DRIVE SPRING HOUSING

$

$

Not available

72

Ariens 01202700

CARRIER

$

$

Not available

73

Ariens 05803000

PIN-ROLL .188X1.50

$0.99

$

In Stock, Qty 20+

0

74

Ariens 01218000

LOCATING PLATE

$

$

Not available

75

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, Qty 12

0

76

Ariens 08302600

SG-TENS .063X.44X2.81 WLD 18

$20.99

$

Usually ships in 4-12 days

0

77

Ariens 01214200

IDLER ARM

$5.99

$

Usually ships in 4-12 days

0

78

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 4 left!

0

79

Ariens 01213200

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

80

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

81

Ariens 01209400

SHIFT TRANSFER LEVER

$

$

Not available

82

Ariens 01215100

CLEVIS PIN

$

$

Not available

83

Ariens 01209600

SHIFT LINK

$

$

Not available

84

Ariens 01213600

FRAME CHANNEL
(Superseded to 01208200)

$

$

Not available

85

Ariens 61201700

SLIDING FORK ASSEMBLY
(Superseded to 51201700)

Note: (Includes Bushings, Seals &Zerk)

$

$

Not available

86

Ariens 00308600

BALL JOINT
(Superseded to 04110300)

$15.99

$

Usually ships in 4-12 days

0

87

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

88

Ariens 01219000

SPINDLE CUP

$

$

Not available

89

Ariens 07001400

BLT-LK .31-18X.75 GR 5

$

$

Not available

90

Ariens 05403900

BRG-BALL .625X1.375X.44
(Superseded to 05435100)

$14.99

$

In Stock, Qty 20+

0

91

Ariens 01210000

BEARING SPACER .87 X .63 X 1.2

$

$

Not available

92

Ariens 01201000

DRIVE SPINDLE HOUSING

$

$

Not available

93

Ariens 01219900

DISK FORK

$

$

Not available

94

Ariens 01052200

SCREW PIN

$3.49

$

Usually ships in 4-12 days

0

95

Ariens 61200300

DRIVE DISK ASSEMBLY
(Superseded to 01231600)

Note: (Includes Roll Pin)

$

$

Not available

96

Ariens 01013200

FORK SPACER

$

$

Not available

97

Ariens 05502900

BSHG-SLV .562X.625X.625 BRZ

$13.99

$

In Stock, Qty 11

0

97

Ariens 61200200

TIRE & WHEEL ASSEMBLY
(Superseded to 07116500)

Note: (Used Only On Model(s): 004,007).

$

$

Not available

97

Ariens 07105200

WHL 6 IN O.D.
(Superseded to 07103800)

Note: (Used Only On Model(s): 004,007).

$

$

Not available

97

Ariens 07108100

TIRE 6 X 4.10/3.50

Note: (Used Only On Model(s): 004,007).

$

$

Not available

97

Ariens 07105000

TUBE

Note: (Used Only On Model(s): 004,007).

$11.99

$

Usually ships in 4-12 days

0

98

Ariens 61200600

TURF SAVER TIRE & WHEEL ASSEMB
(Superseded to 07116800)

Note: (Used Only On Model(s): 005,006).

$

$

Not available

98

Ariens 07109000

TIRE 13/6.50 X 6

Note: (Used Only On Model(s): 005,006).

$

$

Not available

98

Ariens 07109100

WHL

Note: (Used Only On Model(s): 005,006).

$

$

Not available

98

Ariens 07108900

TUBE

Note: (Used Only On Model(s): 005,006).

$

$

Not available

99

5 H.P. Engine(Tecumseh V50-60215H) orreplacement

Note: (Used Only On Model(s): 004).

$

$

Not available

100

7 H.P. Engine(Tecumseh V70-125165) orreplacement

Note: (Used Only On Model(s): 005).

$

$

Not available

101

7 H.P. Engine(Tecumseh V70-125156) orreplacement

Note: (Used Only On Model(s): 006).

$

$

Not available

102

5 H.P. Engine(Tecumseh V50-60214H) orreplacement

Note: (Used Only On Model(s): 007).

$

$

Not available
