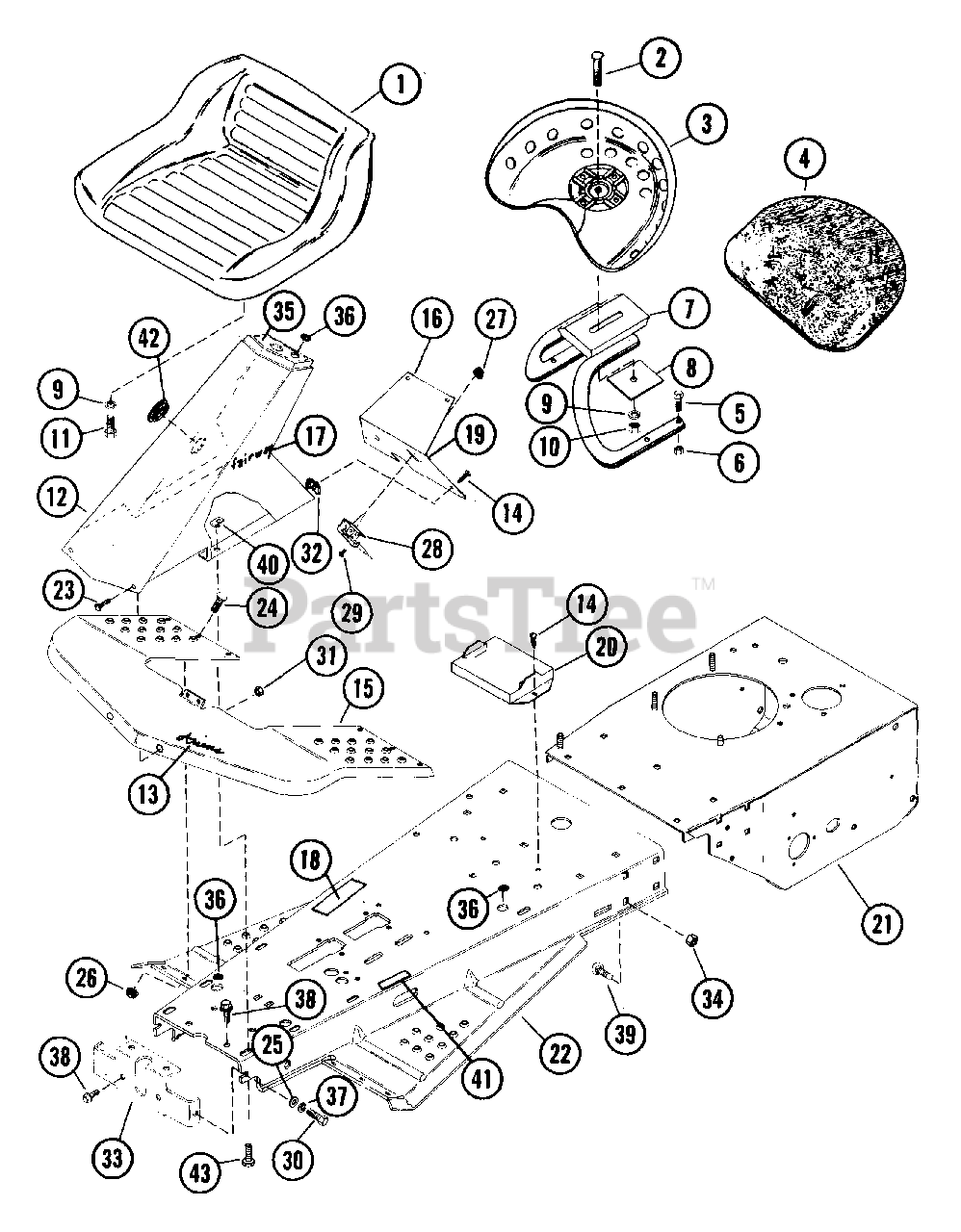

912004 - Ariens Fairway 26" Rear-Engine Rider, 5hp Tecumseh (SN: 000101 - 008999) Frame Assembly Parts Diagram

Fairway 26" Rear-Engine Rider, 5hp Tecumseh

Frame Assembly Parts Diagram

  • Title

1

Ariens 00337500

SEAT
(Superseded to 01231500)

Note: (Used Only On Model(s): 005,006).

$

$

Not available

2

Ariens 06201400

BLT-RDHDSQNK .50-13X1.25 PL
(Superseded to 06224700)

Note: (Used Only On Model(s): 004,007).

$5.99

$

Usually ships in 4-12 days

0

3

Ariens 01208300

SEAT
(Superseded to 08574053)

Note: (Used Only On Model(s): 004,007).

$

$

Not available

4

Ariens 01217500

SEAT COVER

Note: (Used Only On Model(s): 004,007).

$

$

Not available

5

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$1.49

$

In Stock, Qty 13

0

6

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 01218900

SEAT BRACKET
(Superseded to 01207000)

$

$

Not available

8

Ariens 01207900

SEAT SUPPORT WASHER

$

$

Not available

9

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

10

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

Note: (Used Only On Model(s): 004,007).

$3.99

$

In Stock, only 1 left!

0

11

Ariens 05904200

BLT-HEX .50-13X1.25 PL GR2
(Superseded to 05958900)

Note: (Used Only On Model(s): 005,006).

$3.49

$

In Stock, only 1 left!

0

12

Ariens 01223200

STEERING COLUMN

$

$

Not available

13

Ariens 07817400

ARIENS NAME PLATE

$

$

Not available

14

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

Note: (Used Only On Model(s): 004,005).

$

$

Not available

14

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

Note: (Used Only On Model(s): 006,007).

$

$

Not available

15

Ariens 02601100

FRONT FENDER

$

$

Not available

16

Ariens 51200500

DASH PANEL ASSEMBLY

Note: (Includes Decal)

$

$

Not available

17

Ariens 07819500

FAIRWAY NAME PLATE

$

$

Not available

18

Ariens 07820600

CAUTION DECAL
(Superseded to 07859800)

$

$

Not available

19

Ariens 07823300

DASH DECAL

Note: (Used Only On Model(s): 006,007).

$

$

Not available

19

Ariens 07823200

DASH DECAL

Note: (Used Only On Model(s): 004,005).

$

$

Not available

Ariens 07817200

ENGINE LABEL
(Superseded to 07855800)

Note: (on engine)

$

$

Not available

20

Ariens 01223600

BATTERY RETAINER

Note: (Used Only On Model(s): 006,007).

$

$

Not available

21

Ariens 01220300

REAR FRAME
(Superseded to 01229900)

$

$

Not available

22

Ariens 51200400

FRONT FRAME ASSEMBLY
(Superseded to 51202400)

Note: (Includes Decal)

$

$

Not available

23

Ariens 06101400

SCR-MCH 10-24X.38 SLTOR PAN PL

$

$

Not available

24

Ariens 07001100

SCR-SLTR-SERNK .25-20X.62 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 20+

0

25

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 07501900

KNOB

$

$

Not available

28

Ariens 06908800

THROTTLE CONTROL

$

$

Not available

29

Ariens 06803100

RVT-POP.125 X .294 DOME

$

$

Not available

30

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06505100

NUT-KEPS 10-24 PL
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

32

Ariens 06508900

NUT-SPEED U TYPE 10A

$

$

Not available

33

Ariens 01222000

FRONT FRAME SUPPORT

$

$

Not available

34

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 07821000

PARKING BRAKE DECAL

$

$

Not available

36

Ariens 07502600

GROMMET, .31 ID

$

$

Not available

37

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

38

Ariens 07001400

BLT-LK .31-18X.75 GR 5

$

$

Not available

39

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

40

Ariens 06508800

NUT-SPEED U-TY .312-18

$

$

Not available

41

Ariens 07800300

MOWER IN-OUT LABEL

$

$

Not available

42

Ariens 07504000

BUTTON PLUG 1.0

$3.49

$

In Stock, only 1 left!

0

43

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.49

$

In Stock, Qty 13

0

Ariens 07819200

7 HP ENGINE DECAL
(Superseded to 07863700)

Note: (Used Only On Model(s): 005,006).

$

$

Not available

Ariens 07819300

5 HP ENGINE DECAL
(Superseded to 07861100)

Note: (Used Only On Model(s): 004,007).

$

$

Not available
