912-8 PE (9007913) - Simplicity Baker Chipper Shredder 912 Electric Service Parts Parts Diagram

Baker Chipper Shredder

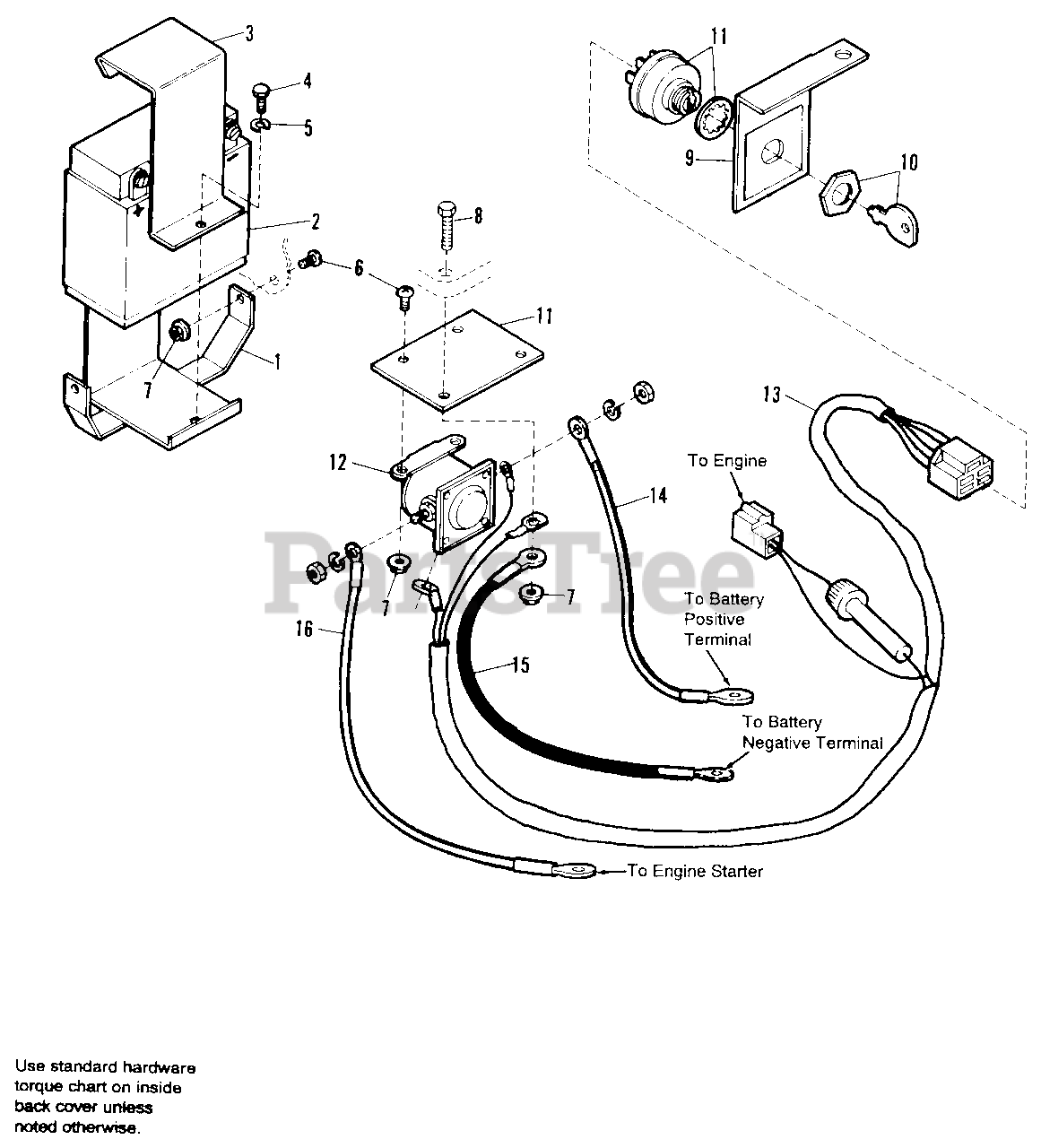

912 Electric Service Parts Parts Diagram

  • Title

1

Simplicity 1729242SM

RACK, Battery

$47.99

$

Usually ships in 2-12 days

0

2

Simplicity 8012912

Battery , 12 Volt

$

$

Not available

3

Simplicity 1729245SM

TIE DOWN, Battery

$

$

Not available

4

Simplicity 1921960SM

CAPSCREW, Hex, 1/4-20 x 1

$3.49

$

In Stock, only 1 left!

0

5

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

6

Simplicity 1926025SM

SCREW, Round.Hd., Phillips, 1/4-20 x 1/2

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 1960294SM

NUT, Flange, Whiz Lock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

8

Simplicity 1922837SM

CAPSCREW, Hex Hd., 1/4-20 x 1-1/2
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

9

Simplicity 1729243SM

Bracket, Switch

$11.99

$

Usually ships in 2-12 days

0

10

Simplicity 2178280SM

SWITCH
(Superseded to 421064MA)

$32.99

$

In Stock, Qty 9

0

11

Simplicity 8011912

BRACKET, Solenoid

$

$

Not available

12

Simplicity 1729256SM

SOLENOID

$

$

Not available

13

Simplicity 1729253SM

WIRE HARNESS ASSY.

$61.99

$

Usually ships in 2-12 days

0

14

Simplicity 1729247SM

CABLE, Positive-to-Solenoid, Red, "7"

$

$

Not available

15

Simplicity 1729249SM

CABLE, Negative-to-Ground, Black, 9"

$5.49

$

Usually ships in 2-12 days

0

16

Simplicity 1729251SM

CABLE, Solenoid-to-Starter, Red, 14"

$

$

Not available
