911707 - Ariens 24" Pro-24 High Wheel Self-Propelled Brush Cutter, Briggs & Stratton (SN: 000101 - 004199) Idler And Rocker Arm Parts Diagram

24" Pro-24 High Wheel Self-Propelled Brush Cutter, Briggs & Stratton

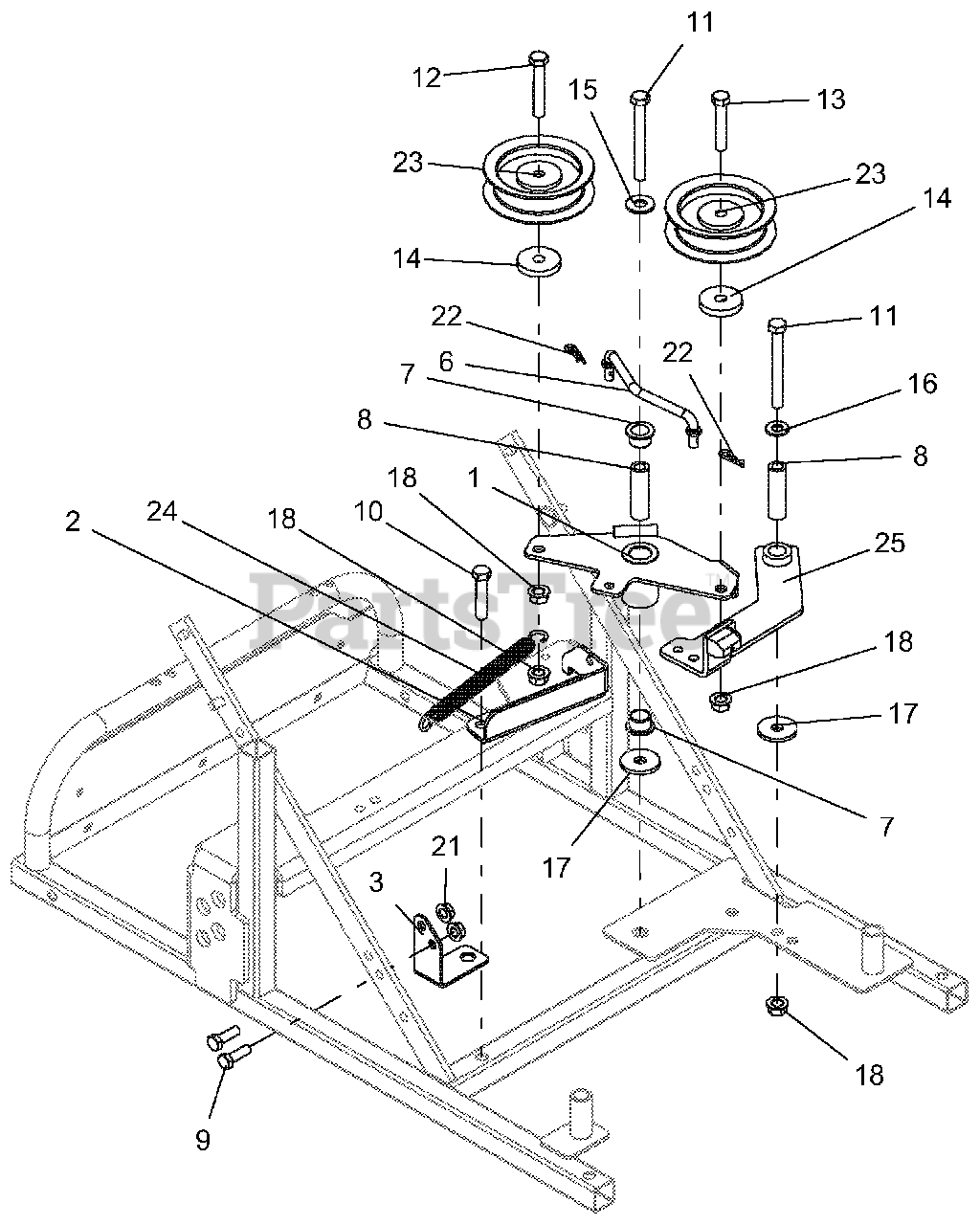

Idler And Rocker Arm Parts Diagram

  • Title

1

Ariens 04166851

WMT, IDLER ROCKER TM-26

Note: (BLACK)

$

$

Not available

2

Ariens 04310251

MOUNT, LOWER PTO CABLE

Note: (BLACK)

$5.99

$

In Stock, only 1 left!

0

3

Ariens 04313551

MOUNT, HWM PTO IDLER SPRING

Note: (BLACK)

$

$

Not available

6

Ariens 04323400

ROD, SPINDLE BRAKE

$

$

Not available

7

Ariens 05500907

BSHG-FLG, .625X.750X.500X1.00

$5.99

$

In Stock, Qty 20+

0

8

Ariens 05501002

BSHG-SLV .375X.625X2.03

$

$

Not available

9

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05961100

@BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

12

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

13

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

14

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

15

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

18

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 07336700

FLAT IDLER, STENS 280-671

$28.99

$

Usually ships in 4-12 days

0

24

Ariens 08300512

SPRING, EXTENSION

$17.99

$

In Stock, Qty 20+

0

25

Ariens 51119200

KIT, BRAKE ARM ASSY, HWM

$

$

Not available
