911707 - Ariens 24" Pro-24 High Wheel Self-Propelled Brush Cutter, Briggs & Stratton (SN: 000101 - 004199) Handlebars Parts Diagram

24" Pro-24 High Wheel Self-Propelled Brush Cutter, Briggs & Stratton

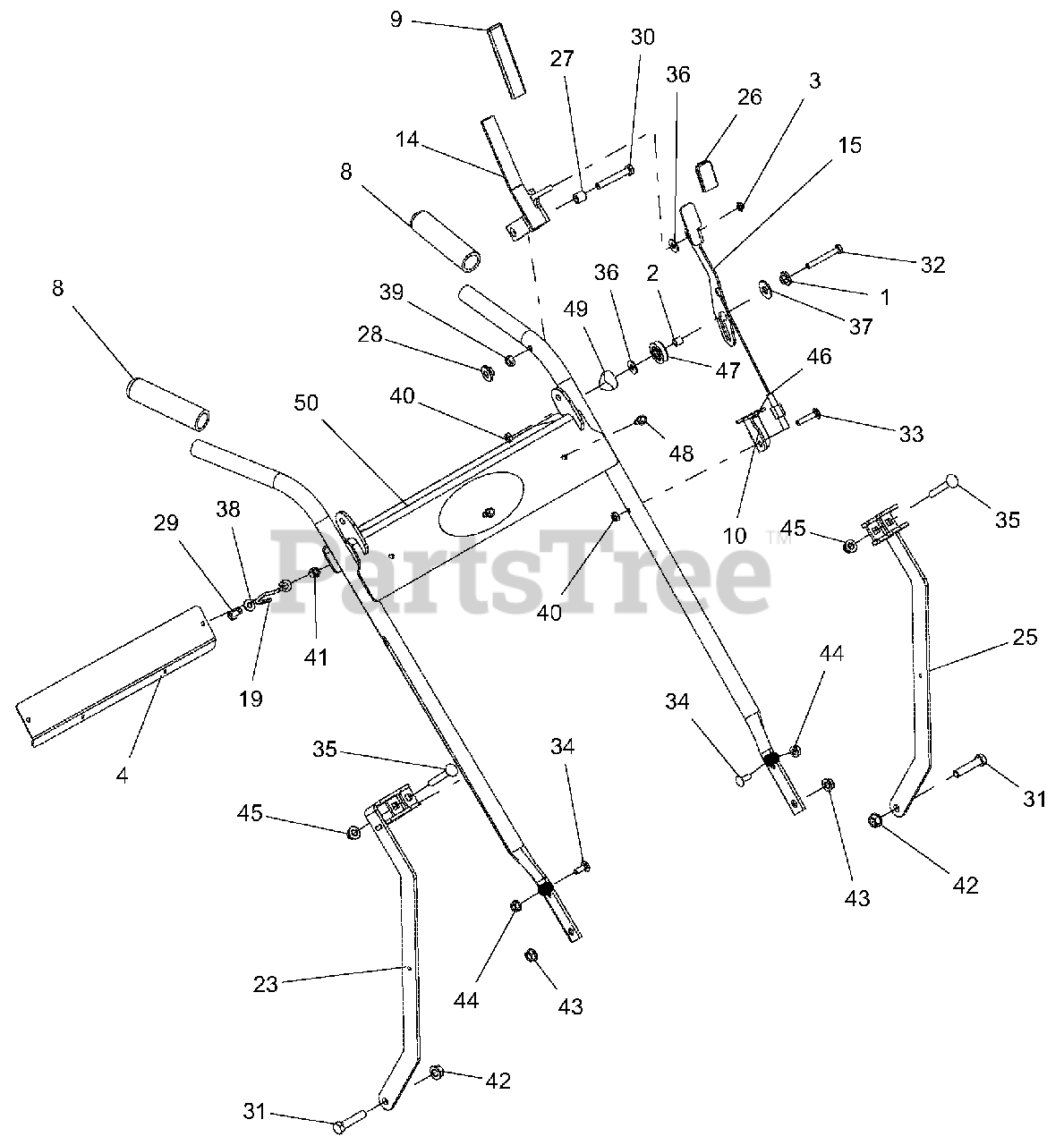

Handlebars Parts Diagram

  • Title

1

Ariens 00399300

BSHG, FLG .266X.42X.150 PM

$

$

Not available

2

Ariens 01251600

TUBE-SPACER, .280X.375X.375

$

$

Not available

3

Ariens 02215300

PUSH NUT, .25

$1.99

$

In Stock, Qty 16

0

4

Ariens 04158051

BACKER, GRAVELY

$9.99

$

Usually ships in 4-12 days

0

8

Ariens 04166600

GRIP, BLACK 7/8ID

$15.99

$

Usually ships in 4-12 days

0

9

Ariens 04166700

GRIP MZR/MOMENT SP 7/8X3/4X4

$

$

Not available

10

Ariens 04310051

MOUNT, UPPER PTO CABLE

Note: (BLACK)

$14.99

$

Usually ships in 4-12 days

0

14

Ariens 04312451

WMT-PTO LEVER, HWM

Note: (BLACK)

$33.99

$

Usually ships in 4-12 days

0

15

Ariens 04312800

WMT-HWM PTO INTERLOCK

$30.99

$

Usually ships in 4-12 days

0

19

Ariens 04642100

GUIDE - PULLCORD

$51.99

$

Usually ships in 4-12 days

0

23

Ariens 04831359

WLDMT, RH HANDLEBAR SUPPORT

Note: (ORANGE)

$

$

Not available

25

Ariens 04831459

WLDMT, LH HANDLEBAR SUPPORT

Note: (ORANGE)

$

$

Not available

26

Ariens 04928700

GRIP, THUMB LATCH

$

$

Not available

27

Ariens 05501101

BSHG-SLV .334X.500X.50

$6.49

$

Usually ships in 4-12 days

0

28

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 3 left!

0

29

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 05967100

@BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

33

Ariens 06219700

@BLT-RDHDSQNK .25-20X1.25 G5YZ

$3.99

$

Usually ships in 4-12 days

0

34

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 18

0

35

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

36

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

39

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 06530900

NUT-JAM-NYL .250-20 W/INSERTYZ

$0.99

$

In Stock, Qty 8

0

41

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

42

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

43

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

44

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

45

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

46

Ariens 06900413

CABLE, WAW PTO

$60.99

$

In Stock, only 2 left!

0

47

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 7

0

48

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

49

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 20+

0

50

Ariens 51118900

HANDLEBAR,BRUSH SP W/ DECAL

Note: (ORANGE)

$

$

Not available
