911706 (PRO-24) - Gravely 24" Walk-Behind High-Wheel Mower, CARB (SN: 000101 - 004199) Wheels Parts Diagram
24" Walk-Behind High-Wheel Mower, CARB

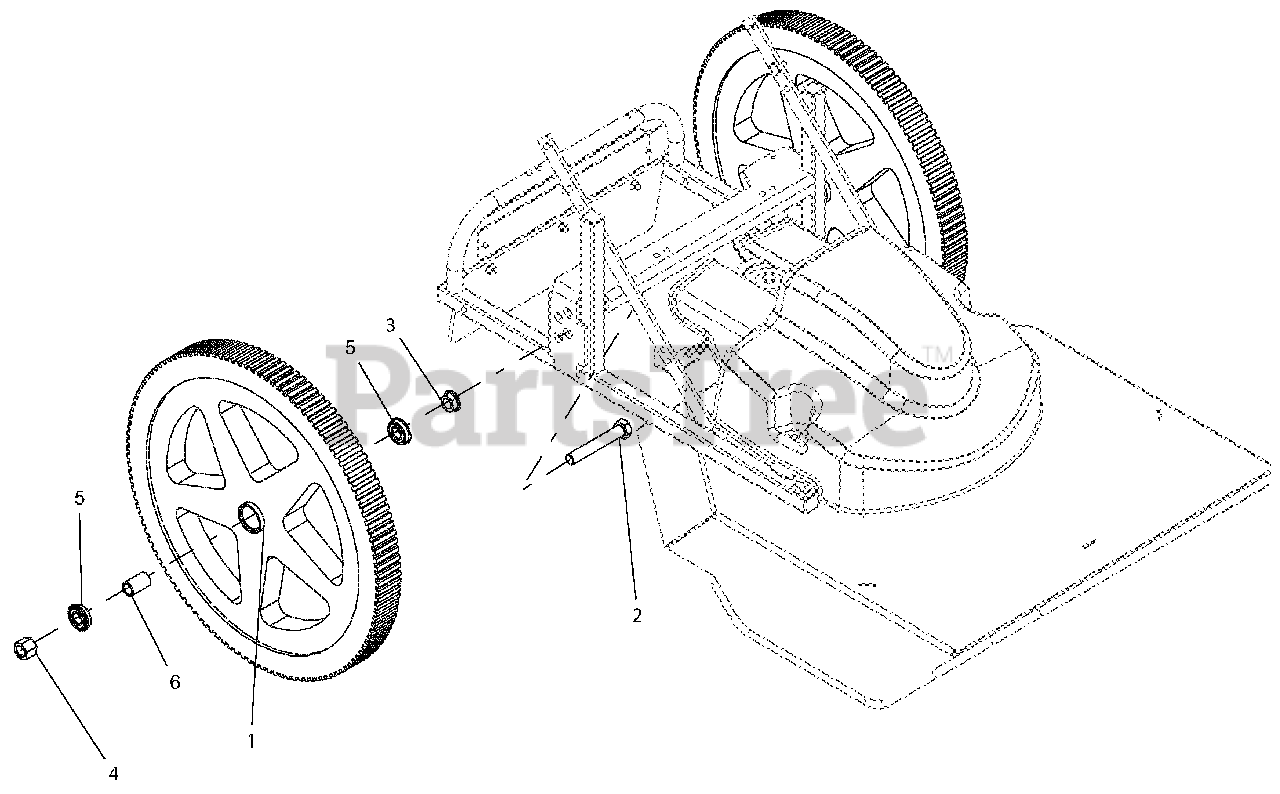

Wheels Parts Diagram
Gravely 07100919
WHEEL/TIRE ASSY, 20" SOLID RBBR
$
$
Not available
Gravely 05901433
BLT-HEX .62-11X4.00 GR5 FTH YZ
$5.99
$
Usually ships in 4-12 days
Gravely 06530002
NUT-HEX FLANGE .62-11 GR5 YWZC
$3.49
$
Usually ships in 4-12 days
Gravely 06540700
NUT-LK-NYL .625-11 YWZC
$3.99
$
In Stock, only 2 left!
Gravely 05400714
BALL BEARING 5/8 ID X 1-3/8OD
$9.49
$
In Stock, only 3 left!
Gravely 05501015
SPCR, .640X.840X1.39
$20.99
$
In Stock, only 1 left!
