911704 (PRO-24) - Gravely 24" Walk-Behind High-Wheel Mower, CARB (SN: 000101 & Above) Frame Parts Diagram

24" Walk-Behind High-Wheel Mower, CARB

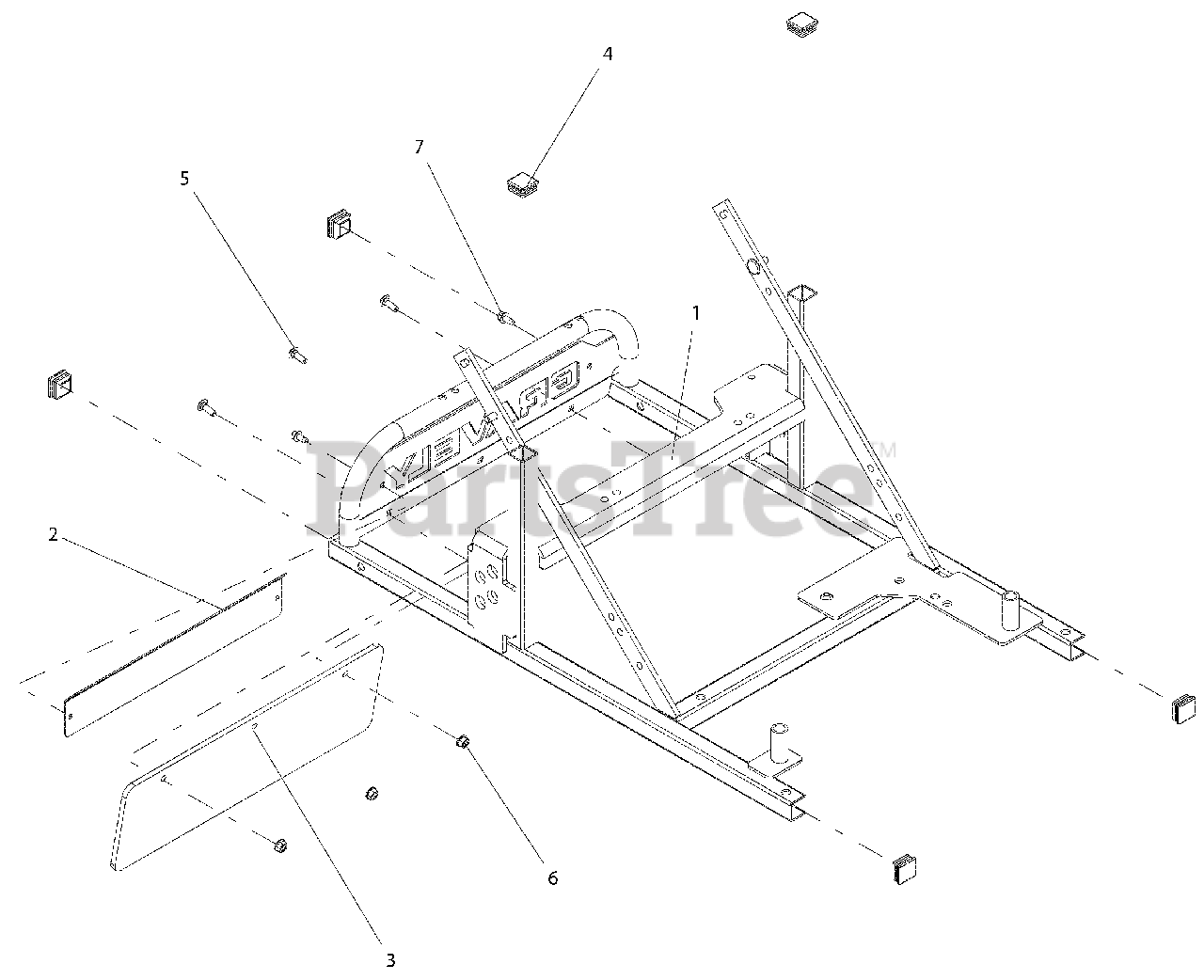

Frame Parts Diagram

  • Title
1

Gravely 04158653

WLDMT, HIGH WHL MWR FRAME

$681.99

$

Usually ships in 4-12 days

0

2

Gravely 04158051

BACKER, GRAVELY

$9.99

$

Usually ships in 4-12 days

0

3

Gravely 04158100

GUARD, RUBBER DEBRIS

$

$

Not available

4

Gravely 04166200

CAP PLUG FOR 1" TUBE 14GA

$

$

Not available

5

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5 YWZC
(Superseded to 06200307)

$0.99

$

In Stock, Qty 18

0

6

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
