911704 (PRO-24) - Gravely 24" Walk-Behind High-Wheel Mower, CARB (SN: 000101 & Above) Deck Parts Diagram

24" Walk-Behind High-Wheel Mower, CARB

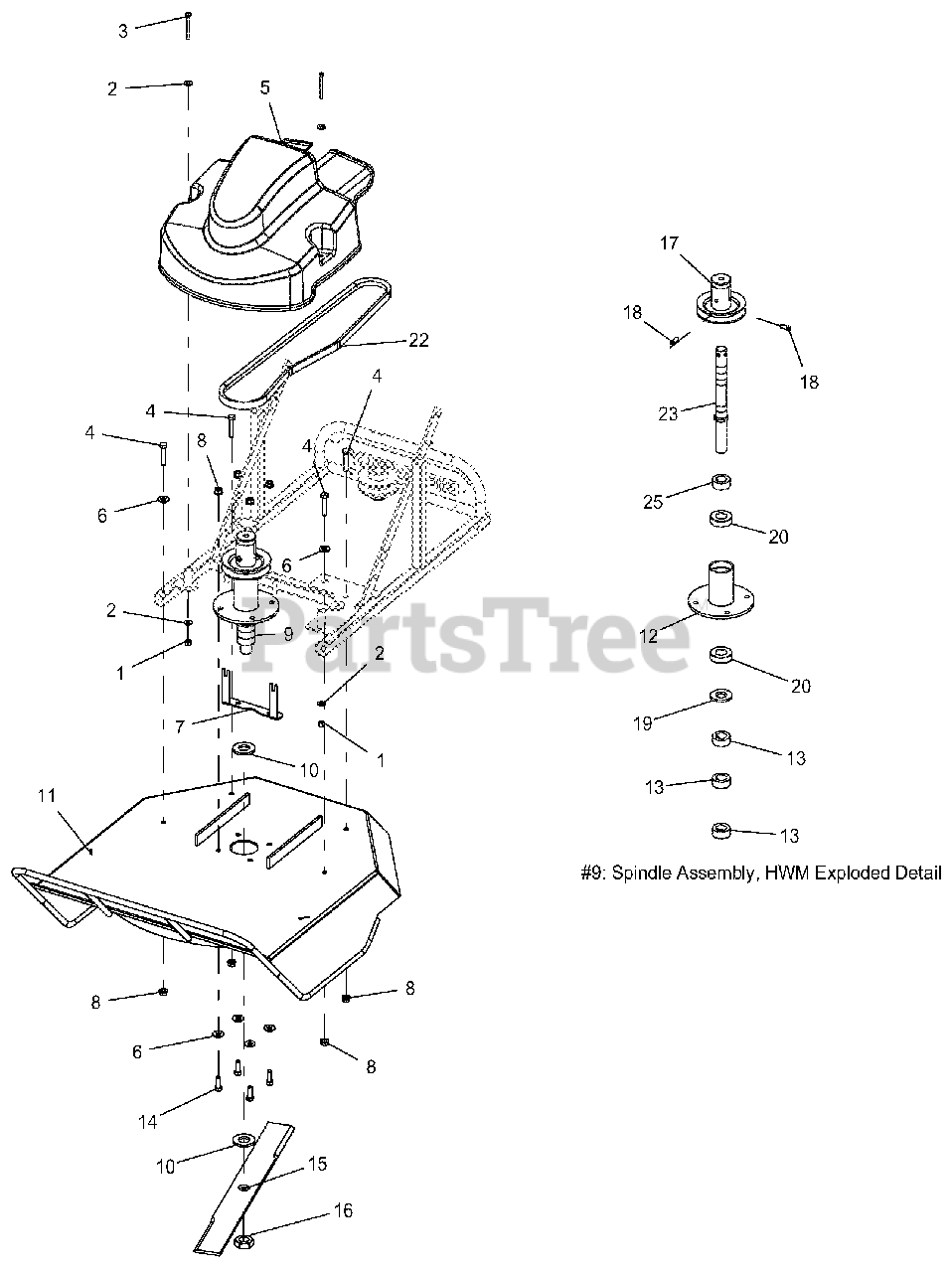

Deck Parts Diagram

  • Title
1

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

2

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 05956700

BLT-HEX .25-20X2.25 GR5 YWZC
(Superseded to 05901636)

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 04190900

COVER, PLASTIC BELT-HIGH WHEEL

$139.99

$

Usually ships in 4-12 days

0

6

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZC
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 04313651

WLDMT, HWM SPINDLE BELT FINGER (BLACK)

Note: (BLACK)

$129.99

$

Usually ships in 4-12 days

0

8

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 51115600

SPINDLE ASSY, HWM

$285.99

$

Usually ships in 4-12 days

0

10

Gravely 06400524

1"USS WASHER HARD NO PLA

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 51118000

WMT- DECK, BRUSHCUTTER (RED)

Note: (RED)

$

$

Not available

12

Gravely 04162251

WMT-SPINDLE, HW MOWER (BLACK)

Note: (BLACK)

$120.99

$

Usually ships in 4-12 days

0

13

Gravely 02550900

LOCKING COLLAR 1IN

$16.99

$

Usually ships in 4-12 days

0

14

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 04167500

BLADE, BRUSH MOWER 24"

$39.99

$

Usually ships in 4-12 days

0

16

Gravely 02117200

JAM NUT 1-14 NF

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 07334300

DOUBLE BLADE SHAFT PULLEY

$75.99

$

Usually ships in 4-12 days

0

18

Gravely 06000220

SCR, SET - .31-18 X .75 SQCUPHT

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 06400524

1"USS WASHER HARD NO PLA

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 05400407

BEARING 1.00 ID X 2

$34.99

$

Usually ships in 4-12 days

0

22

Gravely 07200604

V-BELT, 5L-WRAPPED

$55.99

$

Usually ships in 4-12 days

0

23

Gravely 04163000

WMT-SPINDLE SHAFT, HWM

$224.99

$

Usually ships in 4-12 days

0

25

Gravely 02550900

LOCKING COLLAR 1IN

$16.99

$

Usually ships in 4-12 days

0
