911703 - Ariens 24" Pro-24 High Wheel Self-Propelled Walk-Behind Mower, Briggs & Stratton (SN: 000101 & Above) Wheels Parts Diagram

24" Pro-24 High Wheel Self-Propelled Walk-Behind Mower, Briggs & Stratton

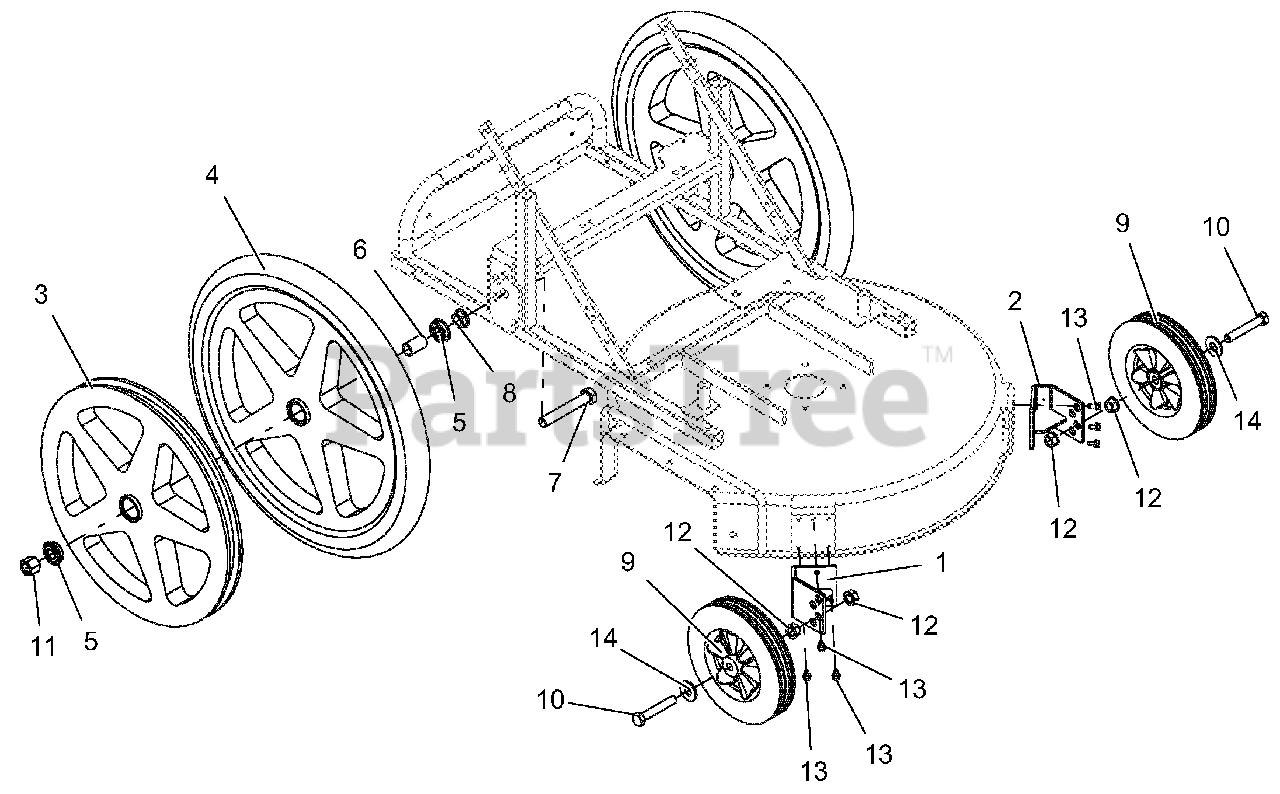

Wheels Parts Diagram

  • Title

1

Ariens 04161259

WMT-FIXED FRNT WHL SUPPORT, LH

Note: (ORANGE)

$66.99

$

Usually ships in 4-12 days

0

2

Ariens 04161359

WMT-FIXED FRNT WHL SUPPORT, RH

Note: (ORANGE)

$63.99

$

Usually ships in 4-12 days

0

3

Ariens 04277200

WHEEL, 20" BLACK MAG

$

$

Not available

4

Ariens 04208200

WHEEL,20"TIRE/RIM ASSY BLK/MAG

$136.99

$

In Stock, Qty 6

0

5

Ariens 05400714

BALL BEARING 5/8 ID X 1-3/8OD

$9.49

$

In Stock, only 3 left!

0

6

Ariens 05501015

SPACER, .640X.840X1.39

$20.99

$

In Stock, only 1 left!

0

7

Ariens 05901433

BLT-HEX .62-11X4.00 GR5 FTH YZ

$

$

Not available

8

Ariens 06530002

NUT-HEX FLANGE .62-11 GR5 YWZC

$3.49

$

Usually ships in 4-12 days

0

9

Ariens 07100839

WHEEL, PLASTIC-8"X1.75" BLACK

$25.99

$

Usually ships in 4-12 days

0

10

Ariens 05959900

@BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

11

Ariens 06540700

@NUT-LK-NYL .625-11 YWZC

$3.99

$

In Stock, only 2 left!

0

12

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0
