911703 - Ariens 24" Pro-24 High Wheel Self-Propelled Walk-Behind Mower, Briggs & Stratton (SN: 000101 & Above) Handlebars Parts Diagram

24" Pro-24 High Wheel Self-Propelled Walk-Behind Mower, Briggs & Stratton

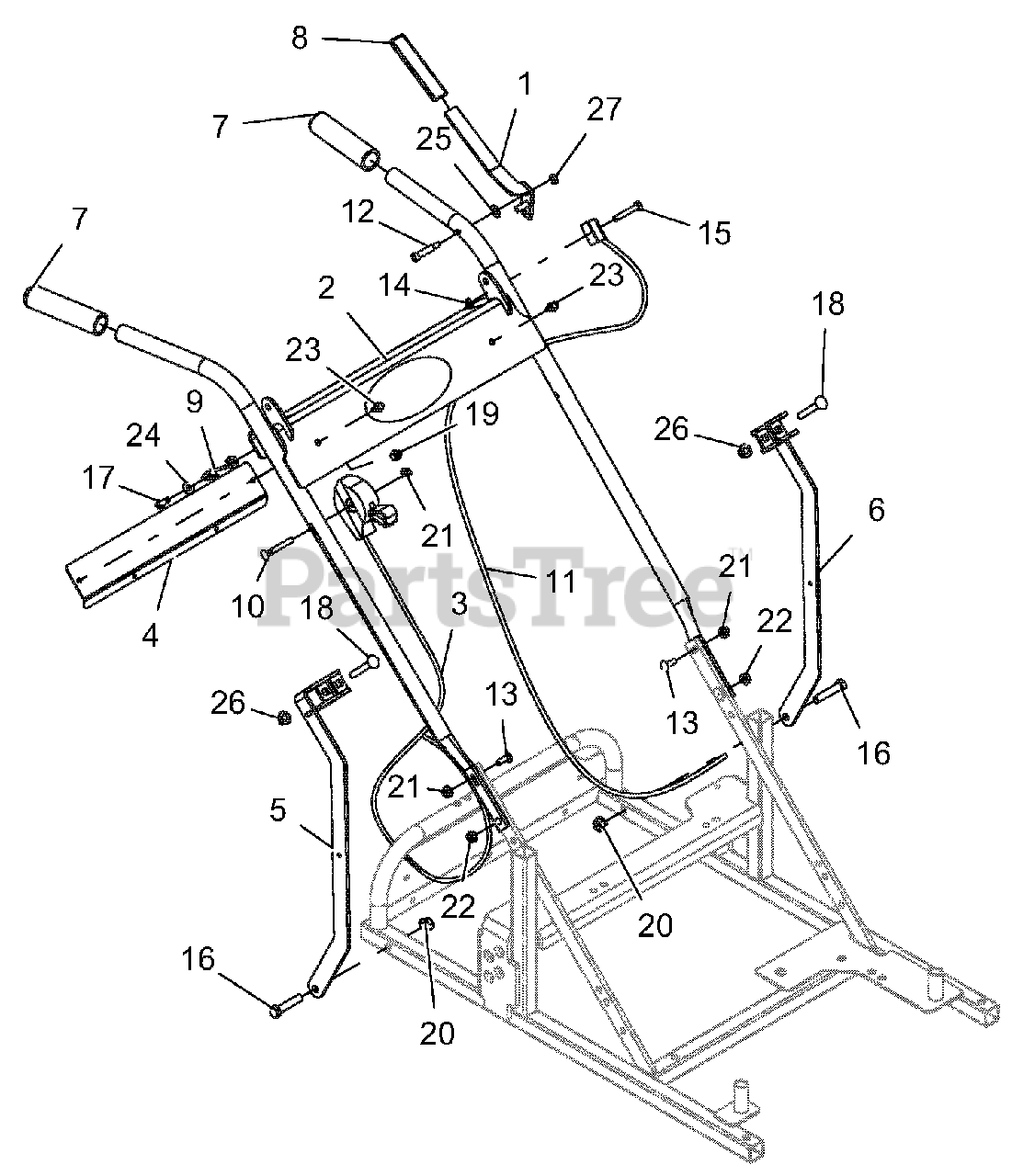

Handlebars Parts Diagram

  • Title

1

Ariens 04158451

LEVER, HIGH WHEEL OPC

Note: (BLACK)

$

$

Not available

2

Ariens 51118700

HANDLEBAR, HWM SP W/ DECAL

Note: (ORANGE)

$

$

Not available

3

Ariens 01327100

CABLE, THROTTLE (NON-CHOKING)

Note: (NON-CHOKING)

$34.99

$

Usually ships in 4-12 days

0

4

Ariens 04158051

BACKER, GRAVELY

$9.99

$

Usually ships in 4-12 days

0

5

Ariens 04831359

WLDMT, RH HANDLEBAR SUPPORT

Note: (ORANGE)

$

$

Not available

6

Ariens 04831459

WLDMT, LH HANDLEBAR SUPPORT

Note: (ORANGE)

$

$

Not available

7

Ariens 04166600

GRIP, BLACK 7/8ID

$15.99

$

Usually ships in 4-12 days

0

8

Ariens 04166700

GRIP MZR/MOMENT SP 7/8X3/4X4

$

$

Not available

9

Ariens 04642100

GUIDE - PULLCORD

$51.99

$

Usually ships in 4-12 days

0

10

Ariens 06209300

BLT-RDHDXLSQNK .25-20X2.0 G5YZ

$2.99

$

Usually ships in 4-12 days

0

11

Ariens 06900429

CABLE,MRZ SYSTEM 2

$34.99

$

In Stock, only 2 left!

0

12

Ariens 07016900

SCR-SHLDR .25-20X1.00 -YWZC

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

14

Ariens 06530900

NUT-JAM-NYL .250-20 W/INSERTYZ

$0.99

$

In Stock, Qty 5

0

15

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 16

0

16

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 19

0

18

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

19

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

20

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06530900

NUT-JAM-NYL .250-20 W/INSERTYZ

$0.99

$

In Stock, Qty 5

0
