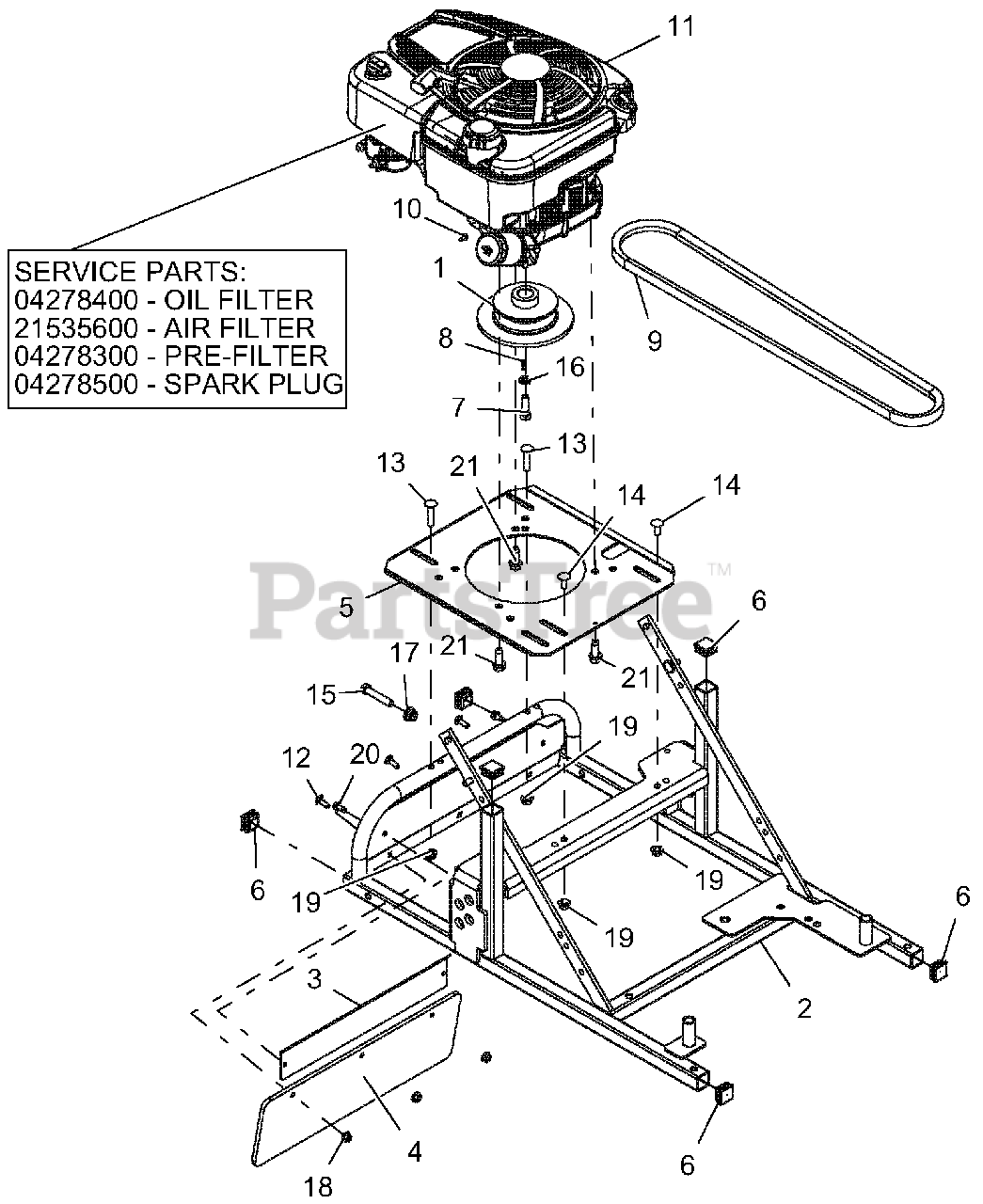

911703 - Ariens 24" Pro-24 High Wheel Self-Propelled Walk-Behind Mower, Briggs & Stratton (SN: 000101 & Above) Engine And Frame Parts Diagram

24" Pro-24 High Wheel Self-Propelled Walk-Behind Mower, Briggs & Stratton

Engine And Frame Parts Diagram

  • Title

1

Ariens 04167700

SHEAVE, ENGINE, HW MOWER

$258.99

$

Usually ships in 4-12 days

0

2

Ariens 04454159

WMT-HWM FRAME PLAIN

Note: (ORANGE)

$

$

Not available

3

Ariens 04158051

BACKER, GRAVELY

$9.99

$

Usually ships in 4-12 days

0

4

Ariens 04158100

GUARD, RUBBER DEBRIS

$

$

Not available

5

Ariens 04164159

PLATE-ENGINE MTG

Note: (ORANGE)

$41.99

$

Usually ships in 4-12 days

0

6

Ariens 04166200

CAP PLUG FOR 1" TUBE 14GA

$

$

Not available

7

Ariens 05930900

BLT-HEX .38-24X1.25 GR8 YWZC

$2.99

$

Usually ships in 4-12 days

0

8

Ariens 06600900

KEY-WDRF .156X.625X.25 SAE 6

$2.49

$

In Stock, Qty 12

0

9

Ariens 07200537

V-BELT, HB-WRAPPED

$60.99

$

Usually ships in 4-12 days

0

10

Ariens 07414500

SCR-TAP 8-32X.38 SL HWH YWZC

$2.49

$

Usually ships in 4-12 days

0

11

Ariens 08200533

ENGINE, B&S 190PRO 8.5 GT CARB

$

$

Not available

11

Ariens 04278400

FILTER, OIL

$26.99

$

Usually ships in 4-12 days

0

11

Ariens 21535600

FILTER, AIR

$13.99

$

In Stock, Qty 20+

0

11

Ariens 04278300

AIR FILTER, PRE-CLEANER

$21.99

$

Usually ships in 4-12 days

0

11

Ariens 04278500

SPARK PLUG

$

$

Not available

12

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

14

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

15

Ariens 05942200

BLT-HEX .38-16X2.0 GR5 FTD YWZ

$2.99

$

In Stock, only 1 left!

0

16

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0
