911702 (PRO-26) - Gravely 26" Walk-Behind High-Wheel Mower (SN: 000101 & Above) Handlebars Parts Diagram

26" Walk-Behind High-Wheel Mower

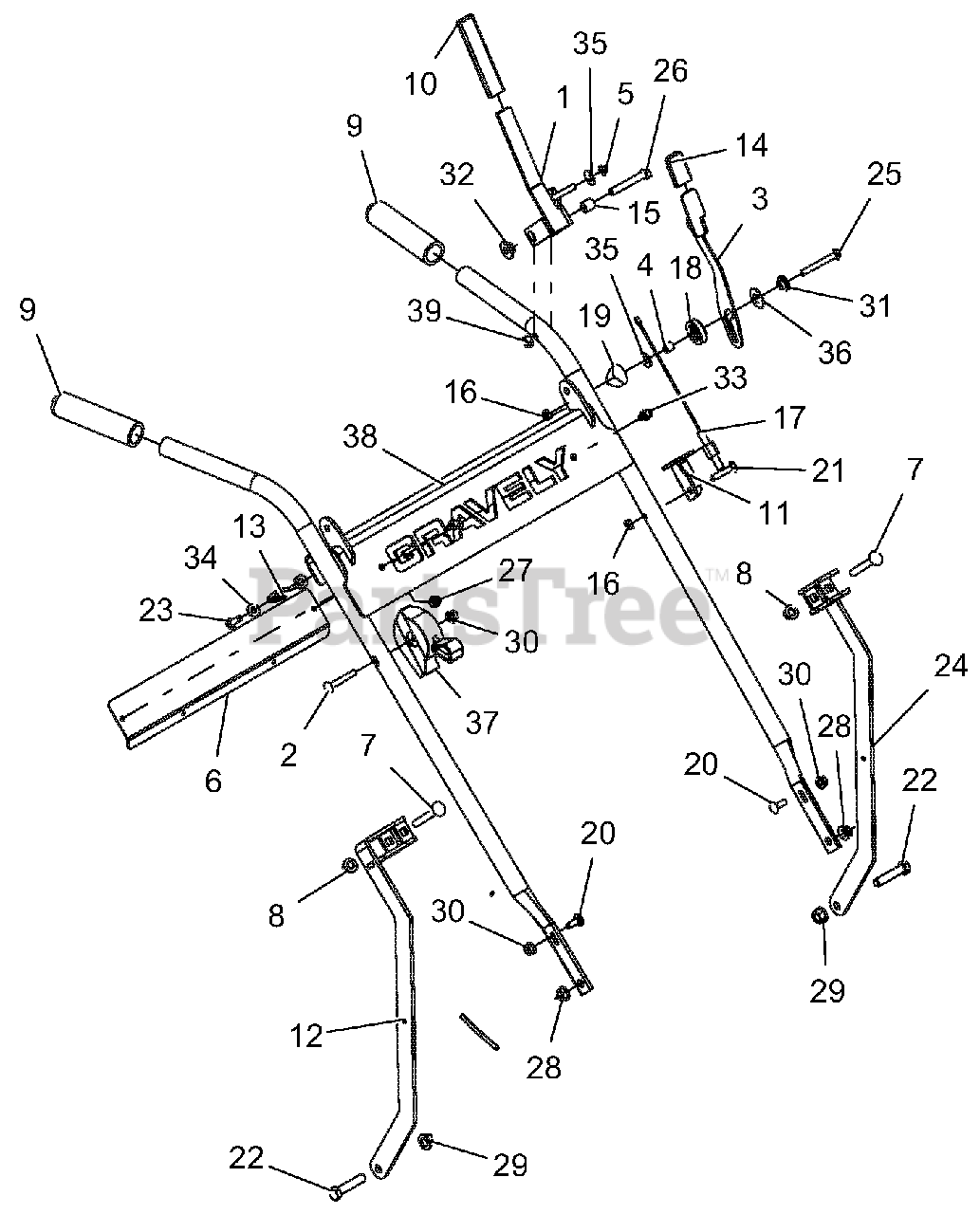

Handlebars Parts Diagram

  • Title

1

Gravely 04312451

WLDMT, PTO LEVER, HWM (BLACK)

Note: (BLACK)

$33.99

$

Usually ships in 4-12 days

0

2

Gravely 06220000

BLT-RDHDSQNK .25-20X1.75 G5 Y
(Superseded to 06200404)

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 04312800

WLDMT, HWM PTO INTERLOCK

$30.99

$

Usually ships in 4-12 days

0

4

Gravely 01251600

TUBE, SPCR .280 X .375 X .375 REV

$

$

Not available

5

Gravely 02215300

PUSH, NUT .25

$1.99

$

In Stock, Qty 16

0

6

Gravely 04158051

BACKER, GRAVELY

$9.99

$

Usually ships in 4-12 days

0

7

Gravely 06221600

BLT-RDHDSQNK .31-18X2.25 G5 Y
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 04166600

GRIP, BLACK 7/8ID

$15.99

$

Usually ships in 4-12 days

0

10

Gravely 04166700

GRIP, MZR/MOMENT SP 7/8X3/4X4

$

$

Not available

11

Gravely 04310051

MOUNT, UPPER PTO CABLE (BLACK)

Note: (BLACK)

$14.99

$

Usually ships in 4-12 days

0

12

Gravely 04831353

WLDMT, RH HANDLEBAR SUPPORT (RED)

Note: (RED)

$64.99

$

Usually ships in 4-12 days

0

13

Gravely 04642100

GUIDE, PULLCORD

$51.99

$

Usually ships in 4-12 days

0

14

Gravely 04928700

GRIP, THUMB LATCH

$

$

Not available

15

Gravely 05501101

BSHG-SLV .334X.500X.50

$6.49

$

Usually ships in 4-12 days

0

16

Gravely 06530900

NUT-JAM-NYL .250-20 W/INSERTYZ

$0.99

$

In Stock, Qty 9

0

17

Gravely 06900413

CABLE, WAW PTO

$60.99

$

In Stock, only 2 left!

0

18

Gravely 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 7

0

19

Gravely 07500005

SPCR, HANDLEBAR

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5 YWZC
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06219700

BLT-RDHDSQNK .25-20X1.25 G5 Y

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 04831453

WLDMT, LH HANDLEBAR SUPPORT (RED)

Note: (RED)

$64.99

$

Usually ships in 4-12 days

0

25

Gravely 05967100

BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

28

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 00399300

BSHG, FLG .266X.42X.150 PM

$

$

Not available

32

Gravely 05514800

BSHG, FLG .32X.500.344X.880

$2.49

$

In Stock, only 3 left!

0

33

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZC
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 06900511

CABLE, THROTTLE , KILL & CHOKE

$59.99

$

In Stock, only 1 left!

0

38

Gravely 04161753

WLDMT, HANDLEBAR HW MOWER (RED)

Note: (RED)

$286.99

$

Usually ships in 4-12 days

0

39

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0
