911701 (PRO-24) - Gravely 24" Walk-Behind High-Wheel Mower, Briggs & Stratton (SN: 000101 & Above) Handlebars Parts Diagram

24" Walk-Behind High-Wheel Mower, Briggs & Stratton

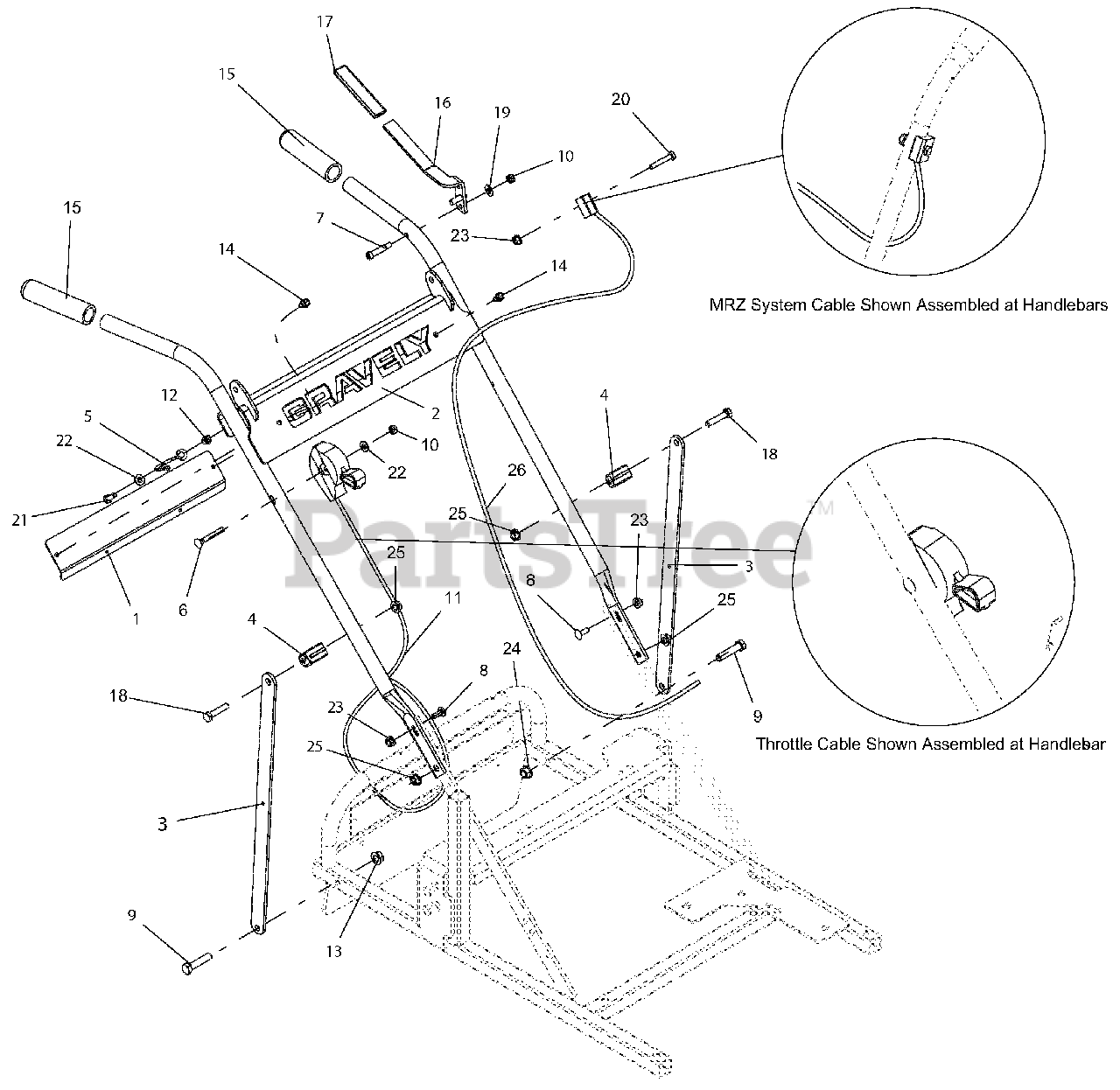

Handlebars Parts Diagram

  • Title

1

Gravely 04158051

BACKER, GRAVELY

$9.99

$

Usually ships in 4-12 days

0

2

Gravely 04161753

WLDMT, HANDLEBAR HW MOWER (RED)

Note: (RED)

$286.99

$

Usually ships in 4-12 days

0

3

Gravely 04164253

BRACE, HANDLEBAR , HWM (RED)

Note: (RED)

$26.99

$

Usually ships in 4-12 days

0

4

Gravely 04166151

SEAT CLAMP (BLACK)

Note: (BLACK)

$

$

Not available

5

Gravely 04642100

GUIDE, PULLCORD

$51.99

$

Usually ships in 4-12 days

0

6

Gravely 06209300

BLT, RDHDXLSQNK .25-20X2.0 G5YZ

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 07016900

SCR, SHLDR .25-20X1.00- YWZC

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5 YWZC
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

9

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 01327100

CABLE, THROTTLE (NON-CHOKING)

Note: (NON-CHOKING)

$34.99

$

Usually ships in 4-12 days

0

12

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 04166600

GRIP, BLACK 7/8ID

$15.99

$

Usually ships in 4-12 days

0

16

Gravely 04158451

WLDMT, OPC LEVER, HW MOWER (BLACK)

Note: (BLACK)

$

$

Not available

17

Gravely 04166700

GRIP, MZR/MOMENT SP 7/8X3/4X4

$

$

Not available

18

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 12

0

19

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 05952500

BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 17

0

21

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06900429

CABLE, MRZ SYSTEM 2

$34.99

$

In Stock, only 2 left!

0
