911701 (PRO-24) - Gravely 24" Walk-Behind High-Wheel Mower, Briggs & Stratton (SN: 000101 & Above) Controls Parts Diagram

24" Walk-Behind High-Wheel Mower, Briggs & Stratton

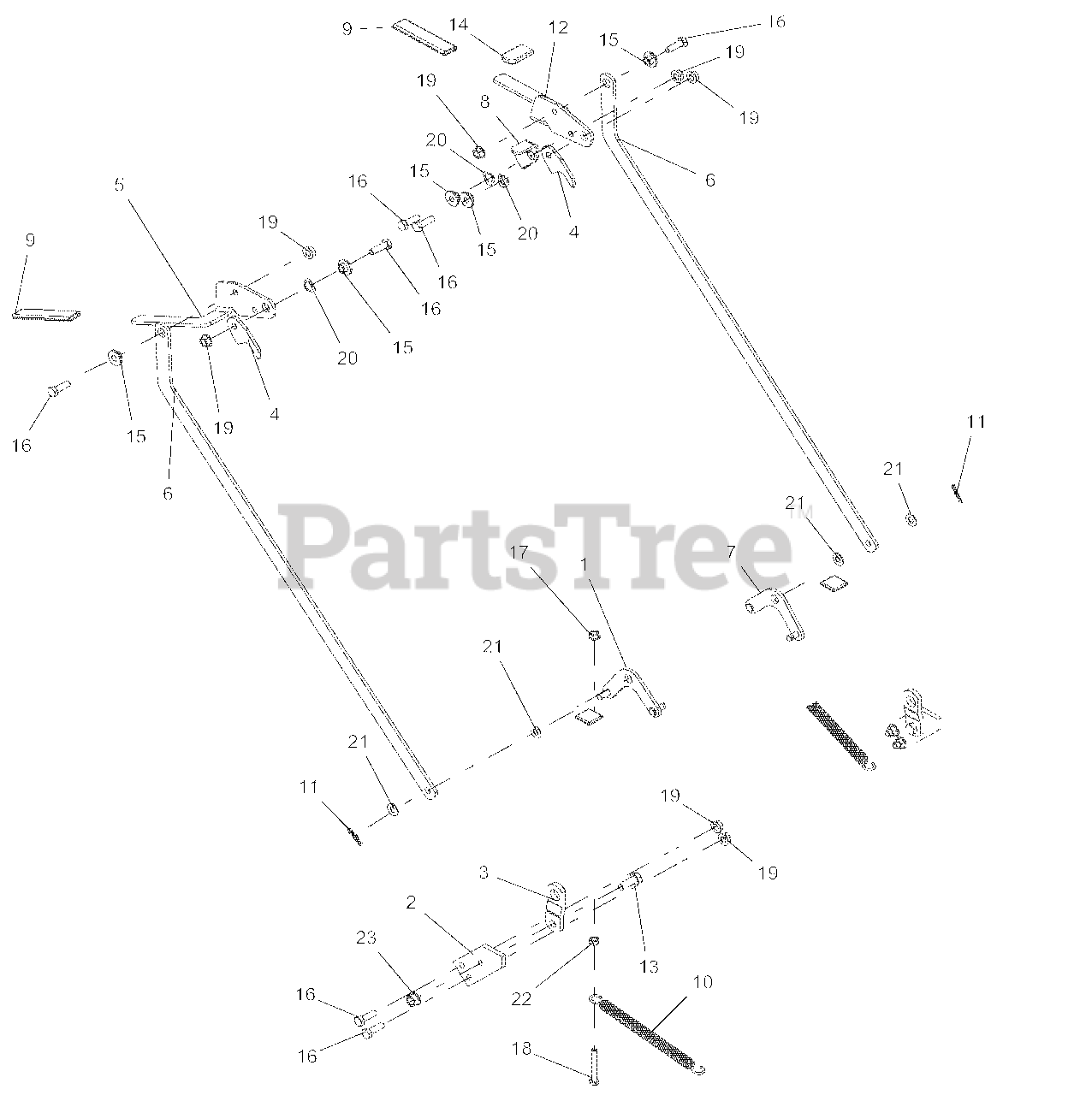

Controls Parts Diagram

  • Title

1

Gravely 04164451

WLDMT, BELL CRANK (BLACK)

Note: (BLACK)

$23.99

$

Usually ships in 4-12 days

0

2

Gravely 04159701

PIVOT, SP FRAME

$

$

Not available

3

Gravely 04160051

BRKT, SP FRAME PIVOT (BLACK)

Note: (BLACK)

$32.99

$

Usually ships in 4-12 days

0

4

Gravely 04161704

MOUNT, SP ENGAGEMENT LEVER

$

$

Not available

5

Gravely 04162351

LEVER, SP ENGAGEMENT (BLACK)

Note: (BLACK)

$25.99

$

Usually ships in 4-12 days

0

6

Gravely 04163151

BAR, ENGAGEMENT LEVER CONN. (BLACK)

Note: (BLACK)

$40.99

$

Usually ships in 4-12 days

0

7

Gravely 04313951

WLDMT, BELL CRANK, HWM BRAKE (BLACK)

Note: (BLACK)

$27.99

$

Usually ships in 4-12 days

0

8

Gravely 04312951

LOCK, HWM PARK BRAKE (BLACK)

Note: (BLACK)

$12.99

$

Usually ships in 4-12 days

0

9

Gravely 04166700

GRIP, MZR/MOMENT SP 7/8X3/4X4

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 08300512

SPRG, EXTENSION

$17.99

$

In Stock, Qty 20+

0

11

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 04313000

LEVER, SP ENGAGEMENT

$

$

Not available

13

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 04928700

GRIP, THUMB LATCH

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 05514800

BSHG, FLG .32X.500.344X.880

$2.49

$

In Stock, only 3 left!

0

16

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 05967100

BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06400005

WSHR, WAVE .50X.75X.015 .13FRHT

$2.99

$

In Stock, only 2 left!

0

21

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 12

0

23

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0
