911603 - Ariens Razor 21" Self-Propelled Walk-Behind Mower, 8.75hp Briggs & Stratton (SN: 000101 & Above) Wheels, Front Cover and Baffles Parts Diagram

Razor 21" Self-Propelled Walk-Behind Mower, 8.75hp Briggs & Stratton

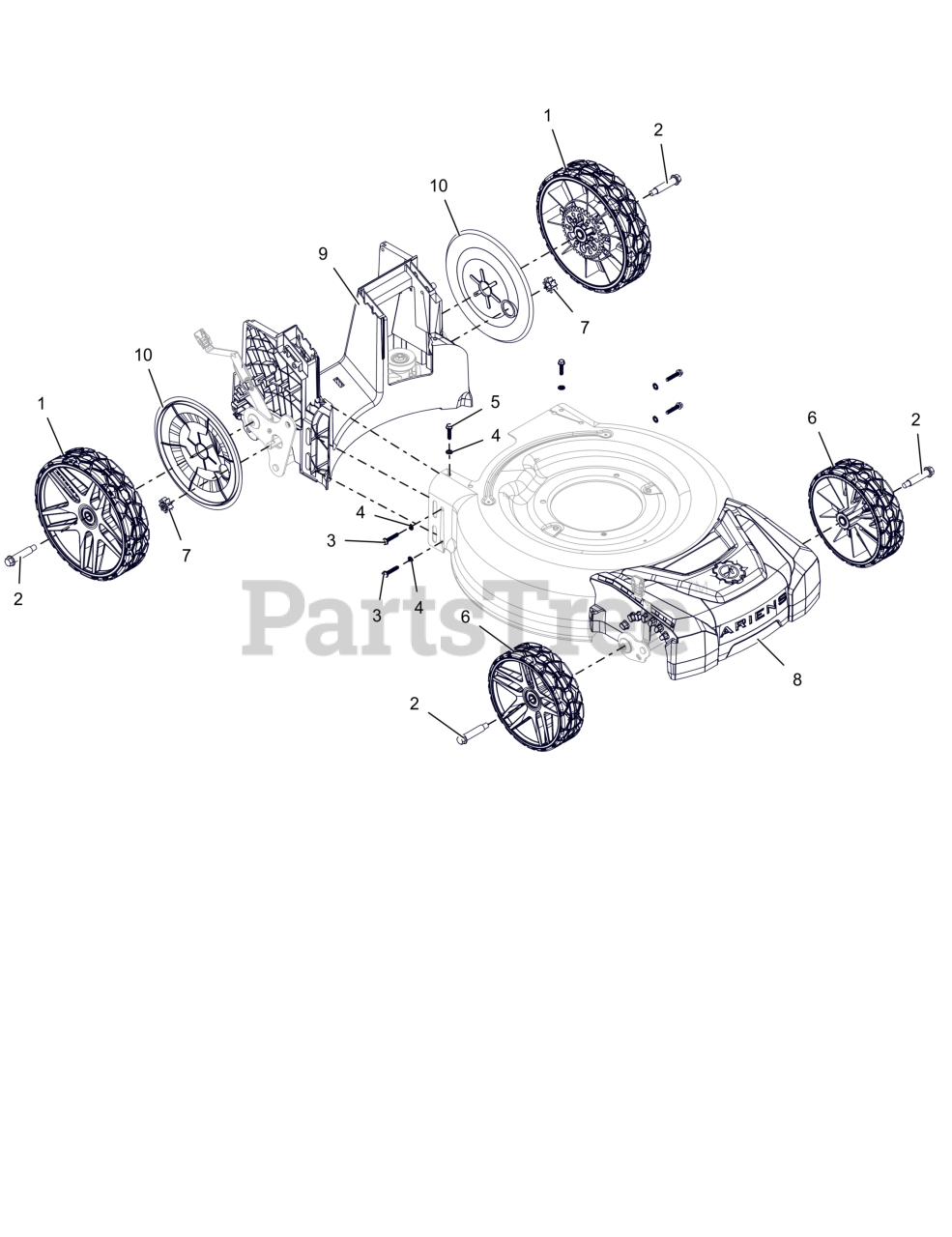

Wheels, Front Cover and Baffles Parts Diagram

  • Title
1

Ariens 51123300

ASM, WHEEL WITH GEAR - 10"

$34.99

$

Usually ships in 4-12 days

0

2

Ariens 07002209

BLT, SHLDR HWH .325X1.981X 3/8-16

$10.99

$

In Stock, only 1 left!

0

3

Ariens 07002210

SCR, HI-LO HWH 1/4-15 X 1.25

$

$

Currently unavailable

4

Ariens 07002231

WSHR-LK-EXT, .256X.510X.028

$

$

Currently unavailable

5

Ariens 07002234

SCR, HI-LO HWH 1/4-15 X 1.00

$3.49

$

Usually ships in 4-12 days

0

6

Ariens 07101604

WHEEL, 8" - WITH BEARING

$29.99

$

Usually ships in 4-12 days

0

7

Ariens 30119100

GEAR, RWD SPUR

$

$

Not available

8

Ariens 30124900

COVER, FRONT

$77.99

$

Usually ships in 4-12 days

0

9

Ariens 30127300

BAFFLE, RWD

$129.99

$

Usually ships in 4-12 days

0

10

Ariens 30129600

COVER, DUST - 10"

$34.99

$

Usually ships in 4-12 days

0
