911603 - Ariens Razor 21" Self-Propelled Walk-Behind Mower, 8.75hp Briggs & Stratton (SN: 000101 & Above) Engine and Blade Parts Diagram

Razor 21" Self-Propelled Walk-Behind Mower, 8.75hp Briggs & Stratton

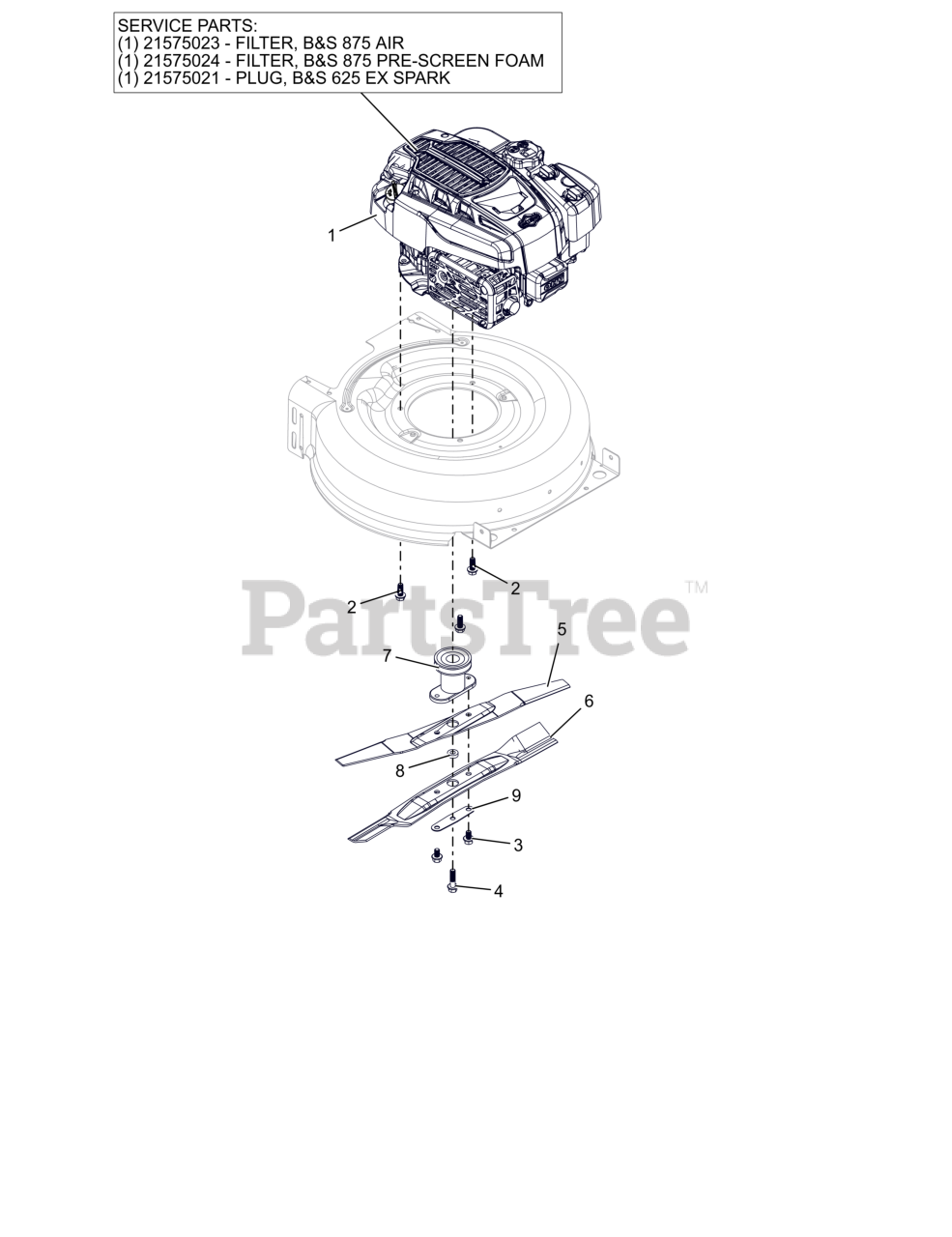

Engine and Blade Parts Diagram

  • Title

1

Ariens 08201432

ENGINE, BRIGGS 875 EXI MNS

$

$

Currently unavailable

1

Ariens 21575023

FILTER- B&S 875 AIR

Note: Component Service Part

$

$

Not available

1

Ariens 21575024

FILTER-B&S 875 PRE-SCREEN FOAM

Note: Component Service Part

$27.99

$

Usually ships in 4-12 days

0

1

Ariens 21575021

PLUG- B&S 625 EX SPARK

Note: Component Service Part

$7.99

$

Usually ships in 4-12 days

0

2

Ariens 07002204

SCR-TAP, 3/8-16X1.00 HWH

$

$

Currently unavailable

3

Ariens 07002205

SCR, 3/8-16 x 5/8, HEX-FLG

$

$

Not available

4

Ariens 07002303

SCR, HEX FLANGE 3/8-24X1.50

$

$

Not available

5

Ariens 09682300

BLADE- DUAL UPPER - 21"

$25.99

$

Usually ships in 4-12 days

0

6

Ariens 09682400

BLADE, DUAL LOWER - 21

$

$

Not available

7

Ariens 09683900

SPCR, BLADE - DUAL

$

$

Not available

8

Ariens 30180251

SPCR, BOLT (BLACK)

$

$

Not available

9

Ariens 30180351

PLATE, SUPPORT DUAL BLADE (BLACK)

$

$

Not available
