911530 (LM 21 SC) - Gravely 21" Walk-Behind Mower, 6.75hp Briggs & Stratton (SN: 000101 & Above) Friction Wheel And Drive Parts Diagram

21" Walk-Behind Mower, 6.75hp Briggs & Stratton

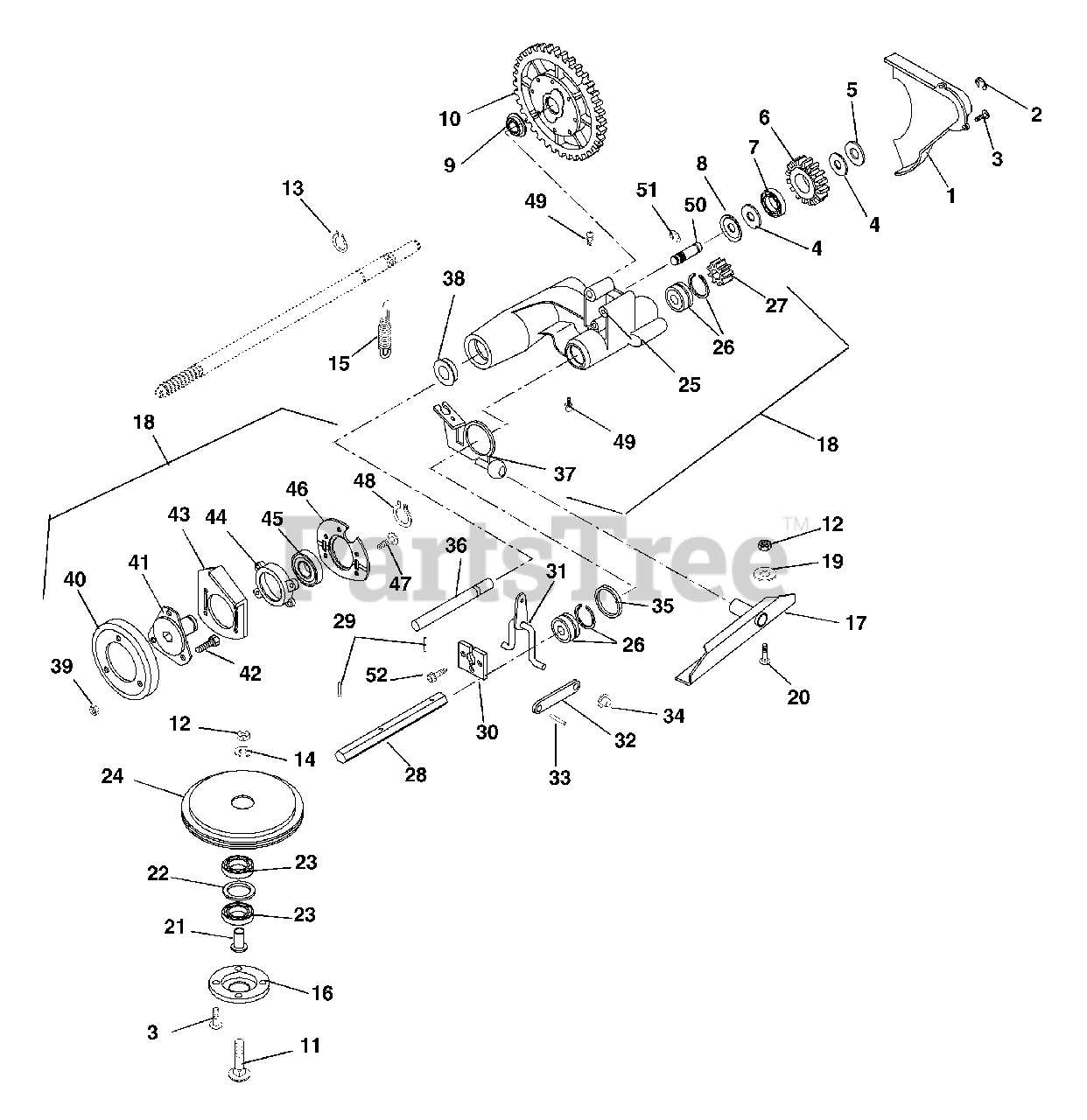

Friction Wheel And Drive Parts Diagram

  • Title

1

Gravely 01121051

Gear Cover

$38.99

$

Usually ships in 4-12 days

0

2

Gravely 05705900

Ring-Retaining-External .438 x .035

$0.99

$

In Stock, Qty 13

0

3

Gravely 07411900

Screw-Tapping 12-24 x .50 Hex Washer Head
(Superseded to 07400136)

$2.49

$

In Stock, Qty 11

0

4

Gravely 06441100

Washer - Flat - Steel .520 x .827 x .062
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

5

Gravely 06425300

Washer - Flat - Steel .531 x 1.00 x .063
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 01131700

Idler Gear

$51.99

$

Usually ships in 4-12 days

0

7

Gravely 05408000

Bearing - Ball .50 x 1.38 x .437

$5.99

$

In Stock, Qty 15

0

8

Gravely 01135100

Retainer

$12.99

$

In Stock, only 1 left!

0

9

Gravely 05417600

Bearing-Ball .625 x 1.38 x .50
(Superseded to 05417500)

$17.99

$

Usually ships in 4-12 days

0

10

Gravely 51102400

Differential Assembly

$179.99

$

In Stock, only 1 left!

0

11

Gravely 06220200

Bolt-Round Head Square Neck .31-18 x 1.75 Grade 5
(Superseded to 06200324)

$2.99

$

In Stock, only 4 left!

0

12

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05701900

Ring-Retaining-External .625 x 035
(Superseded to 05711900)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06439100

Washer-Flat-Steel .38 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

15

Gravely 08325200

Spring-Tension .051 x .60 x 2.25

$5.99

$

In Stock, only 1 left!

0

16

Gravely 01127500

Bearing, Retainer

$19.99

$

Usually ships in 4-12 days

0

17

Gravely 01161953

Pivot Channel Weldment
(Superseded to 01161951)

$49.99

$

Usually ships in 4-12 days

0

18

Gravely 51108900

Kit, LM Drive Carrier

Note: (Includes Items 25 - 52)

$439.99

$

Usually ships in 4-12 days

0

19

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06212200

Bolt-Round Head Square Short Neck .31-18 x .62
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 01127400

Spindle, Bearing

$19.99

$

In Stock, Qty 7

0

22

Gravely 06420200

Washer- Flat-Steel 1.062 x 1.344 x .032

$4.49

$

In Stock, Qty 7

0

23

Gravely 05435100

Bearing-Ball .625 x 1.375 x .43

$14.99

$

In Stock, Qty 20+

0

24

Gravely 01127300

Friction Sheave

$

$

Not available

25

Gravely 01158700

Drive Carrier
(Superseded to 01140600)

$111.99

$

In Stock, only 1 left!

0

26

Gravely 05413700

Bearing - Ball .562 x 1.375 x .437

$29.99

$

In Stock, only 1 left!

0

27

Gravely 02201100

Gear-Pinion

$10.99

$

In Stock, only 1 left!

0

28

Gravely 01240100

Hex Shaft

$66.99

$

Usually ships in 4-12 days

0

29

Gravely 05803500

Pin - Roll .125 x .50

$0.99

$

In Stock, Qty 10

0

30

Gravely 01125000

Retainer Plate

$

$

Not available

31

Gravely 01123600

Shift Arm Weldment

$23.99

$

Usually ships in 4-12 days

0

32

Gravely 01124200

Shift Link

$7.99

$

In Stock, Qty 5

0

33

Gravely 05804800

Pin-Roll .125 x .63

$

$

Not available

34

Gravely 02215300

Push Nut .25

$1.99

$

In Stock, Qty 16

0

35

Gravely 06421600

Washer - Flat - Steel 1.390 x 2.00 x .020

$2.99

$

In Stock, only 1 left!

0

36

Gravely 01125100

Rod-Guide

$73.99

$

Usually ships in 4-12 days

0

37

Gravely 01137900

Drive Actuator Weldment
(Superseded to 01245700)

$39.99

$

Usually ships in 4-12 days

0

38

Gravely 05417600

Bearing-Ball .625 x 1.38 x .50
(Superseded to 05417500)

$17.99

$

Usually ships in 4-12 days

0

39

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 03240700

Disc, Friction
(Superseded to 03248300)

$39.99

$

In Stock, Qty 20+

0

41

Gravely 01133500

Hub, Friction Wheel

$59.99

$

Usually ships in 4-12 days

0

42

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

43

Gravely 01132700

Bearing Plate
(Superseded to 00174500)

$13.99

$

Usually ships in 4-12 days

0

44

Gravely 01131800

Bearing Retainer

$20.99

$

Usually ships in 4-12 days

0

45

Gravely 05416000

Bearing Ball 1.00 x 2.00 x .56

$14.99

$

In Stock, only 3 left!

0

46

Gravely 01119200

Bearing Retainer

$7.49

$

Usually ships in 4-12 days

0

47

Gravely 07415100

Screw-Hex Flange Washer Head Tapping 5MM-0.8 x 16MM

$3.49

$

Usually ships in 4-12 days

0

48

Gravely 05706200

Ring-Retaining - External 1.00 x .042

$2.49

$

In Stock, only 1 left!

0

49

Gravely 07012600

Fitting-Lube .25-28 x .256
(Superseded to 07001806)

$

$

Not available

50

Gravely 01139700

Idler Shaft

$30.99

$

In Stock, only 3 left!

0

51

Gravely 05705900

Ring-Retaining-External .438 x .035

$0.99

$

In Stock, Qty 13

0

52

Gravely 07411900

Screw-Tapping 12-24 x .50 Hex Washer Head
(Superseded to 07400136)

$2.49

$

In Stock, Qty 11

0
