911530 (LM 21 SC) - Gravely 21" Walk-Behind Mower, 6.75hp Briggs & Stratton (SN: 000101 & Above) Engine, Blade And Belt Parts Diagram

21" Walk-Behind Mower, 6.75hp Briggs & Stratton

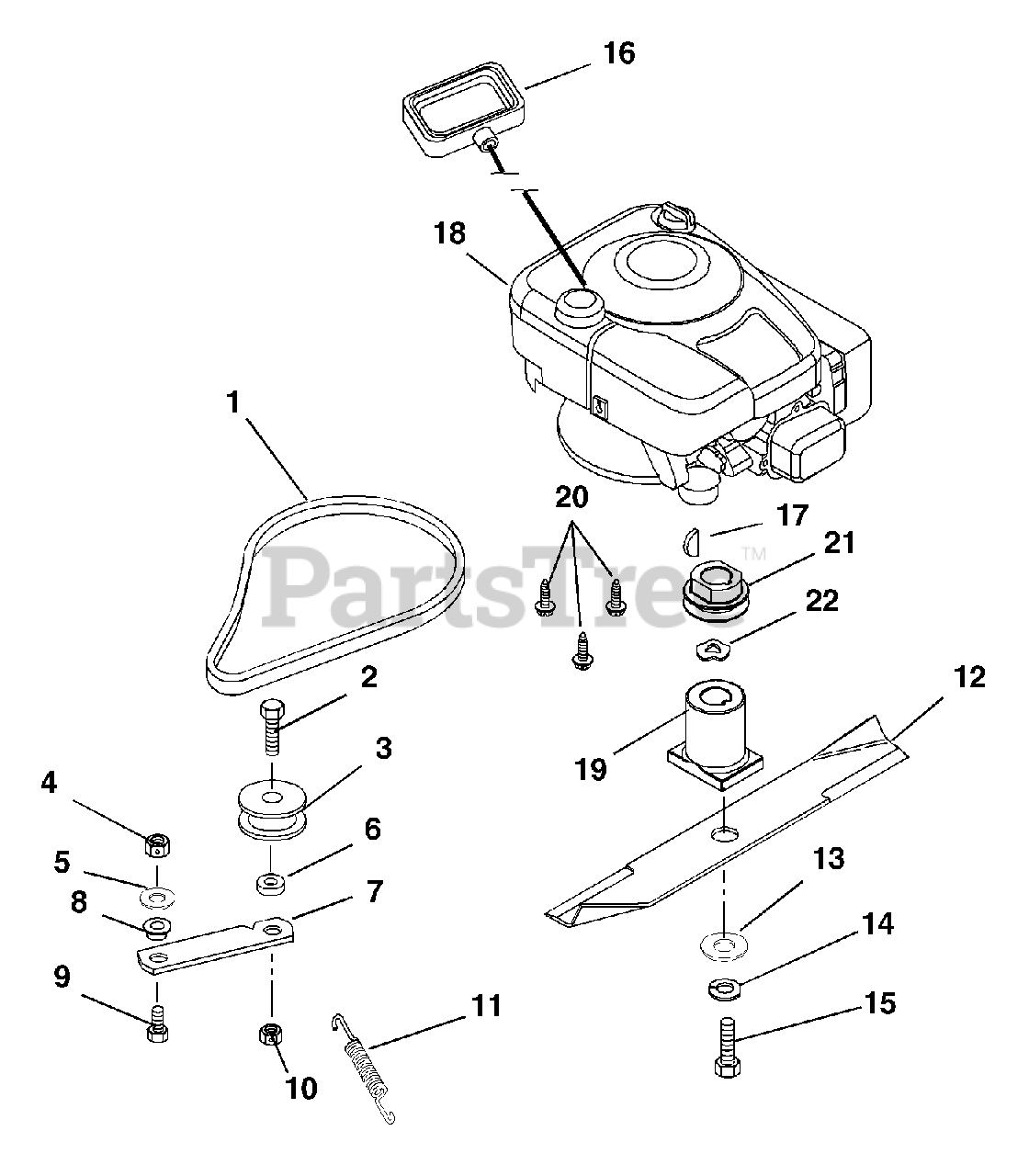

Engine, Blade And Belt Parts Diagram

  • Title
1

Gravely 07217100

V-Belt 3L Section

$34.99

$

In Stock, Qty 6

0

2

Gravely 05963800

Bolt-Hex .44-14 x 1.25 Grade 5

$2.99

$

Usually ships in 4-12 days

0

3

Gravely 07313300

Idler-Flat 1.75 x .47

$35.99

$

In Stock, Qty 7

0

4

Gravely 06529800

Nut-Locking-Center .31 -18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06436700

Washer-Flat-Steel .323 x .625 x .062
(Superseded to 06401002)

$1.49

$

In Stock, only 2 left!

0

6

Gravely 05533300

Bushing-Sleeve .47 x .75 x .43

$3.99

$

In Stock, Qty 11

0

7

Gravely 01141200

Idler Arm

$22.99

$

In Stock, only 2 left!

0

8

Gravely 05515400

Bushing-Flange .325 x .50 x .25 x 1.12

$3.99

$

In Stock, only 1 left!

0

9

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06536400

Nut-Locking-Center .44-14
(Superseded to 06500930)

$2.99

$

In Stock, Qty 12

0

11

Gravely 08321100

Spring, Tension .043 x .44 x 3.31

$6.49

$

In Stock, Qty 6

0

12

Gravely 01137000

Blade, 21" Mower

$25.99

$

In Stock, Qty 20+

0

12

Gravely 01182400

Blade, 21" Mower Tungsten
(Superseded to 01137000)

$25.99

$

In Stock, Qty 20+

0

13

Gravely 06441700

Washer-Flat Steel .390 x 1.50 x .125

$3.99

$

In Stock, only 1 left!

0

14

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 05976600

Bolt-Hex .38-24 x 2.00 Grade 8

$2.99

$

In Stock, only 4 left!

0

16

Gravely 01157100

Recoil Start Handle

$7.99

$

In Stock, only 1 left!

0

17

Gravely 06600900

Key-Woodruff .156 x .625 x .25 SAE #6

$2.49

$

In Stock, Qty 12

0

18

Gravely 08266100

Engine Briggs & Stratton Intek Pro 6.75

$

$

Not available

19

Gravely 09733200

Blade Adapter
(Superseded to 09735100)

$45.99

$

Usually ships in 4-12 days

0

20

Gravely 07414100

Screw-Tapping .38-16 x 1.00 Hex Washer Head
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

21

Gravely 09733100

Pulley
(Superseded to 04851300)

$16.99

$

Usually ships in 4-12 days

0

22

Gravely 01192900

Washer-Wave .885 x 1.31 x .125

$4.99

$

In Stock, Qty 6

0
