911513 (LM 21) - Ariens 21" Push Walk-Behind Mower, 6.5hp Briggs & Stratton (SN: 000101 - 001523) Swivel Wheels And Brackets Parts Diagram

21" Push Walk-Behind Mower, 6.5hp Briggs & Stratton

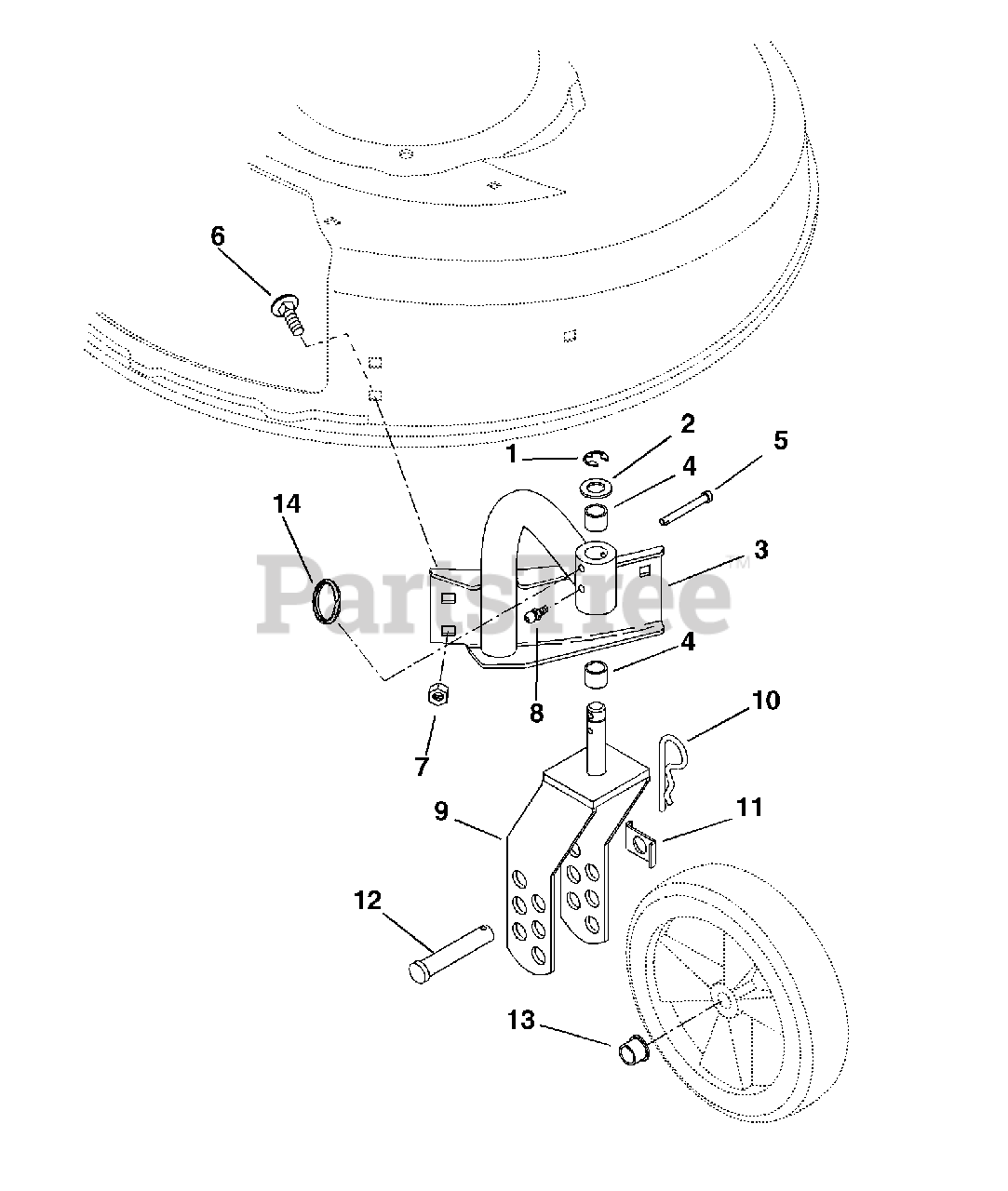

Swivel Wheels And Brackets Parts Diagram

  • Title

1

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 20+

0

2

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 01169459

RIGHT MOUNT ARM WELDMENT
(Superseded to 01185259)

$94.99

$

Usually ships in 4-12 days

0

Ariens 01169559

LEFT MOUNT ARM WELDMENT
(Superseded to 01189559)

$94.99

$

Usually ships in 4-12 days

0

4

Ariens 05504700

BSHG-SLV .625X.750X.500 BR

$11.99

$

In Stock, only 1 left!

0

5

Ariens 06814600

PIN-CLEV .25X1.75 YWZC

$3.99

$

In Stock, Qty 6

0

6

Ariens 06222000

@BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

$2.99

$

In Stock, Qty 20+

0

7

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

9

Ariens 01169359

WHEEL YOKE WELDMENT

$149.99

$

In Stock, only 1 left!

0

10

Ariens 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$2.99

$

In Stock, only 2 left!

0

11

Ariens 01168100

AXLE TAB

$16.99

$

In Stock, only 2 left!

0

12

Ariens 01168300

PIN-CLEV .494X2.62 YWZC

$9.49

$

In Stock, only 2 left!

0

13

Ariens 05502100

BSHG-FLG .500X.625X.500X.750

$3.99

$

In Stock, Qty 20+

0

14

Ariens 01169200

KICKOUT RING YWZC
(Superseded to 01239800)

$2.49

$

In Stock, only 2 left!

0
