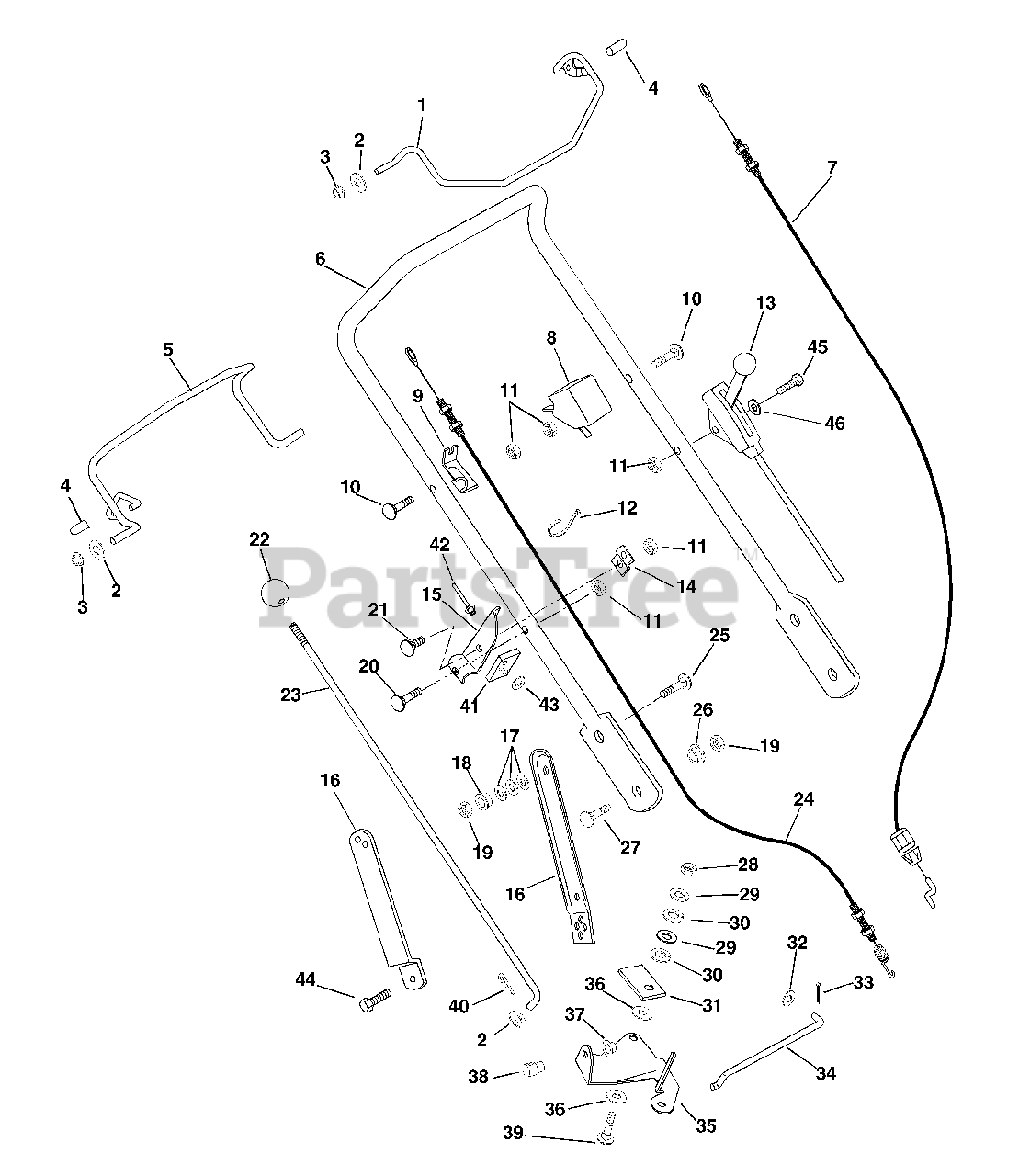

911513 (LM 21) - Ariens 21" Push Walk-Behind Mower, 6.5hp Briggs & Stratton (SN: 000101 - 001523) Handlebar And Controls Parts Diagram

21" Push Walk-Behind Mower, 6.5hp Briggs & Stratton

Handlebar And Controls Parts Diagram

  • Title

1

Ariens 01177251

ENGINE BAIL

$

$

Not available

2

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 20+

0

4

Ariens 07517000

CAP, VINYL, .25 ID

$3.49

$

In Stock, Qty 10

0

5

Ariens 01177051

TRACTION BAIL
(Superseded to 51109900)

Note: (For model 511, 514-517)

$190.99

$

Usually ships in 4-12 days

0

6

Ariens 01183151

HANDLEBAR SELF-PROPELLED
(Superseded to 01245351)

Note: (For model 511, 514-517)

$

$

Not available

6

Ariens 01183051

HANDLEBAR - PUSH
(Superseded to 01245351)

Note: (For model 513)

$

$

Not available

7

Ariens 06922000

ENGINE CONTROL CABLE
(Superseded to 06947700)

Note: (For model 513-516)

$22.99

$

In Stock, only 1 left!

0

7

Ariens 06937900

ENGINE CABLE

Note: (For model 511, 517)

$45.99

$

Usually ships in 4-12 days

0

8

Ariens 01156400

SWITCH-CABLE ANCHOR
(Superseded to 01156451)

Note: (For model 515)

$

$

Not available

9

Ariens 01137551

CABLE ANCHOR, RH

Note: (For model 511, 514-517)

$

$

Not available

9

Ariens 01155751

CABLE ANCHOR-LH
(Superseded to 01245651)

Note: (For model 513)

$

$

Not available

10

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 1 left!

0

11

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

13

Ariens 06940100

THROTTLE CABLE

Note: (For model 511, 517)

$

$

Not available

14

Ariens 01141851

BRACE, SPEED CONTROL

$21.99

$

Usually ships in 4-12 days

0

15

Ariens 01137451

BRACKET, SPEED CONTROL
(Superseded to 51119700)

$23.99

$

Usually ships in 4-12 days

0

16

Ariens 01150051

LINK, HANDLEBAR ADJUSTMENT LH

Note: (For model 513-516)

$38.99

$

Usually ships in 4-12 days

0

16

Ariens 01150151

LINK, HANDLEBAR ADJUSTMENT RH

Note: (For model 513-516)

$27.99

$

Usually ships in 4-12 days

0

16

Ariens 01158651

BRACKET, HANDLEBAR

Note: (For model 511, 517)

$20.99

$

Usually ships in 4-12 days

0

17

Ariens 01178700

WASHER, BELLEVILLE YWZC

Note: (For model 513-516)

$2.49

$

In Stock, Qty 6

0

18

Ariens 05514900

BSHG-FLG .325X.500X.513X.875

Note: (For model 513-516)

$3.99

$

In Stock, Qty 12

0

19

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06222300

@BLT-RDHDSQNK .25-20X1.50 G5YZ
(Superseded to 06200331)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 07515900

KNOB, BALL 5/16-18 X 1.5

Note: (For model 511, 514-517)

$21.99

$

In Stock, only 2 left!

0

23

Ariens 01140800

ROD-SPEED CONTROL

Note: (For model 511, 514-517)

$42.99

$

Usually ships in 4-12 days

0

24

Ariens 06921200

TRACTION CABLE

Note: (For model 511, 514-517)

$42.99

$

In Stock, only 1 left!

0

25

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

27

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

Note: (For model 513-517)

$2.49

$

In Stock, Qty 20+

0

27

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

Note: (For model 511)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (For model 511, 514-517)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (For model 511, 514-517)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06306500

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

Note: (For model 511, 514-517)

$3.49

$

In Stock, only 1 left!

0

31

Ariens 01154800

PRESSURE FLANGE

Note: (For model 511, 514-517)

$7.99

$

Usually ships in 4-12 days

0

32

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (For model 511, 514-517)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06712400

@PIN-CTR .06X.50 EXTPRSQCT YWZ

Note: (For model 511, 514-517)

$3.99

$

Usually ships in 4-12 days

0

34

Ariens 01126100

SHIFT LINK

Note: (For model 511, 514-517)

$21.99

$

Usually ships in 4-12 days

0

35

Ariens 01123959

BELL CRANK, SPEED CONTROL
(Superseded to 04756800)

Note: (For model 511, 514-517)

$

$

Not available

36

Ariens 01123800

FRICTION WASHER

Note: (For model 511, 514-517)

$3.99

$

In Stock, Qty 20+

0

37

Ariens 01019800

CAP, 3/8 ROD YWZC

Note: (For model 511, 514-517)

$2.99

$

In Stock, Qty 15

0

38

Ariens 01139800

SWIVEL

Note: (For model 511, 514-517)

$16.99

$

Usually ships in 4-12 days

0

39

Ariens 06222200

@BLT-RHDSSQNK .38-16X1.25 G5YZ
(Superseded to 06200236)

Note: (For model 511, 514-517)

$2.49

$

In Stock, Qty 20+

0

40

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

Note: (For model 511, 514-517)

$0.99

$

In Stock, Qty 20+

0

41

Ariens 01173800

SUPPORT PAD
(Superseded to 04760400)

Note: (For model 511, 514-517)

$

$

Not available

42

Ariens 06815700

RVT .187X.575 DOME AL BLACK

Note: (For model 511, 514-517)

$1.49

$

In Stock, only 2 left!

0

43

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

Note: (For model 511, 514-517)

$0.99

$

Usually ships in 4-12 days

0

44

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (For model 511, 517)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 05964700

@BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

Note: (For model 511, 517)

$2.49

$

In Stock, only 1 left!

0

46

Ariens 06442300

@WSHR-FL-STL.250X.56X.049 YWZC

Note: (For model 511, 517)

$1.99

$

Usually ships in 4-12 days

0
