911510 (PRO 21 SCH) - Gravely 21" Walk-Behind Mower, 6hp Robin Subaru (SN: 000101 & Above) Handlebar And Controls Parts Diagram

21" Walk-Behind Mower, 6hp Robin Subaru

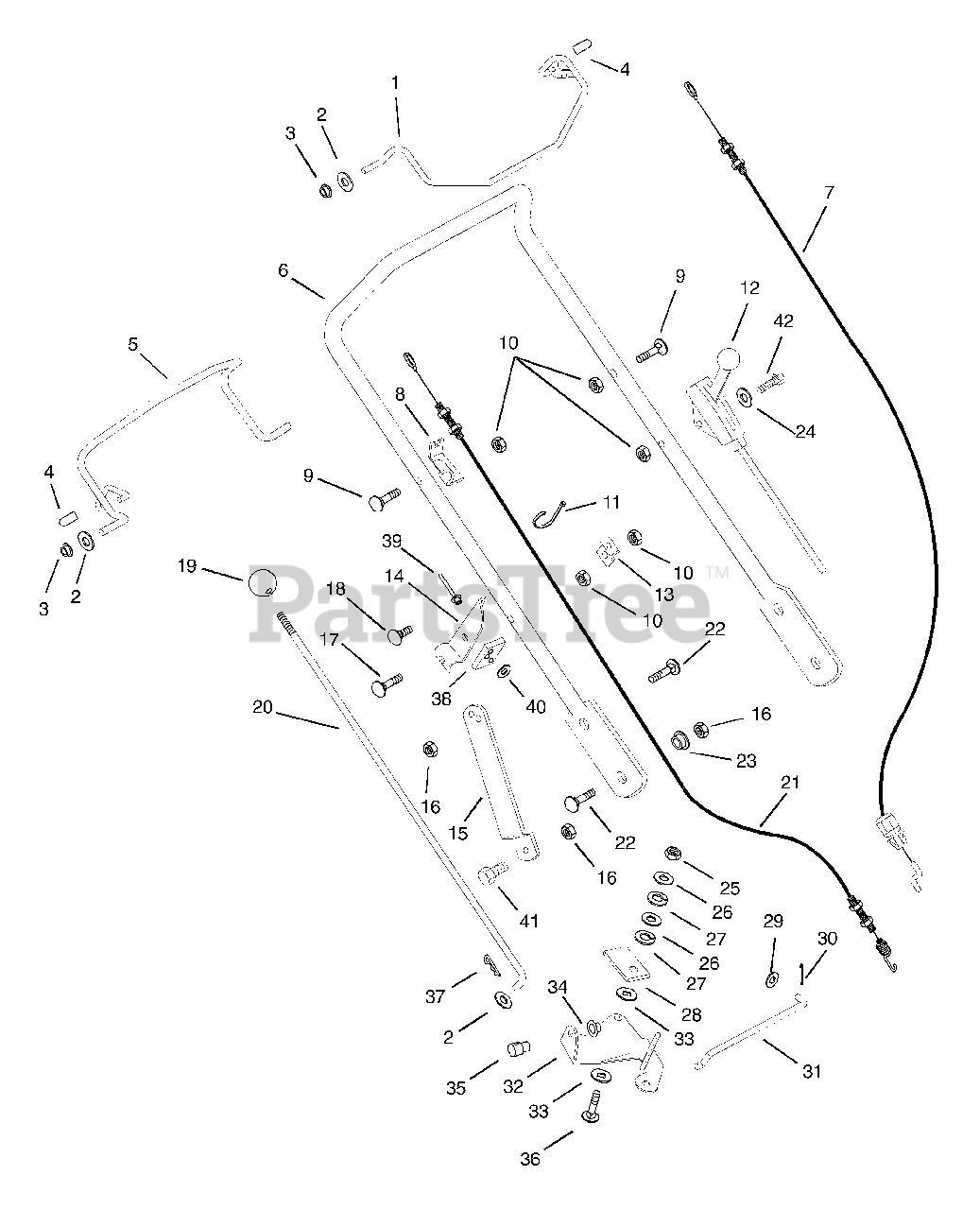

Handlebar And Controls Parts Diagram

  • Title

1

Gravely 01177251

Engine Bail Weldment

$

$

Not available

2

Gravely 06437200

Washer-Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 05514500

Bushing-Flange .325 x .688 x .560

$3.99

$

In Stock, Qty 20+

0

4

Gravely 07517000

Cap, Vinyl .25 I.D.

$3.49

$

In Stock, Qty 10

0

5

Gravely 01177051

Traction Bail
(Superseded to 51109900)

$190.99

$

Usually ships in 4-12 days

0

6

Gravely 01184851

Handlebar
(Superseded to 01245351)

$

$

Not available

7

Gravely 06937900

Engine Control Cable

$45.99

$

Usually ships in 4-12 days

0

8

Gravely 01137551

Cable Anchor-Right Hand

$

$

Not available

8

Gravely 01155751

Cable Anchor-Left Hand
(Superseded to 01245651)

$

$

Not available

9

Gravely 06220100

Bolt-Round Head Square Neck .25-20 x 1.25

$2.49

$

In Stock, only 1 left!

0

10

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

12

Gravely 06940100

Throttle Cable

$

$

Not available

13

Gravely 01141851

Brace-Speed Control

$21.99

$

Usually ships in 4-12 days

0

14

Gravely 01137451

Bracket-Speed Control
(Superseded to 51119700)

$23.99

$

Usually ships in 4-12 days

0

15

Gravely 01158651

Handlebar Bracket

$20.99

$

Usually ships in 4-12 days

0

16

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06222300

Bolt-Round Head Square Neck .25-20 x 1.38
(Superseded to 06200331)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06220600

Bolt-Round Head Square Neck .25-20 x .50
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 07515900

Knob

$21.99

$

In Stock, only 2 left!

0

20

Gravely 01140800

Rod-Speed Control

$42.99

$

Usually ships in 4-12 days

0

21

Gravely 06921200

Traction Cable

$42.99

$

In Stock, only 1 left!

0

22

Gravely 06216100

Bolt-Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 01305900

Shoulder Spacer

$2.49

$

In Stock, only 1 left!

0

24

Gravely 06442300

Washer-Flat-Steel .250 x .562 x .049

$1.99

$

Usually ships in 4-12 days

0

25

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06306500

Washer-Lock .375 x .115 Heavy
(Superseded to 06300120)

$3.49

$

In Stock, only 1 left!

0

28

Gravely 01154800

Pressure Flange

$7.99

$

Usually ships in 4-12 days

0

29

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06712400

Pin-Cotter .06 x .50

$3.99

$

Usually ships in 4-12 days

0

31

Gravely 01126100

Shift Link

$21.99

$

Usually ships in 4-12 days

0

32

Gravely 01123953

Bell Crank-Speed Control
(Superseded to 04756800)

$

$

Not available

33

Gravely 01123800

Friction Washer

$3.99

$

In Stock, Qty 20+

0

34

Gravely 036903

Cap, .38 Rod
(Superseded to 01019800)

$2.99

$

In Stock, Qty 15

0

35

Gravely 01139800

Swivel

$16.99

$

Usually ships in 4-12 days

0

36

Gravely 06222200

Bolt-Round Head Square Neck .38-16 x 1.50
(Superseded to 06200236)

$2.49

$

In Stock, Qty 20+

0

37

Gravely 06713500

Pin-Hair-Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 01173800

Support Pad
(Superseded to 04760400)

$

$

Not available

39

Gravely 06815700

Rivet .187 x .575

$1.49

$

In Stock, only 2 left!

0

40

Gravely 06442700

Washer-Flat Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

41

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 05964700

Bolt-Hex .250-20 x 1.75 Grade 5
(Superseded to 05901935)

$2.49

$

In Stock, only 1 left!

0
