911509 (LM 21 SC) - Ariens 21" Self-Propelled Walk-Behind Mower, 6hp Honda (SN: 001014 & Above) Mower Pan And Bag Parts Diagram

21" Self-Propelled Walk-Behind Mower, 6hp Honda

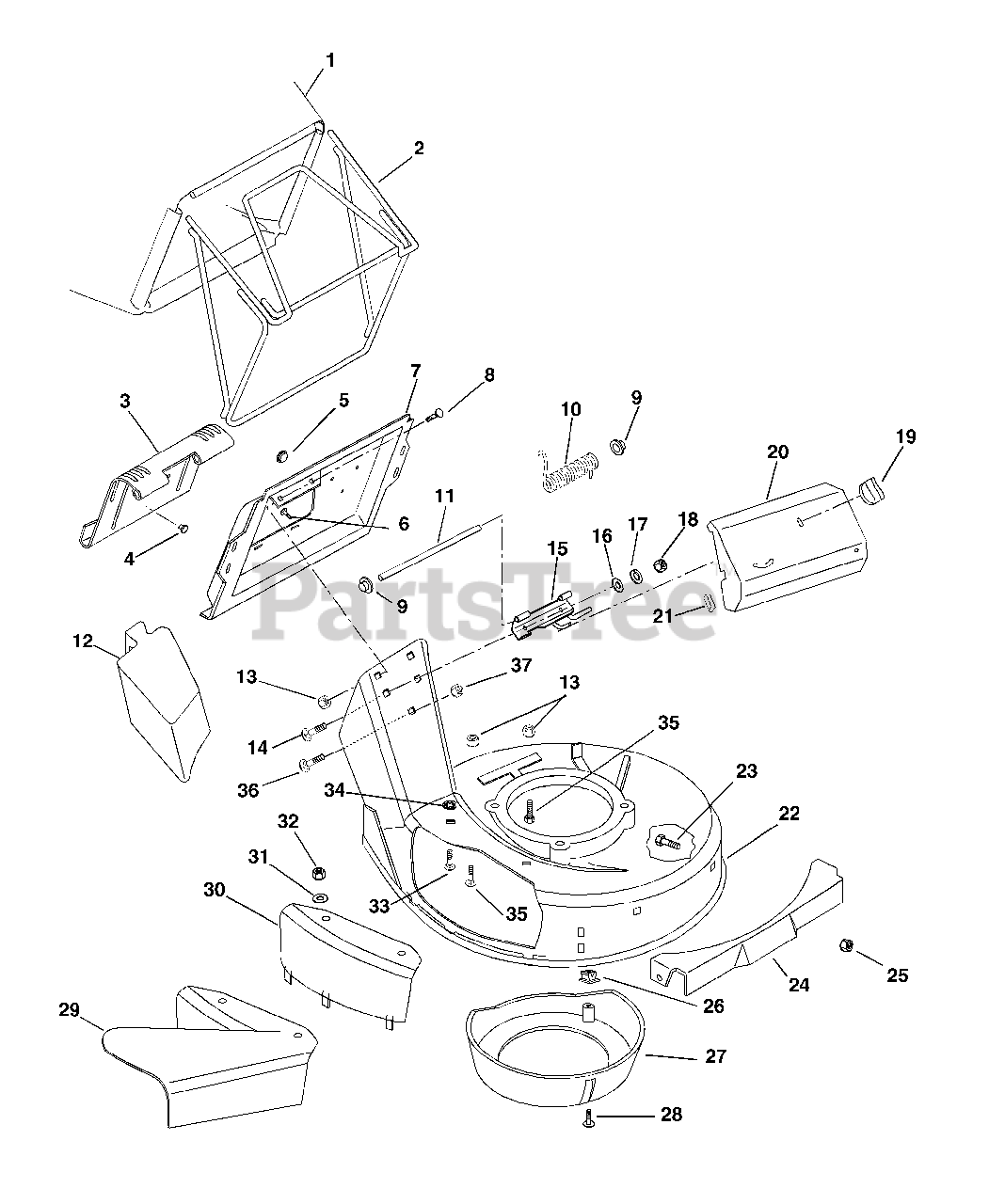

Mower Pan And Bag Parts Diagram

  • Title

1

Ariens 01180500

BAG, CONSUMER BLACK 15 OZ/YD2

$116.99

$

In Stock, only 1 left!

0

2

Ariens 01138751

FRAME, BAGGER
(Superseded to 01241851)

$142.99

$

Usually ships in 4-12 days

0

3

Ariens 01136559

CATCHER PLATE DOOR

$

$

Not available

4

Ariens 07516000

BUTTON BUMPER

$0.99

$

In Stock, Qty 14

0

5

Ariens 07511800

BUMPER

$3.49

$

Usually ships in 4-12 days

0

6

Ariens 07414900

SCR-TAP 10-24X.375 TORX PHD YZ

$3.49

$

Usually ships in 4-12 days

0

7

Ariens 01177759

PLATE, CATCHER

$38.99

$

Usually ships in 4-12 days

0

8

Ariens 06203900

@BLT-RHDSSQNK .25-20X.38 G2YZ

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 02215300

PUSH NUT, .25

$1.99

$

In Stock, Qty 16

0

10

Ariens 08322400

SG-TORS .120X.68X3.09

$6.99

$

Usually ships in 4-12 days

0

11

Ariens 01141000

DOOR PIN

$13.99

$

Usually ships in 4-12 days

0

12

Ariens 71102700

MULCH MASTER MULCHER ACCESSORY

$51.99

$

In Stock, only 1 left!

0

13

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 01155559

HINGE BASE WELDMENT

$40.99

$

Usually ships in 4-12 days

0

16

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

17

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

$

$

Not available

18

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

19

Ariens 01159300

WING - NUT

$

$

Not available

20

Ariens 01158859

COVER, DRIVE
(Superseded to 01158800)

$

$

Not available

21

Ariens 01155400

TRIM BUMPER
(Superseded to 01177300)

$6.99

$

Usually ships in 4-12 days

0

22

Ariens 51107300

PAN-MOWER W/DECALS COM 3SPD

$

$

Not available

23

Ariens 06222000

@BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

$2.99

$

In Stock, Qty 20+

0

24

Ariens 01183459

PANEL-FRONT, 3 SPD

$9.49

$

Usually ships in 4-12 days

0

25

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 07507600

PLASTIC GROMMET

$0.99

$

In Stock, Qty 10

0

27

Ariens 01173700

CENTER BAFFLE

$45.99

$

Usually ships in 4-12 days

0

28

Ariens 07415000

SCR-TAP 10-16X.62 SLPH AB YWZC

$

$

Not available

29

Ariens 01180200

SIDE DISCHARGE ASSEMBLY

$35.99

$

In Stock, only 1 left!

0

30

Ariens 01180351

COVER, SIDE DISCHARGE

$38.99

$

In Stock, only 4 left!

0

31

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

34

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

35

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 05967000

@BLT-HEX .38-16X.50 GR5 YWZC

$3.49

$

Usually ships in 4-12 days

0

37

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0
