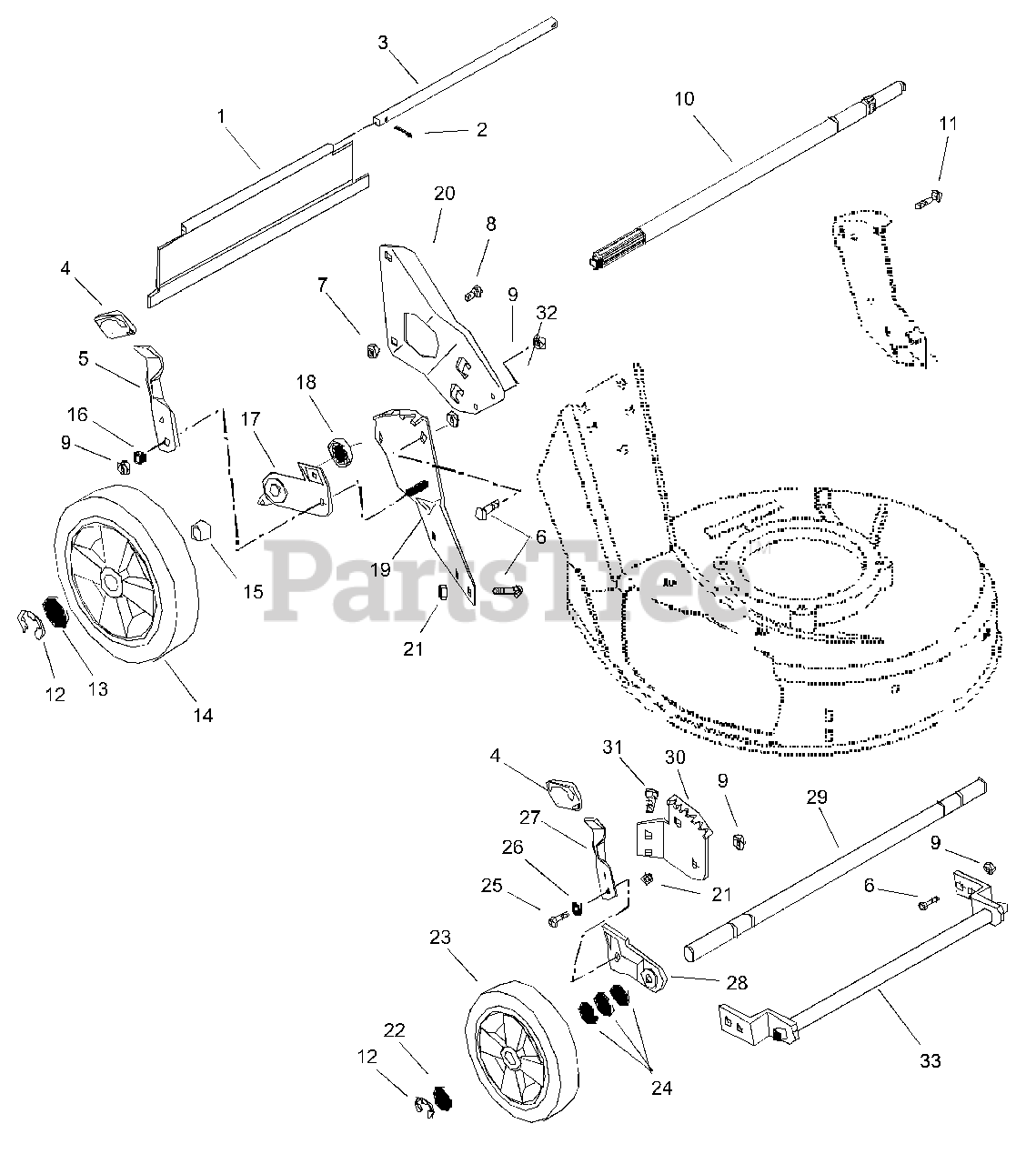

911503 (LM 21 M) - Ariens 21" Push Walk-Behind Mower, 6hp Briggs & Stratton (SN: 000101 & Above) Wheels And Adjusters Parts Diagram

21" Push Walk-Behind Mower, 6hp Briggs & Stratton

Wheels And Adjusters Parts Diagram

  • Title

1

Ariens 07522400

REAR PROTECTIVE GUARD, PUSH

Note: (Model 503)

$35.99

$

Usually ships in 4-12 days

0

1

Ariens 07522300

REAR PROTECTIVE GUARD, S.P.

Note: (Models 504-508, 511)

$45.99

$

In Stock, only 1 left!

0

2

Ariens 06712400

@PIN-CTR .06X.50 EXTPRSQCT YWZ

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 01140000

ROD
(Superseded to 01140067)

$46.99

$

Usually ships in 4-12 days

0

4

Ariens 07513600

KNOB

$7.99

$

In Stock, only 2 left!

0

5

Ariens 01130600

HEIGHT ADJUSTMENT LEVER
(Superseded to 01242000)

$25.99

$

In Stock, only 1 left!

0

6

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 01167100

HANDLEBAR STUD

$21.99

$

Usually ships in 4-12 days

0

9

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 01149500

REAR AXLE,5/8 DIA

$140.99

$

Usually ships in 4-12 days

0

10

Ariens 01171900

REAR AXLE-PUSH MOWER MM

Note: (Model 503)

$50.99

$

Usually ships in 4-12 days

0

10

Ariens 01168800

REAR AXLE-PUSH MOWER

Note: (Model 503)

$

$

Not available

11

Ariens 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

12

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 07106100

LH WHEEL
(Superseded to 51115900)

Note: (Models 504-508, 511)

$116.99

$

In Stock, only 1 left!

0

14

Ariens 07106300

RH WHEEL
(Superseded to 51115900)

Note: (Models 504-508, 511)

$116.99

$

In Stock, only 1 left!

0

14

Ariens 07138100

TIRE 10X1.75

Note: (Model 503)

$

$

Not available

14

Ariens 07103900

10 1/2 TIRE SKIN
(Superseded to 51115900)

Note: (Models 504-508, 511)

$116.99

$

In Stock, only 1 left!

0

15

Ariens 01149700

SPACER TUBE,PUSH LH

Note: (Model 503)

$12.99

$

Usually ships in 4-12 days

0

15

Ariens 01149800

SPACER TUBE PUSH RH

Note: (Model 503)

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 01149600

SPACER TUBE, SELF PROPEL

Note: (Models 504-508, 511)

$3.99

$

Usually ships in 4-12 days

0

16

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 3 left!

0

17

Ariens 01131300

REAR BRACKET & BEARING ASSEMBL

Note: (Model 503)

$60.99

$

Usually ships in 4-12 days

0

17

Ariens 01131200

REAR BRACKET & BEARING ASSEMBL

Note: (Model 503)

$53.99

$

Usually ships in 4-12 days

0

17

Ariens 01158100

R.H. REAR ADJUSTOR BRACKET

Note: (Models 508, 511)

$62.99

$

Usually ships in 4-12 days

0

17

Ariens 01158200

L.H. REAR ADJUSTOR BRACKET

Note: (Models 508, 511)

$54.99

$

Usually ships in 4-12 days

0

17

Ariens 01130700

REAR ADJUSTMENT BRACKET L.H.

Note: (Models 503-507)

$

$

Not available

17

Ariens 01150400

REAR BRACKET & BEARING ASSY RH

Note: (Models 504-507)

$112.99

$

Usually ships in 4-12 days

0

18

Ariens 05417600

BRG-BALL .625X1.383X.50
(Superseded to 05417500)

Note: (Models 508, 511)

$17.99

$

Usually ships in 4-12 days

0

19

Ariens 01154200

QUADRANT, REAR - L.H.
(Superseded to 01154251)

$62.99

$

In Stock, only 1 left!

0

19

Ariens 01154300

REAR QUADRANT, R.H.
(Superseded to 01154351)

$55.99

$

Usually ships in 4-12 days

0

20

Ariens 01137200

RH HANDLEBAR MTG. BRKT.
(Superseded to 01137251)

Note: (Models 503-508)

$50.99

$

In Stock, only 1 left!

0

20

Ariens 01177400

RH HANDLEBAR MOUNT WELDMENT
(Superseded to 01177451)

Note: (Model 511)

$

$

Not available

20

Ariens 01137100

LH HANDLEBAR MTG. BRKT.
(Superseded to 01137151)

Note: (Models 503-508)

$55.99

$

Usually ships in 4-12 days

0

20

Ariens 01177500

LH HANDLEBAR MOUNT BRKT WELDM
(Superseded to 01177551)

Note: (Model 511)

$155.99

$

Usually ships in 4-12 days

0

21

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 07120100

WHEEL
(Superseded to 51116000)

Note: (Models 504-508, 511)

$67.99

$

In Stock, only 1 left!

0

23

Ariens 07138000

TIRE 7X1.50

Note: (Model 503)

$10.99

$

Usually ships in 4-12 days

0

24

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

Note: (Models 503-505, 508, 511)

$2.49

$

In Stock, only 1 left!

0

25

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

Note: (Models 503-505, 508, 511)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 3 left!

0

27

Ariens 01120000

FRONT HEIGHT ADJUSTMENT LEVER

Note: (Models 503-505, 508, 511)

$20.99

$

In Stock, only 1 left!

0

28

Ariens 01119800

LEFT ADJUSTOR BRACKET ASSEMBLY

Note: (Models 503-505, 508)

$83.99

$

Usually ships in 4-12 days

0

28

Ariens 01119900

RIGHT ADJUSTOR BRACKET ASSEMBL

Note: (Models 503-505, 508)

$64.99

$

In Stock, only 1 left!

0

28

Ariens 01176800

RH ADJUSTER BRACKET

Note: (Model 511)

$64.99

$

Usually ships in 4-12 days

0

28

Ariens 01176900

LH ADJUSTER BRACKET

Note: (Model 511)

$48.99

$

Usually ships in 4-12 days

0

29

Ariens 01168900

FRONT AXLE

Note: (Models 503-505, 508, 511)

$64.99

$

Usually ships in 4-12 days

0

30

Ariens 01154151

FRONT QUADRANT, RH

Note: (Models 503-505, 508, 511)

$

$

Not available

30

Ariens 01154051

FRONT QUADRANT, LH

Note: (Models 503-505, 508, 511)

$51.99

$

In Stock, only 1 left!

0

31

Ariens 06222000

@BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

Note: (Models 503-505, 508, 511)

$2.99

$

In Stock, Qty 20+

0

32

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 01156000

DETHATCHER RETAINER WELDMENT
(Superseded to 01242751)

Note: (Models 508, 511)

$170.99

$

In Stock, only 1 left!

0
