911502 (LM 18) - Ariens 18" Self-Propelled Walk-Behind Mower, 4hp Briggs & Stratton (SN: 000101 & Above) Engine And Blade Parts Diagram

18" Self-Propelled Walk-Behind Mower, 4hp Briggs & Stratton

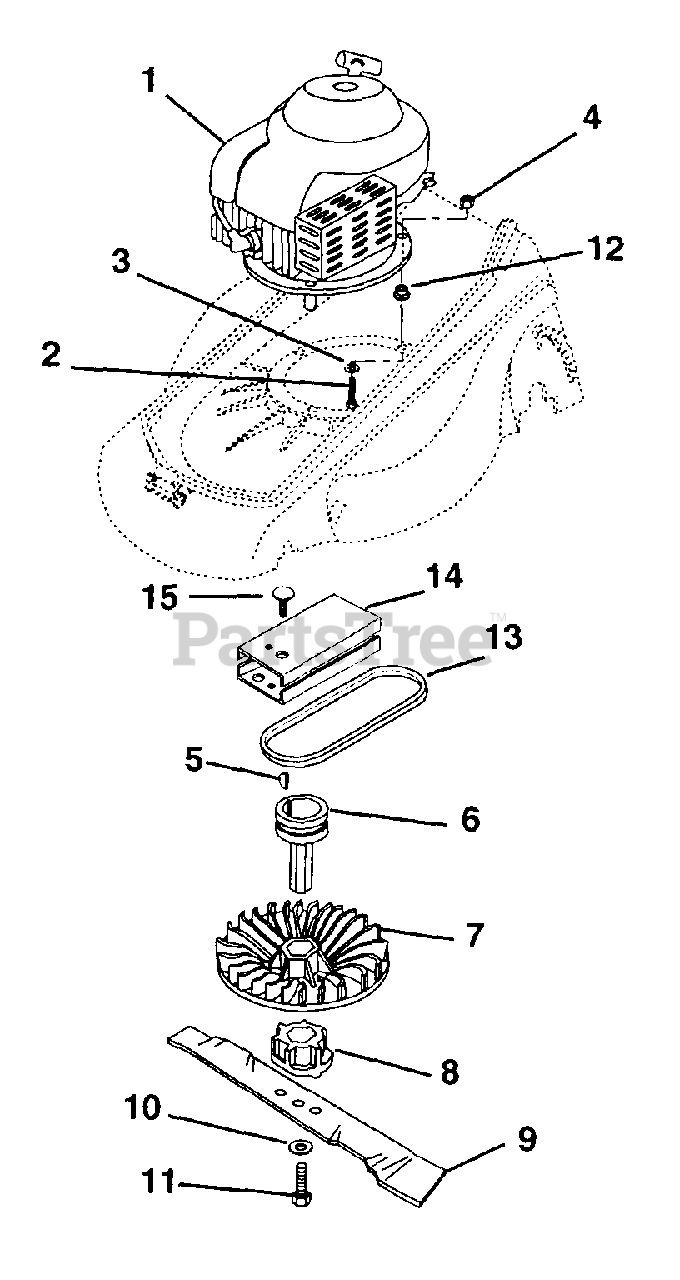

Engine And Blade Parts Diagram

  • Title

1

Ariens 01430100

ENGINE, B&S SPRINT 4HP F.S.L.S

Note: Briggs-Stratton Sprint 4HP Fixed Speed Long Shaft

$

$

Not available

2

Ariens 01430200

BOLT, M8X50 GRD 8

$

$

Not available

3

Ariens 01436900

WASHER, ENGINE MOUNT

$

$

Not available

4

Ariens 01434000

NUT, LK M8

$

$

Not available

5

Ariens 01433900

KEY-WDRF 4X6.5MM

$3.49

$

Usually ships in 4-12 days

0

6

Ariens 01430000

PULLEY, TRANSMISSION DRIVE

$

$

Not available

7

Ariens 01434251

FAN, COOLING

$

$

Not available

8

Ariens 01434100

ADAPTER, BLADE

$

$

Not available

9

Ariens 01433600

BLADE, MULCHING

$

$

Not available

10

Ariens 01433800

WASHER, BELLEVILLE 10.5X23X2.5

$

$

Not available

11

Ariens 01439700

BOLT, .375X24X2

$

$

Not available

12

Ariens 01439900

BUSHING, ENGINE MOUNT

$

$

Not available

13

Ariens 01436800

BELT, V TRANMSN DRV SPZ-787 4L

$

$

Not available

14

Ariens 01441700

COVER, V BELT

$

$

Not available

15

Ariens 01441800

PIN, V BELT COVER ANCHOR

$

$

Not available
