9115-0 - Craftsman 2,400 Watt Portable Generator Cradle No. 76225A Parts Diagram

2,400 Watt Portable Generator

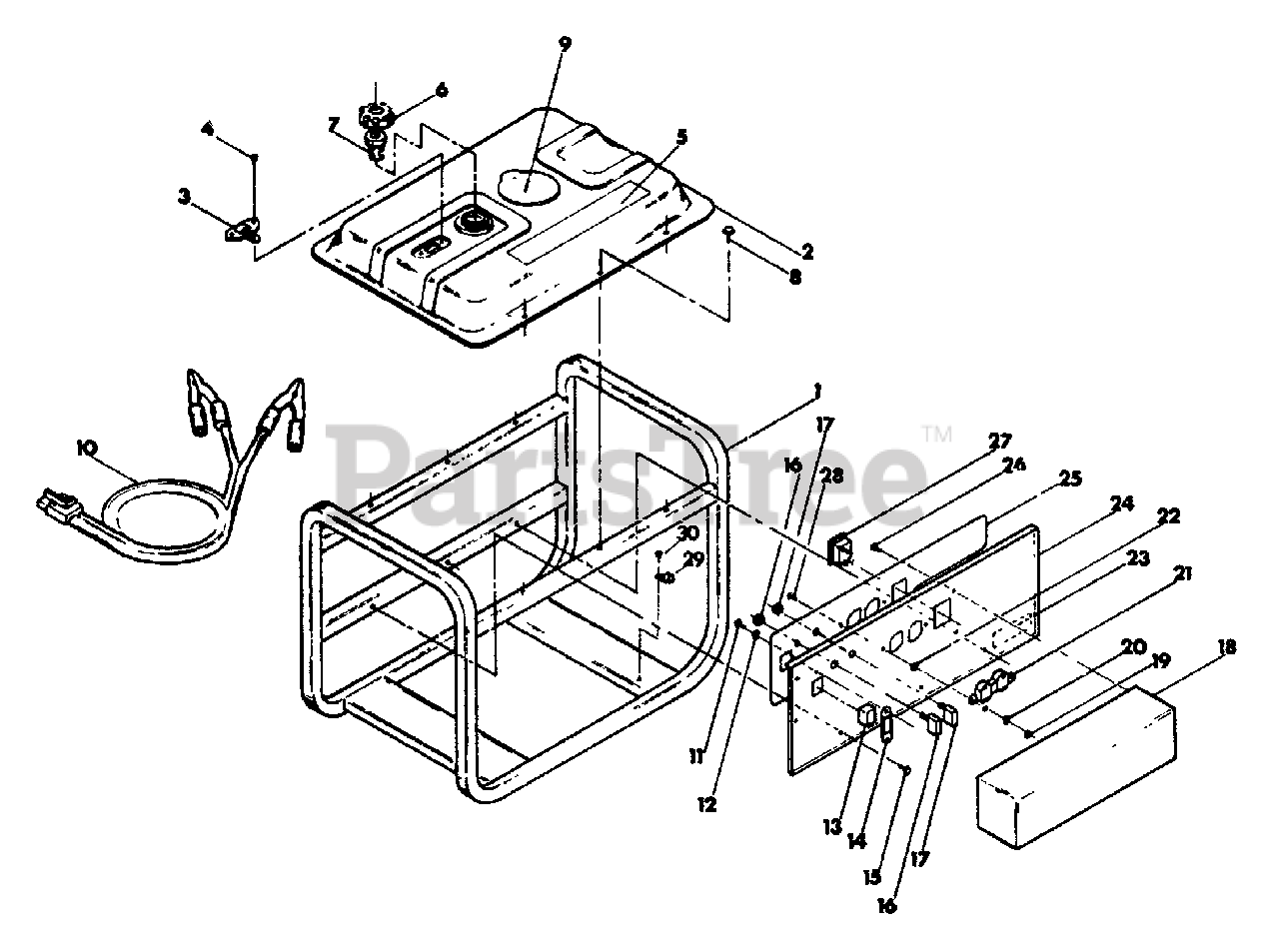

Cradle No. 76225A Parts Diagram

  • Title

1

Briggs & Stratton 75931

CRADLE ASSEMBLY

Note: Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 69661

TANK, FUEL

Note: Contact Generac for quantity required

$

$

Not available

3

Briggs & Stratton 66391B

GAUGE, FUEL LEVEL

Note: Contact Generac for quantity required

$

$

Not available

4

Briggs & Stratton 52749

SCR., PAQN HD.-M5-0.80 x 12MM

Note: Contact Generac for quantity required

$

$

Currently unavailable

5

Briggs & Stratton 70365

DECAL-PORTABLE INFORMATION

Note: Contact Generac for quantity required

$

$

Currently unavailable

6

Briggs & Stratton 69658

CAP, FUEL TANK

Note: Contact Generac for quantity required

$

$

Currently unavailable

7

Briggs & Stratton 70630

STRAINER, FUEL TANK FILL

Note: Contact Generac for quantity required

$

$

Currently unavailable

8

Briggs & Stratton 56892

SCR., (CRIMPTITE)-NO. 10-32 x 3/8"
(Superseded to 56892GS)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 64680B

COVER, SPARK PLUG ACCESS
(Superseded to 64680BGS)

Note: Contact Generac for quantity required

$7.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 65787

CABLE, BATTERY CHARGE

Note: Contact Generac for quantity required

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 70728

SCR., PAN HD.-M3-0.50 x 5MM

Note: Contact Generac for quantity required

$

$

Currently unavailable

12

Briggs & Stratton 43182

LOCKWASHER-M3
(Superseded to 43182GS)

Note: Contact Generac for quantity required

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66821

RECEPTACLE, BATTERY CHARGE
(Superseded to 66821GS)

Note: Contact Generac for quantity required

$21.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 68822

RETAINER, RECEPTACLE

Note: Contact Generac for quantity required

$

$

Currently unavailable

15

Briggs & Stratton 75494

SCR. SELF TAPPING-NO. 10-24

Note: Contact Generac for quantity required

$

$

Not available

16

Briggs & Stratton 75207B

BREAKER, CIRCUIT-10AMP
(Superseded to 75207BGS)

Note: Contact Generac for quantity required

$12.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 75207D

BREAKER, CIRCUIT-15AMP (2)
(Superseded to 75207DGS)

Note: Contact Generac for quantity required

$13.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 75935

COVER, BACK PANEL

Note: Contact Generac for quantity required

$

$

Currently unavailable

19

Briggs & Stratton 22471

NUT, HEX-NO. 8-32
(Superseded to 22471GS)

Note: Contact Generac for quantity required

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22264

LOCKWASHER-NO. 8

Note: Contact Generac for quantity required

$

$

Not available

21

Briggs & Stratton 76248

RECEPTACLE (DUPLEX TYPE)- 120V.

Note: Contact Generac for quantity required

$

$

Currently unavailable

22

Briggs & Stratton 23365

WASHER, SHAKE-PROOF-NO.8
(Superseded to 5023365)

Note: Contact Generac for quantity required

$462.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 29084

DECAL-USDA

Note: Contact Generac for quantity required

$

$

Currently unavailable

24

Briggs & Stratton 75934A

PANEL ASSEMBLY

Note: Contact Generac for quantity required

$

$

Currently unavailable

25

Briggs & Stratton 75923A

DECAL-PANEL

Note: Contact Generac for quantity required

$

$

Currently unavailable

26

Briggs & Stratton 63036

SCR. (CRIMPTITE)- NO. 8-32 x 1/4"
(Superseded to 63036GS)

Note: Contact Generac for quantity required

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 66817

SWITCH (WITH AC ON LAMP)
(Superseded to 66817GS)

Note: Contact Generac for quantity required

$39.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 36917

SCREW, PAN HEAD-NO. 8-32 x 3/8"
(Superseded to 797483)

Note: Contact Generac for quantity required

$4.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 25433

GROUNDING LUG

Note: Contact Generac for quantity required

$

$

Not available

30

Briggs & Stratton 56892

SCREW-CRIMPTITE
(Superseded to 56892GS)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0
