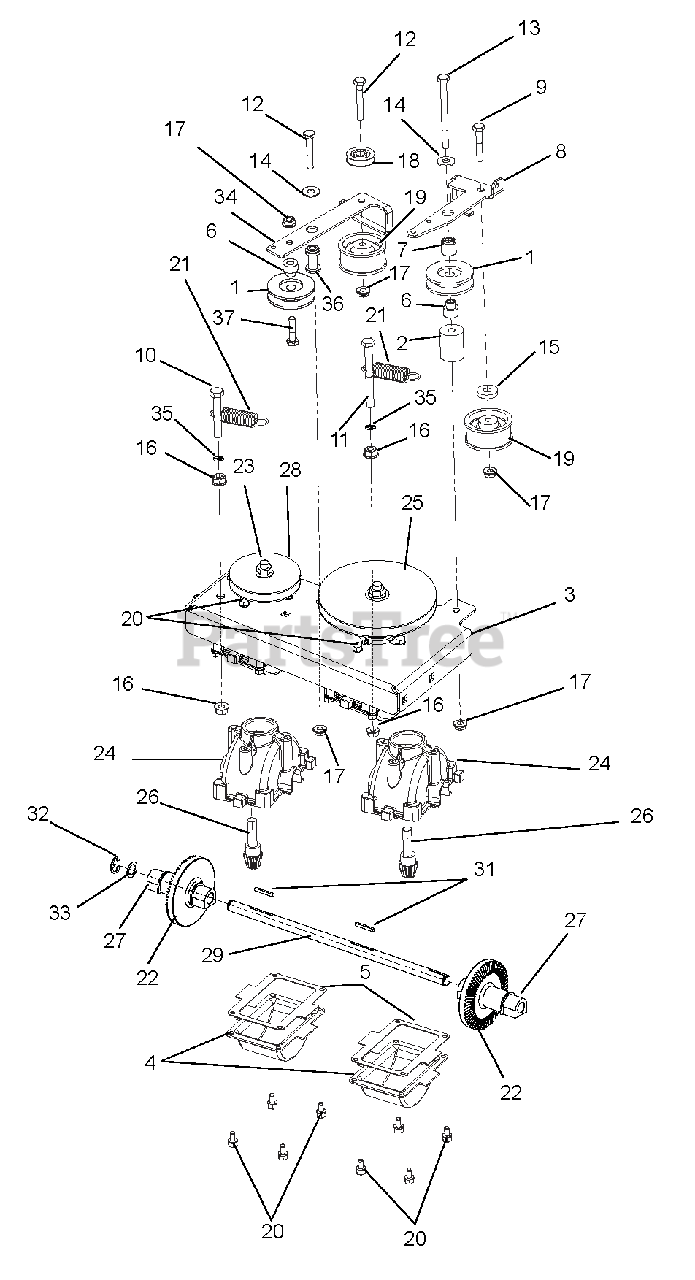

911413 - Ariens 34" Walk-Behind Mower, 14.5hp Briggs & Stratton, Gear (SN: 013000 & Above) Transmission Parts Diagram

34" Walk-Behind Mower, 14.5hp Briggs & Stratton, Gear

Transmission Parts Diagram

  • Title

1

Ariens 00444400

IDLER, 3L FRONT SIDE .38X1.875

$22.99

$

In Stock, Qty 6

0

2

Ariens 01247300

SPACER, REVERSE IDLER

$

$

Not available

3

Ariens 04288700

PLATE, TRANSMISSION MOUNT

$

$

Not available

4

Ariens 01255251

SUMP, GEARBOX

$38.99

$

Usually ships in 4-12 days

0

5

Ariens 01256400

GASKET, TRANSMISSION

$15.99

$

Usually ships in 4-12 days

0

6

Ariens 01258900

SPACER, V-IDLER PULLEY

$3.99

$

In Stock, only 2 left!

0

7

Ariens 01259000

SPACER, IDLER ARM

$3.99

$

In Stock, only 1 left!

0

8

Ariens 03279300

BRKT-TRANS IDLER ARM

$23.99

$

Usually ships in 4-12 days

0

9

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05948000

@BLT-HEX .31-18X3.50 GR5 YWZC

$

$

Not available

12

Ariens 05964700

@BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, only 1 left!

0

13

Ariens 05965300

@BLT-HEX .25-20X3.25 YWZC

$

$

Not available

14

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

16

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 7

0

19

Ariens 07300435

PULLEY, ILDER .25X1.875X.97

$20.99

$

In Stock, Qty 6

0

20

Ariens 07400033

SCR-TAP 10-24X.375 PRE-COAT 80
(Superseded to 07400137)

$3.49

$

Usually ships in 4-12 days

0

21

Ariens 08300435

SPRG, TENSION .063X.625X2.50

$

$

Not available

22

Ariens 01290400

GEAR, BEVEL (CU INFL, KEYWAY)

$55.99

$

In Stock, only 1 left!

0

23

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 01255000

HOUSING, WBLM GEAR BOX

$67.99

$

Usually ships in 4-12 days

0

25

Ariens 01247500

PULLEY, WAW REVERSE INPUT

$68.99

$

Usually ships in 4-12 days

0

26

Ariens 01255500

PINION, GEARBOX INPUT

$64.99

$

In Stock, only 1 left!

0

27

Ariens 01255300

BUSHING, TRANS OUTPUT SHAFT

$5.99

$

Usually ships in 4-12 days

0

28

Ariens 01326500

PULLEY, WAW INPUT

$234.99

$

Usually ships in 4-12 days

0

29

Ariens 03294200

SHAFT-TRANS OUTPUT

$

$

Not available

30

Ariens 51113600

KIT, WAW TRANSMISSION SHAFT

Note: (includes 30, 32, 33 and 34)

$176.99

$

Usually ships in 4-12 days

0

31

Ariens 06600211

KEY, 1/8 X 1/8 X 1.0

$2.49

$

Usually ships in 4-12 days

0

32

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

34

Ariens 04273600

ARM, DOUBLE ACTING IDLER

$38.99

$

Usually ships in 4-12 days

0

35

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

36

Ariens 04288800

PIVOT, IDLER

$14.99

$

Usually ships in 4-12 days

0

37

Ariens 05947400

@BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0
