911413 - Ariens 34" Walk-Behind Mower, 14.5hp Briggs & Stratton, Gear (SN: 013000 & Above) Controls Parts Diagram

34" Walk-Behind Mower, 14.5hp Briggs & Stratton, Gear

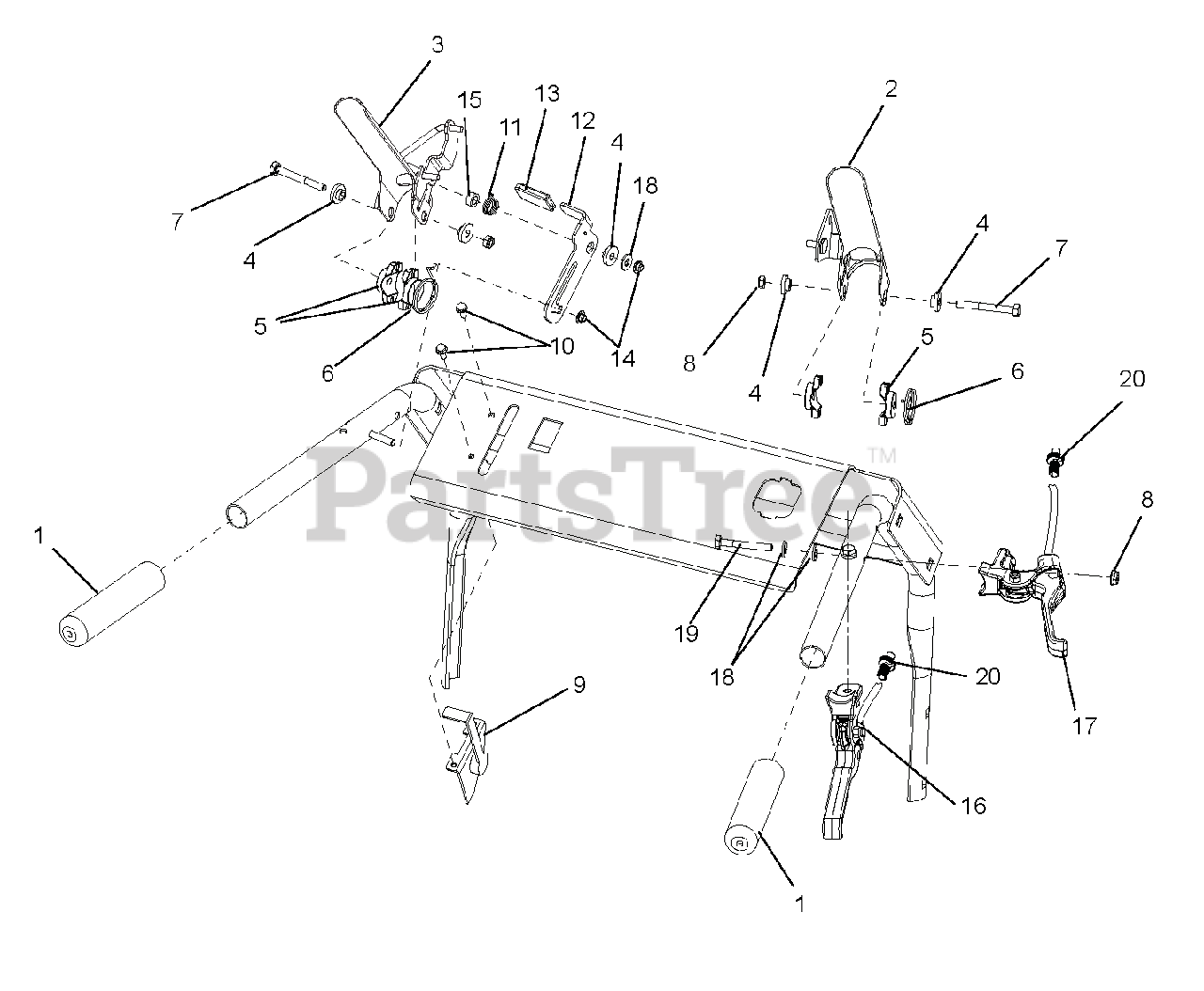

Controls Parts Diagram

  • Title

1

Ariens 07518700

HANDLE GRIP
(Superseded to 07500239)

$3.99

$

In Stock, Qty 20+

0

2

Ariens 01288751

PADDLE, P-BRAKE

$45.99

$

Usually ships in 4-12 days

0

3

Ariens 01327251

HANDLEBAR, CE LH (WELDMENT)

$

$

Not available

4

Ariens 00399300

BSHG, FLG .266X.42X.150 PM

$

$

Not available

5

Ariens 05500040

SPACER, HANDLEBAR

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 08300026

SPRING, TORSION

$5.99

$

Usually ships in 4-12 days

0

7

Ariens 05956700

@BLT-HEX .25-20X2.25 GR5 YWZC
(Superseded to 05901636)

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 06530900

NUT-JAM-NYL .250-20 W/INSERTYZ

$0.99

$

In Stock, Qty 9

0

9

Ariens 06900415

CABLE, WAW THROTTLE

$25.99

$

In Stock, only 3 left!

0

10

Ariens 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

11

Ariens 08300014

SG-TORS

$1.49

$

In Stock, Qty 20+

0

12

Ariens 03283000

BRKT-LEVER, INTERLOCK

$

$

Not available

13

Ariens 04928700

GRIP, THUMB LATCH

$

$

Not available

14

Ariens 02215300

PUSH NUT, .25

$1.99

$

In Stock, Qty 16

0

15

Ariens 01252600

TUBE-SPACER .33X.50X.XX

$

$

Not available

16

Ariens 06900329

CONTROL-LEVER W/CABLE FORWARD

$39.99

$

In Stock, only 1 left!

0

17

Ariens 06900330

CONTROL-LEVER W/CABLE REVERSE

$39.99

$

In Stock, only 1 left!

0

18

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 05967100

@BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

20

Ariens 06900401

CABLE ADJUSTER, STEEL

Note: (Service Only)

$5.99

$

Usually ships in 4-12 days

0
