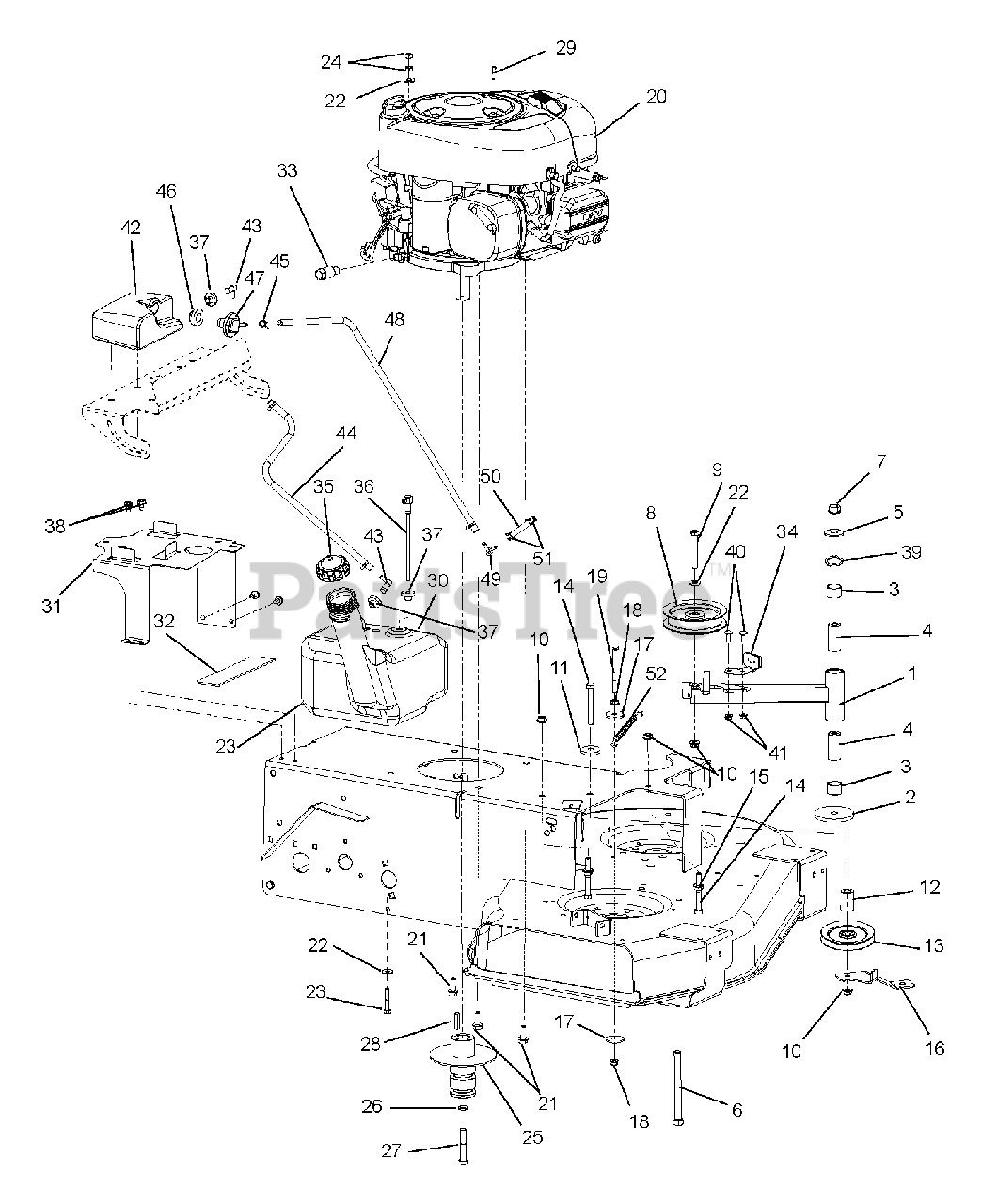

911412 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 14.5hp Briggs & Stratton (SN: 013000 & Above) Engine, Clutch And Idler Parts Diagram

34" Wide-Area Walk-Behind Mower, 14.5hp Briggs & Stratton

Engine, Clutch And Idler Parts Diagram

  • Title

1

Gravely 03938951

Weldment, PTO Idler Arm

$

$

Not available

2

Gravely 06400011

Washer, Flat .531 x 3.00 x .25

$17.99

$

Usually ships in 4-12 days

0

3

Gravely 05435800

Bearing 1.00 x 1.12 x .75

$9.49

$

In Stock, Qty 10

0

4

Gravely 01581700

Bushing, Spacer .505/.500 x .999/.996 x 2.05/2.03

$5.99

$

In Stock, Qty 20+

0

5

Gravely 06436400

Washer, Flat Steel .511 x 1.44 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

6

Gravely 05964100

Bolt, Hex .50-13 x 5.50
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07300039

Idler, Flat .38 x 4.00 x 1.06
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

9

Gravely 05961400

Bolt, Hex .38-16 x 2.75
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

10

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 05501003

Spacer, .437 x 1.00 x 1.23

$31.99

$

Usually ships in 4-12 days

0

13

Gravely 07300528

Idler, 4.00 x .38

$39.99

$

In Stock, only 2 left!

0

14

Gravely 05957800

Bolt, Hex .38-16 x 3.00
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 01286751

Bracket, Idler Brace

$64.99

$

Usually ships in 4-12 days

0

17

Gravely 06442400

Washer, Flat Steel .406 x 1.375 x .135
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

18

Gravely 06530400

Nut, Spin-Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05948000

Bolt, Hex .31-18 x 3.50

$

$

Not available

20

Gravely 08200620

Engine, Briggs & Stratton, 14.5Hp

$

$

Not available

21

Gravely 07414100

Screw, Hex Washer Head Tapping .38-16 x 1.00 (Torque = 374 – 562 lbf-in (42.26 – 63.5 Nm))
(Superseded to 07417500)

Note: (Torque = 374 – 562 lbf-in (42.26 – 63.5 Nm))

$3.99

$

In Stock, only 2 left!

0

22

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05957400

Bolt, Hex .31-18 x 1.75
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

24

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 07332500

Pulley, Deck Drive

$193.99

$

Usually ships in 4-12 days

0

26

Gravely 06309300

Washer, Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

27

Gravely 05900036

Bolt, Hex .44-20 x 2.50 (Torque = 394 – 590 lbf-in (44.52 – 66.66 Nm))

Note: (Torque = 394 – 590 lbf-in (44.52 – 66.66 Nm))

$13.99

$

In Stock, only 1 left!

0

28

Gravely 06603400

Key, Square .25 x 1.25 x .25

$3.99

$

In Stock, Qty 11

0

29

Gravely 06100206

Screw, 8-16 x .87 Pan Head 3-Lobe (Use to attach 03276500 Engine Guard – Not Shown)

Note: (Use to attach 03276500 Engine Guard – Not Shown)

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 04191900

Tank, Fuel
(Superseded to 05244700)

$162.99

$

Usually ships in 4-12 days

0

31

Gravely 03985851

Bracket, Gas Tank Mount

$90.99

$

Usually ships in 4-12 days

0

32

Gravely 03988500

Pad, Gas Tank

$

$

Not available

33

Gravely 03943600

Drain, Oil

$11.99

$

In Stock, only 3 left!

0

34

Gravely 04457700

Assembly, Brake Pad
(Superseded to 51115700)

$56.99

$

In Stock, only 1 left!

0

35

Gravely 04238500

Fuel Cap
(Superseded to 09190200)

$18.99

$

In Stock, Qty 20+

0

36

Gravely 03798300

Assembly, Pickup, Fuel 6.5L
(Superseded to 04333600)

$15.99

$

In Stock, Qty 13

0

37

Gravely 07500206

Bushing, Flange .375 x 1.062 x .625

$2.49

$

In Stock, Qty 20+

0

38

Gravely 07411500

Screw, Tapping .31-18 x .50 Hex Washer Head
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 09250700

Washer, Wave 1.09 x 1.37 x .016

$3.49

$

In Stock, only 1 left!

0

40

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 18

0

41

Gravely 06543500

Nut, Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 04400000

Tank, Fuel Expansion

$47.99

$

Usually ships in 4-12 days

0

43

Gravely 04382700

Fitting, Straight Fuel Plastic

$5.99

$

Usually ships in 4-12 days

0

44

Gravely 03278100

Fuel Line

$1.49

$

In Stock, Qty 20+

0

45

Gravely 06939100

Hose Clamp

$3.99

$

In Stock, Qty 10

0

46

Gravely 04082700

Grommet, Remote Vent

$3.49

$

In Stock, Qty 9

0

47

Gravely 04246000

Vent, Roll-Over

$20.99

$

Usually ships in 4-12 days

0

48

Gravely 03278100

Fuel Line

$1.49

$

In Stock, Qty 20+

0

49

Gravely 04097000

Adapter

$14.99

$

Usually ships in 4-12 days

0

50

Gravely 03375900

3/16 ID Fuel Line

$0.99

$

Usually ships in 4-12 days

0

51

Gravely 04097700

Hose Clamps

$

$

Not available

52

Gravely 08334900

Spring, Engine

$28.99

$

In Stock, Qty 8

0
