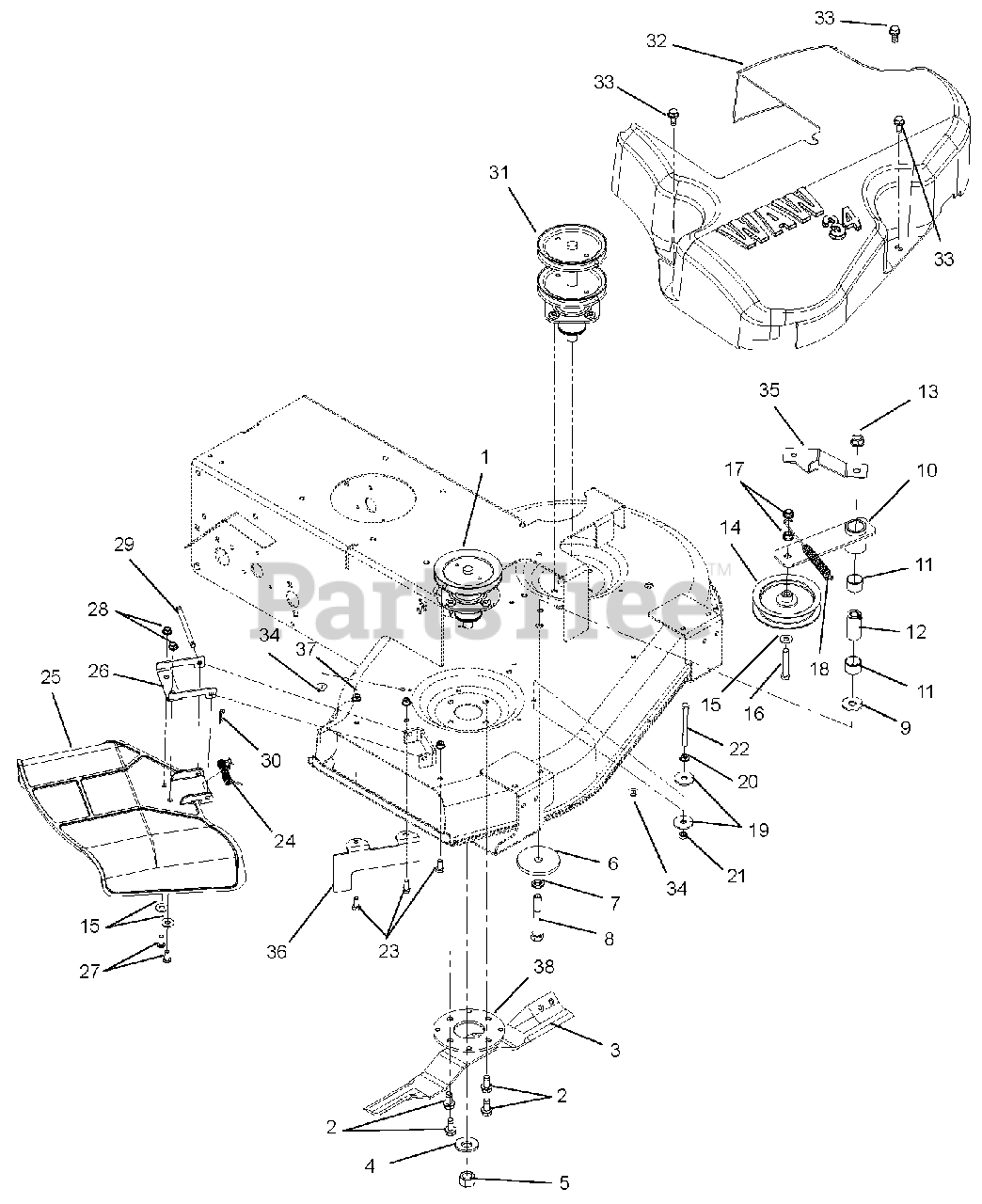

911412 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 14.5hp Briggs & Stratton (SN: 000101 - 012999) Deck Parts Diagram

34" Wide-Area Walk-Behind Mower, 14.5hp Briggs & Stratton

Deck Parts Diagram

  • Title

1

Gravely 51519500

Kit, Deck Spindle Assembly (34/50)

Note: (34/50)

$156.99

$

In Stock, Qty 7

0

2

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head (Torque = 324 – 420 lbf-in (36.61 – 47.45 Nm))
(Superseded to 07400129)

Note: (Torque = 324 – 420 lbf-in (36.61 – 47.45 Nm))

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03746500

Blade-17.2" x .156
(Superseded to 03971900)

$23.99

$

In Stock, Qty 20+

0

4

Gravely 06445700

Washer, Bellville .63 x 1.62 x .14

$4.99

$

In Stock, only 3 left!

0

5

Gravely 06500630

Nut, Hex .62-18 (Torque = 100-120 lbf-ft (135.6-162.7 Nm))
(Superseded to 06500920)

Note: (Torque = 100-120 lbf-ft (135.6-162.7 Nm))

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06400011

Washer, Flat .531 x 3.00 x .25

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 06307300

Washer, Locking .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

8

Gravely 05965800

Bolt, Hex .50-13 x 3.50
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

9

Gravely 06436400

Washer, Flat Steel .511 x 1.44 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 01248251

Arm, WAW Deck Idler

$

$

Not available

11

Gravely 05435800

Bearing 1.00 x 1.12 x .75

$9.49

$

In Stock, Qty 6

0

12

Gravely 01581700

Bushing, Spacer .505/.500 x .999/.996 x 2.05/2.03

$5.99

$

In Stock, Qty 20+

0

13

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 07300039

Idler, Flat .38 x 4.00 x 1.06
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

15

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 05962900

Bolt, Hex .38-16 x 2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

17

Gravely 06534800

Nut, Locking Flange .375-16
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 08334900

Spring, Engine-Transmission

$28.99

$

In Stock, Qty 8

0

19

Gravely 06442400

Washer, Flat Steel .406 x 1.375 x .135
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

20

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 05948000

Bolt, Hex .31-18 x 3.50

$

$

Not available

23

Gravely 05947000

Bolt, Hex .31-18 x .75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 01258100

Spring, Torsion

$9.49

$

In Stock, Qty 8

0

25

Gravely 03994300

Chute, Side Discharge

$54.99

$

In Stock, only 1 left!

0

26

Gravely 00662651

Reinforcement, Chute

$22.99

$

Usually ships in 4-12 days

0

27

Gravely 05920900

Screw, Socket Head .31-18 x .75 Button Head

$3.99

$

In Stock, only 2 left!

0

28

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06800002

Pin, .3125 x 3.88

$9.49

$

Usually ships in 4-12 days

0

30

Gravely 06713500

Pin, Internal Hair .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 51112300

Kit, WAW Deck Input Pulley

$105.99

$

Usually ships in 4-12 days

0

32

Gravely 01246900

Cover, Belt

$203.99

$

Usually ships in 4-12 days

0

33

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head Thread Rolling
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 00548400

Retainer, .38 Push-On

$1.49

$

In Stock, only 2 left!

0

35

Gravely 01286751

Bracket, Idler Brace

$64.99

$

Usually ships in 4-12 days

0

36

Gravely 03779200

Bracket, Baffle, Discharge 34"

$

$

Not available

37

Gravely 06545400

Nut, Locking-Nylon-Flange .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 03839051

Plate, Reinforce, Spindle

$27.99

$

Usually ships in 4-12 days

0
