911411 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 13.5hp Briggs & Stratton (SN: 000101 & Above) Frame and Front Caster Parts Diagram

34" Wide-Area Walk-Behind Mower, 13.5hp Briggs & Stratton

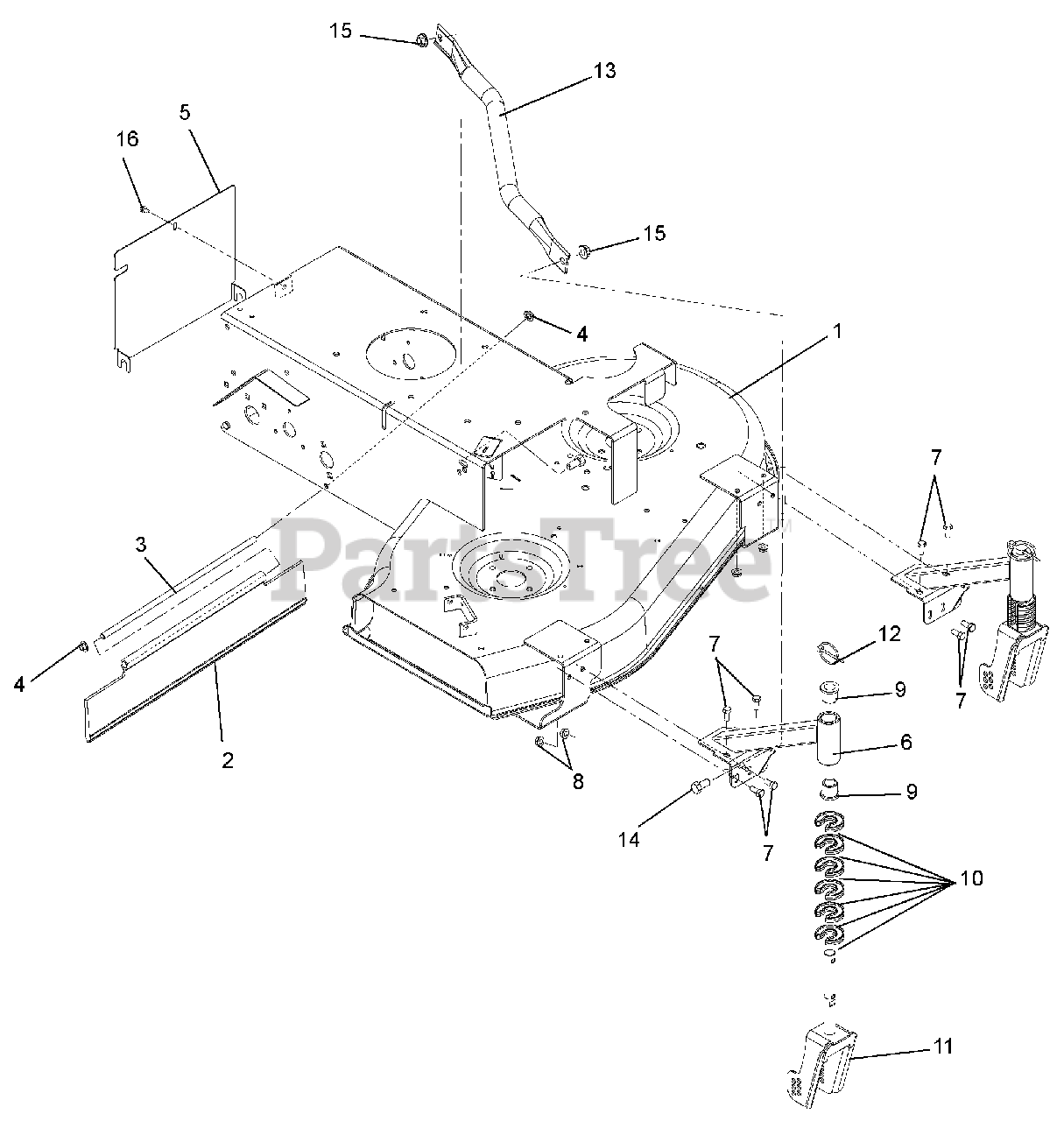

Frame and Front Caster Parts Diagram

  • Title

1

Gravely 01500053

Chassis, Wide Area Walk

$

$

Not available

2

Gravely 07531500

Guard, Rear Swivel

$15.99

$

In Stock, only 1 left!

0

3

Gravely 03263700

Rod, Trailing Shield

$24.99

$

Usually ships in 4-12 days

0

4

Gravely 07008200

Nut, Push .312 Dia. PAL

$2.49

$

In Stock, Qty 20+

0

5

Gravely 03985953

Cover, Rear Chassis

$46.99

$

Usually ships in 4-12 days

0

6

Gravely 03985453

Weldment, Caster Arm

$91.99

$

Usually ships in 4-12 days

0

7

Gravely 05947000

Bolt, Hex .31-18 x .75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 03985500

Bushing, Flange .75 x .75 x 1.0

$5.99

$

In Stock, only 3 left!

0

10

Gravely 03265100

Clip, HOC Fixed

$3.49

$

In Stock, Qty 7

0

11

Gravely 03968053

Fork, WAW Caster
(Superseded to 04059653)

$68.99

$

Usually ships in 4-12 days

0

12

Gravely 06700204

Pin, Lynch .25 x 1.25
(Superseded to 06700226)

$3.99

$

In Stock, Qty 8

0

13

Gravely 01248551

Strap, Frame Reinforcing

$64.99

$

Usually ships in 4-12 days

0

14

Gravely 05959400

Bolt, Hex .38-16 x .75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 07412000

Screw, Tapping .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
