911410 - Ariens 34" Walk-Behind Mower, 13.5hp Briggs & Stratton (SN: 000101 & Above) Electrical Parts Diagram

34" Walk-Behind Mower, 13.5hp Briggs & Stratton

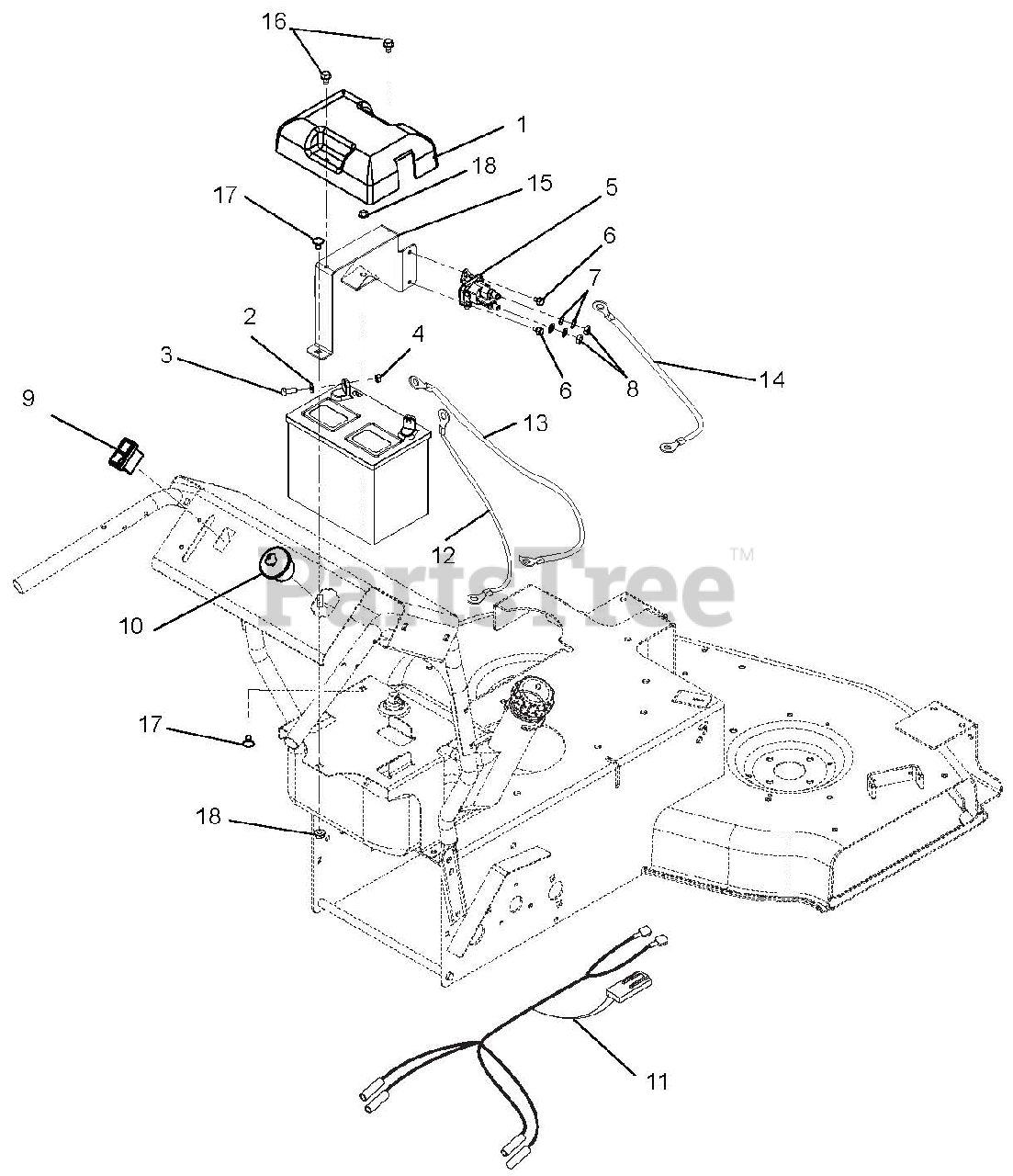

Electrical Parts Diagram

  • Title

1

Ariens 04912900

COVER, BATTERY

$11.99

$

Usually ships in 4-12 days

0

2

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06509200

NUT-KEPS .250-20
(Superseded to 06500921)

$1.49

$

In Stock, only 1 left!

0

5

Ariens 03679000

SOLENOID
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

6

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, only 3 left!

0

8

Ariens 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

9

Ariens 03272600

SWITCH-ROCKER, MOMENTARY
(Superseded to 03374200)

$

$

Not available

10

Ariens 03290500

KEYSWITCH-IGNITION 3 POS

$18.99

$

In Stock, Qty 20+

0

10

Ariens 03292700

BRKT, STRIPER MOUNT-RIGHT

$

$

Not available

11

Ariens 03372600

HARNESS, WAW WIRING

$

$

Not available

12

Ariens 00187500

CABLE, POS. BAT 18.50"

$9.99

$

Usually ships in 4-12 days

0

13

Ariens 00187200

CABLE, GROUND 22.0"

$9.99

$

Usually ships in 4-12 days

0

14

Ariens 00187400

CABLE, POS. BAT 6.75"

$5.99

$

Usually ships in 4-12 days

0

15

Ariens 03986051

BRKT, BATTERY MOUNT
(Superseded to 04270851)

$85.99

$

In Stock, only 1 left!

0

16

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06222000

@BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

$2.99

$

In Stock, Qty 20+

0

18

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0
