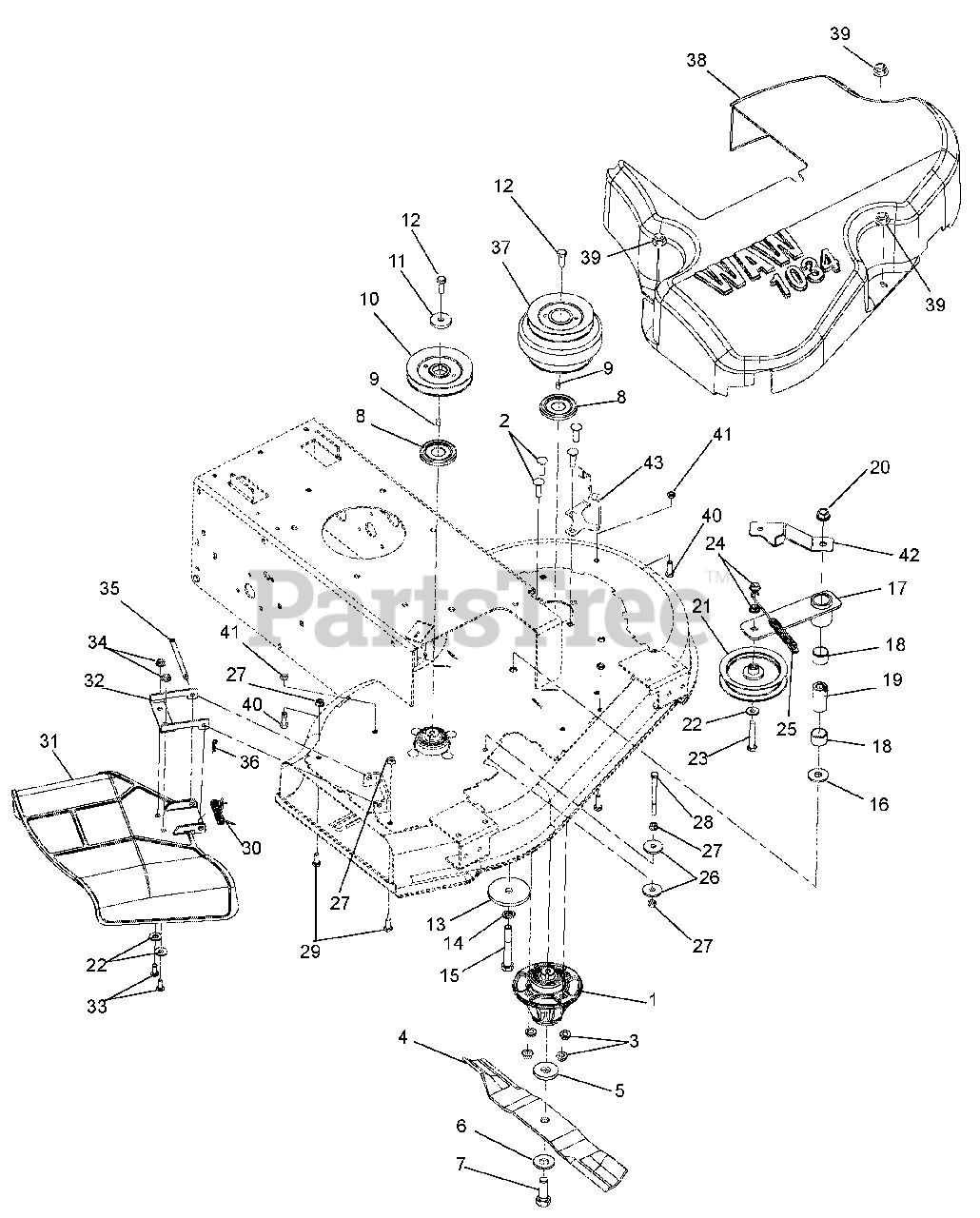

911408 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton, CARB (SN: 002001 & Above) Deck Parts Diagram

34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton, CARB

Deck Parts Diagram

  • Title

1

Gravely 61543800

Spindle Assembly
(Superseded to 51510000)

$216.99

$

In Stock, Qty 12

0

2

Gravely 06224100

Bolt, Round Head, Square Neck .38-16 x 1.25
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

3

Gravely 06545500

Nut .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 00651800

Blade 17.5 x 2.25 x .197

$26.99

$

In Stock, only 2 left!

0

5

Gravely 06435200

Washer, Flat .640 x 1.75 x .250
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

6

Gravely 06445700

Washer, Bellville .63 x 1.62 x .14

$4.99

$

In Stock, only 3 left!

0

7

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

8

Gravely 00587400

Cap, Dust

$7.99

$

In Stock, only 3 left!

0

9

Gravely 06611100

Key, Square .25 x .38 x .25

$1.49

$

In Stock, Qty 20+

0

10

Gravely 01610300

Sheave 4.75 Diameter A-Section
(Superseded to 07330267)

$52.99

$

In Stock, only 1 left!

0

11

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 05900013

Bolt, Hex .38-16 x 1.00
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06400011

Washer, Flat .531 x 3.00 x .25

$17.99

$

Usually ships in 4-12 days

0

14

Gravely 06307300

Washer, Locking .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

15

Gravely 05965800

Bolt, Hex .50-13 x 3.50
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

16

Gravely 06436400

Washer, Flat Steel .511 x 1.44 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 01248251

Arm, WAW Deck Idler

$

$

Not available

18

Gravely 05435800

Bearing 1.00 x 1.12 x .75

$9.49

$

In Stock, Qty 6

0

19

Gravely 01581700

Bushing, Spacer .505/.500 x .999/.996 x 2.05/2.03

$5.99

$

In Stock, Qty 20+

0

20

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 07300039

Idler, Flat .38 x 4.00 x 1.06
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

22

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05962900

Bolt, Hex .38-16 x 2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

24

Gravely 06534800

Nut, Locking Flange .375-16
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 08334900

Spring, Engine-Transmission

$28.99

$

In Stock, Qty 8

0

26

Gravely 06442400

Washer, Flat Steel .406 x 1.375 x .135
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

27

Gravely 06530400

Nut, Spin Lock Flange .312-18 (403)065298001Nut, Locking Center .31-18
(Superseded to 06500815)

Note: (403)065298001Nut, Locking Center .31-18

$1.49

$

In Stock, Qty 20+

0

28

Gravely 05948000

Bolt, Hex .31-18 x 3.50

$

$

Not available

29

Gravely 05947000

Bolt, Hex .31-18 x .75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 01258100

Spring, Torsion

$9.49

$

In Stock, Qty 8

0

31

Gravely 00499900

Chute, Molded
(Superseded to 03994300)

$54.99

$

In Stock, only 1 left!

0

32

Gravely 00662651

Reinforcement, Chute

$22.99

$

Usually ships in 4-12 days

0

33

Gravely 05920900

Screw, Socket Head .31-18 x .75 Button Head

$3.99

$

In Stock, only 2 left!

0

34

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06800002

Pin, .3125 x 3.88

$9.49

$

Usually ships in 4-12 days

0

36

Gravely 06713500

Pin, Internal Hair .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 01248100

Pulley, Deck Input

$

$

Not available

38

Gravely 01246900

Cover, Belt

$203.99

$

Usually ships in 4-12 days

0

39

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 05946900

Bolt, Hex .31-18 x 1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 06500011

Nut, Locking Center .31-18
(Superseded to 06500913)

$0.99

$

In Stock, only 3 left!

0

42

Gravely 01286751

Bracket, Idler Brace

$64.99

$

Usually ships in 4-12 days

0

43

Gravely 01289751

Finger, Jackshaft Belt

$37.99

$

In Stock, only 1 left!

0
