911408 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton, CARB (SN: 000101 - 002000) Transmission Parts Diagram

34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton, CARB

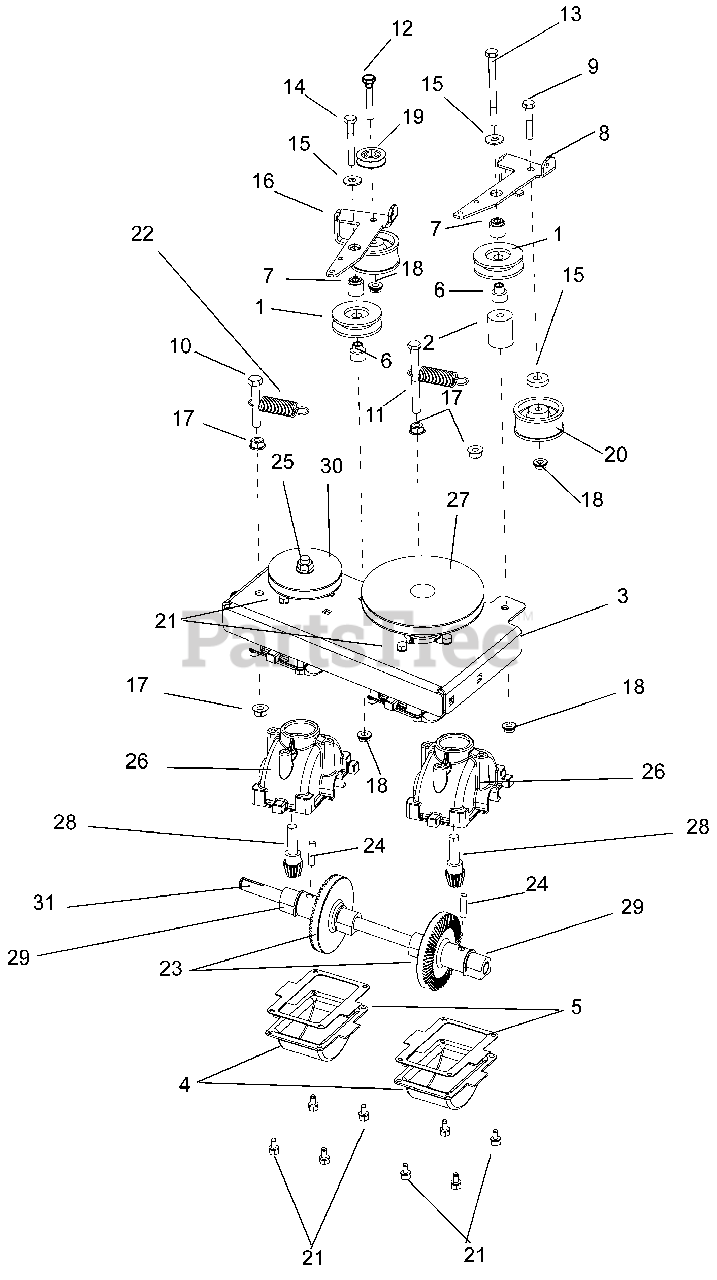

Transmission Parts Diagram

  • Title

1

Gravely 00444400

Idler, 3L Front Side .38 x 1.875

$22.99

$

In Stock, Qty 6

0

2

Gravely 01247300

Spacer, Reverse Idler

$

$

Not available

3

Gravely 03264551

Plate, Transmission Mount

$

$

Not available

4

Gravely 01255251

Sump, Gearbox

$38.99

$

Usually ships in 4-12 days

0

5

Gravely 01256400

Gasket, Transmission

$15.99

$

Usually ships in 4-12 days

0

6

Gravely 01258900

Spacer, Idler Pulley

$3.99

$

In Stock, only 2 left!

0

7

Gravely 01259000

Spacer .390 x .75 x .189

$3.99

$

In Stock, only 1 left!

0

8

Gravely 03279300

Bracket, Transmission Idler Arm

$23.99

$

Usually ships in 4-12 days

0

9

Gravely 05952500

Bolt, Hex .25-20 x 1.50
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05957200

Bolt, Hex .31-18 x 2.00
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05948000

Bolt, Hex .31-18 x 3.50 Grade 5

$

$

Not available

12

Gravely 05964700

Bolt, Hex .25-20 x 1.75
(Superseded to 05901935)

$2.49

$

In Stock, only 1 left!

0

13

Gravely 05965300

Bolt, Hex .25-20 x 3.25

$

$

Not available

14

Gravely 05967100

Bolt, Hex .25-20 x 2.00
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 06435800

Washer, Flat Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06439100

Washer, Flat Steel .38 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

17

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 07300012

Pulley, Cable

$4.99

$

In Stock, Qty 7

0

20

Gravely 07300435

Pulley, Idler .25 x 1.87 x .97

$20.99

$

In Stock, Qty 6

0

21

Gravely 07400033

Screw, Tapping 10-24 x .375 Pre-Coat
(Superseded to 07400137)

$3.49

$

Usually ships in 4-12 days

0

22

Gravely 08300435

Spring, Tension .063 x .625 x 2.50

$

$

Not available

23

Gravely 01259600

Gear, Bevel (CU Infiltrate)

Note: (CU Infiltrate)

$

$

Not available

24

Gravely 05800135

Pin, .250 x 1.0 Spring

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 06542000

Nut, Top-Locking Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 01255000

Housing, WAW Gearbox

$67.99

$

Usually ships in 4-12 days

0

27

Gravely 01247500

Pulley, Reverse Input

$68.99

$

Usually ships in 4-12 days

0

28

Gravely 01255500

Pinion, Gearbox Input

$64.99

$

In Stock, only 1 left!

0

29

Gravely 01255300

Bushing, Transmission Output Shaft

$5.99

$

Usually ships in 4-12 days

0

30

Gravely 01285900

Pulley, Transmission Input

$51.99

$

Usually ships in 4-12 days

0

31

Gravely 51113300

Kit, Shaft Service (Contains a new transmission shaft and two item 24 and eight item 21.)
(Superseded to 51113500)

Note: (Contains a new transmission shaft and two item 24 and eight item 21.)

$209.99

$

Usually ships in 4-12 days

0

32

Gravely 51113000

Kit, WAW Transmission (Includes transmission shaft and items 3, 4, 5, 21, 23, 24, 25, 26, 27, 28, 29, 30)
(Superseded to 51113900)

Note: (Includes transmission shaft and items 3, 4, 5, 21, 23, 24, 25, 26, 27, 28, 29, 30)

$522.99

$

Usually ships in 4-12 days

0
