911407 - Ariens 34" Walk-Behind Mower, 10.5hp Briggs & Stratton, Gear, CARB (SN: 000101 & Above) Deck Parts Diagram

34" Walk-Behind Mower, 10.5hp Briggs & Stratton, Gear, CARB

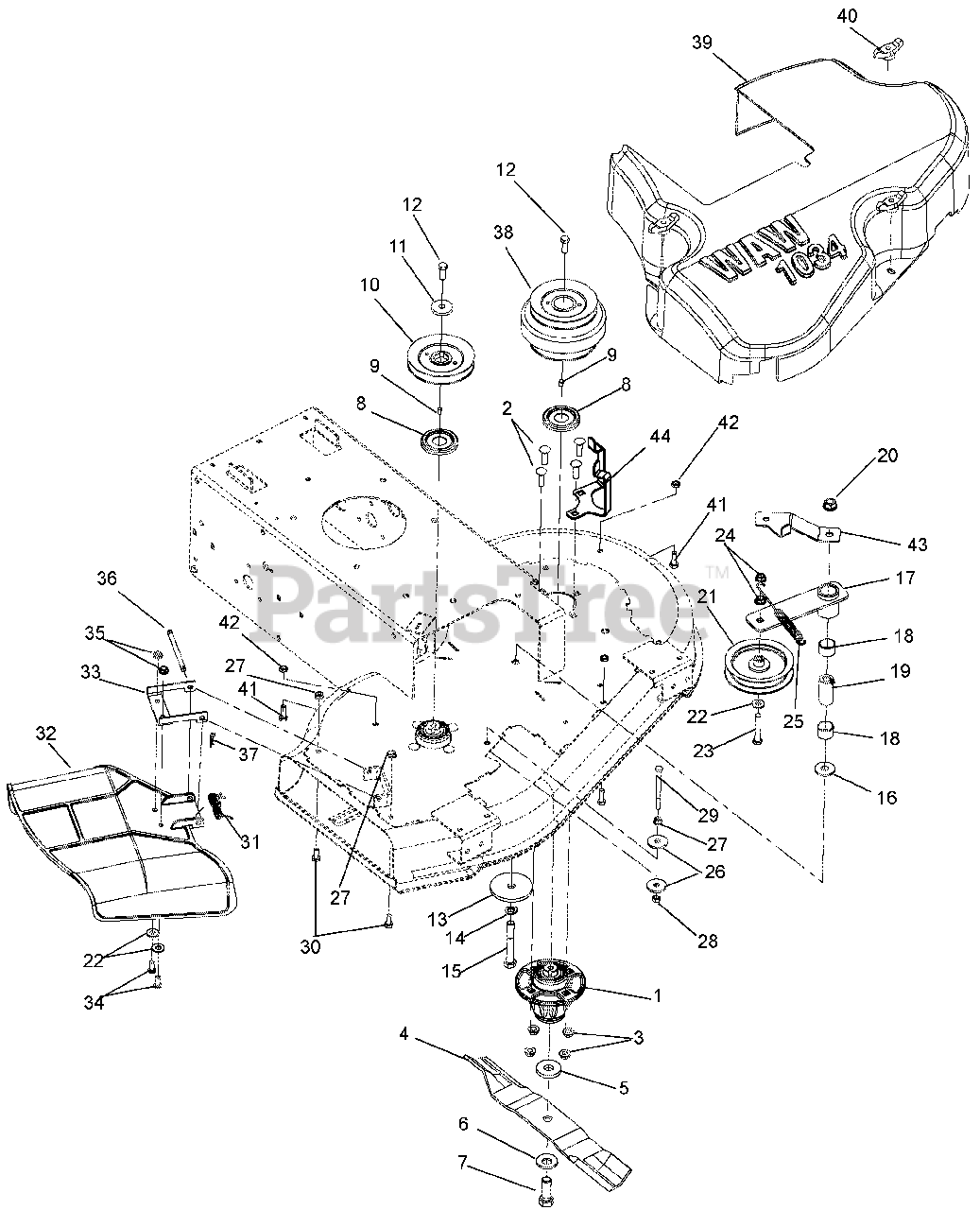

Deck Parts Diagram

  • Title

1

Ariens 61543800

SPINDLE ASSEMBLY
(Superseded to 51510000)

$216.99

$

In Stock, Qty 14

0

2

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 4 left!

0

3

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 00651800

BLADE, 17.38X2.5X.204

$26.99

$

In Stock, only 2 left!

0

5

Ariens 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$3.99

$

In Stock, only 4 left!

0

6

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 20+

0

7

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

8

Ariens 00587400

DUST CAP

$7.99

$

In Stock, only 3 left!

0

9

Ariens 06611100

KEY, SQ .25 X .38 X .25

$1.49

$

In Stock, Qty 20+

0

10

Ariens 01610300

SHEAVE, 4.75 DIA A-SECTION
(Superseded to 07330267)

$52.99

$

In Stock, only 1 left!

0

11

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

12

Ariens 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

13

Ariens 06400011

WASHER, FLAT .531X3.000X.25

$17.99

$

Usually ships in 4-12 days

0

14

Ariens 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

15

Ariens 05965800

@BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

16

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

17

Ariens 01248251

ARM, WAW DECK IDLER (WLDMNT)

$

$

Not available

18

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, only 4 left!

0

19

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

In Stock, Qty 20+

0

20

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

22

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

24

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 08334900

SPRING - ENGINE - TRANS.

$28.99

$

In Stock, Qty 8

0

26

Ariens 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

27

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 05948000

@BLT-HEX .31-18X3.50 GR5 YWZC

$

$

Not available

30

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 01258100

SPRING, TORSION

$9.49

$

In Stock, Qty 8

0

32

Ariens 00499900

MOLDED CHUTE, ZOOM
(Superseded to 03994300)

$54.99

$

In Stock, only 1 left!

0

33

Ariens 00662651

CHUTE REINFORCEMENT

$22.99

$

Usually ships in 4-12 days

0

34

Ariens 05920900

SCR-SKH .31-18X.75 BTNHD YWZC

$3.99

$

In Stock, only 2 left!

0

35

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 06800002

PIN, 5/16 X 3.88"

$9.49

$

Usually ships in 4-12 days

0

37

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

38

Ariens 01248100

PULLEY, WAW DECK INPUT

$

$

Not available

39

Ariens 01246900

COVER, WAW BELT

$203.99

$

Usually ships in 4-12 days

0

40

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

41

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$0.99

$

In Stock, Qty 9

0

43

Ariens 01286751

BRKT-IDLER BRACE

$64.99

$

Usually ships in 4-12 days

0

44

Ariens 01289751

FINGER, JACKSHAFT BELT

$37.99

$

In Stock, only 1 left!

0
