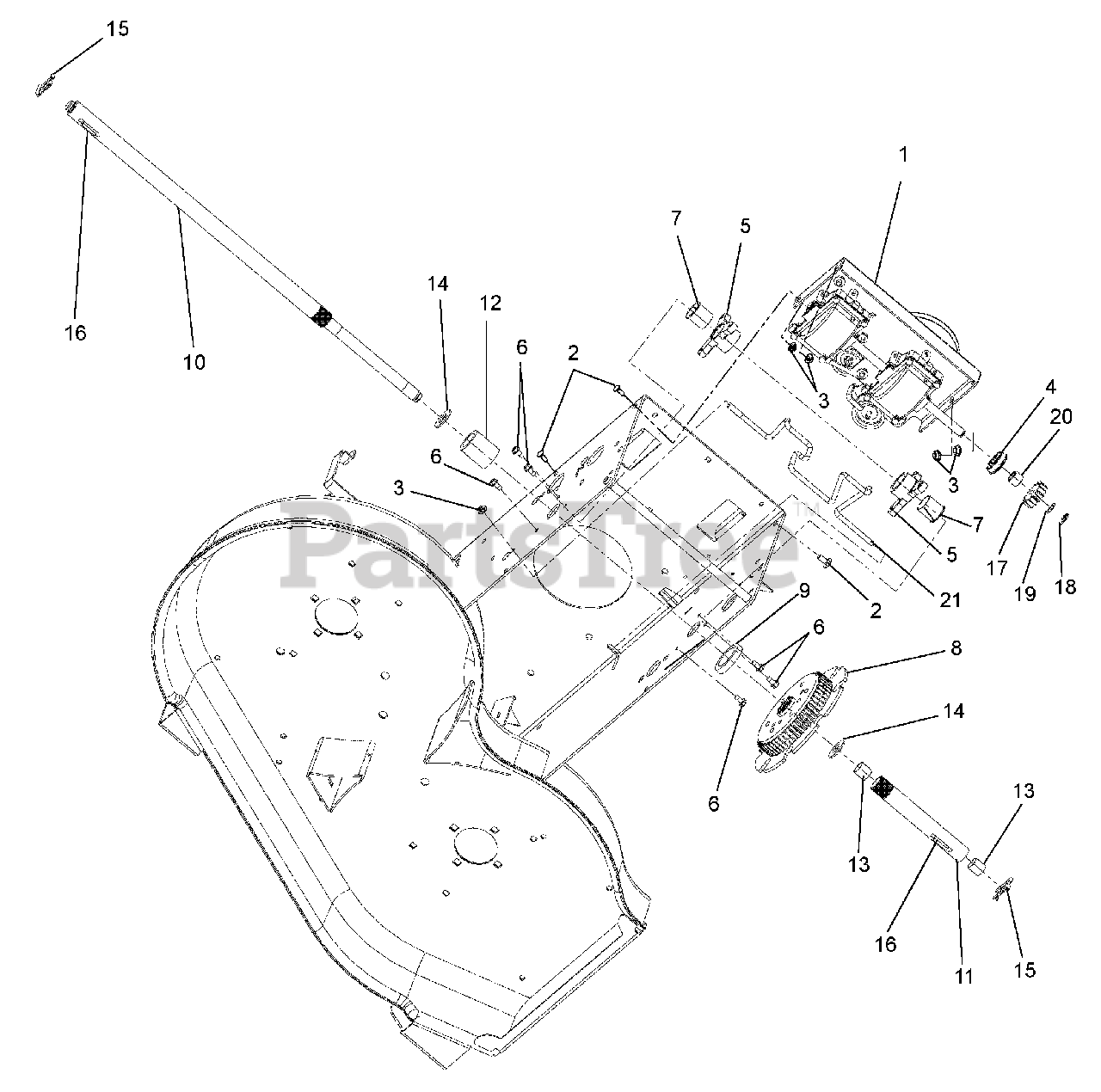

911404 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton (SN: 002001 & Above) Transmission and Drive Parts Diagram

34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton

Transmission and Drive Parts Diagram

  • Title
1

Gravely 51113000

Kit, WAW Transmission
(Superseded to 51113900)

$522.99

$

Usually ships in 4-12 days

0

2

Gravely 06215700

Bolt, Round Head, Square Neck .31-18 x .75
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 05480000

Bearing, Sealed Ball .50 1.38 x .438

$13.99

$

In Stock, Qty 20+

0

5

Gravely 00275100

Bushing, Rake Shaft 1"

$11.99

$

In Stock, Qty 20+

0

6

Gravely 07412000

Screw, Tapping Hex Washer Head .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 05500030

Bushing, Flange Split 1.0"

$6.99

$

In Stock, Qty 20+

0

8

Gravely 51113100

Kit, Differential

$271.99

$

Usually ships in 4-12 days

0

9

Gravely 06400827

Washer, Flat Nylon 1.42 x 2.03 x .35

$5.99

$

In Stock, only 4 left!

0

10

Gravely 03264700

Shaft, Axle Long

$168.99

$

In Stock, only 1 left!

0

11

Gravely 03264800

Shaft, Axle Short

$50.99

$

Usually ships in 4-12 days

0

12

Gravely 05500827

Spacer 1.0 x 1.5 x 1.57

$15.99

$

In Stock, only 2 left!

0

13

Gravely 05500023

Bushing, Sleeve .706 x .764 x .75

$3.99

$

In Stock, Qty 20+

0

14

Gravely 06436300

Washer, Flat Steel 1.0 x 1.50 x .062
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05700001

Clip, Snap .625 Diameter

$2.49

$

In Stock, Qty 20+

0

16

Gravely 06600002

Key, Rectifier .25 x .188 x 1.00

$2.49

$

In Stock, Qty 20+

0

17

Gravely 01247400

Pinion, Transmission Drive

$38.99

$

In Stock, only 1 left!

0

18

Gravely 05710200

Ring, External Retaining .500 x .042

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06400015

Washer, Thrust .500 x .020

$1.49

$

In Stock, Qty 20+

0

20

Gravely 01254800

Retainer, Bearing

$10.99

$

In Stock, only 2 left!

0

21

Gravely 01288000

Belt Finger

$36.99

$

In Stock, only 1 left!
