911404 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton (SN: 002001 & Above) Handlebars Parts Diagram

34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton

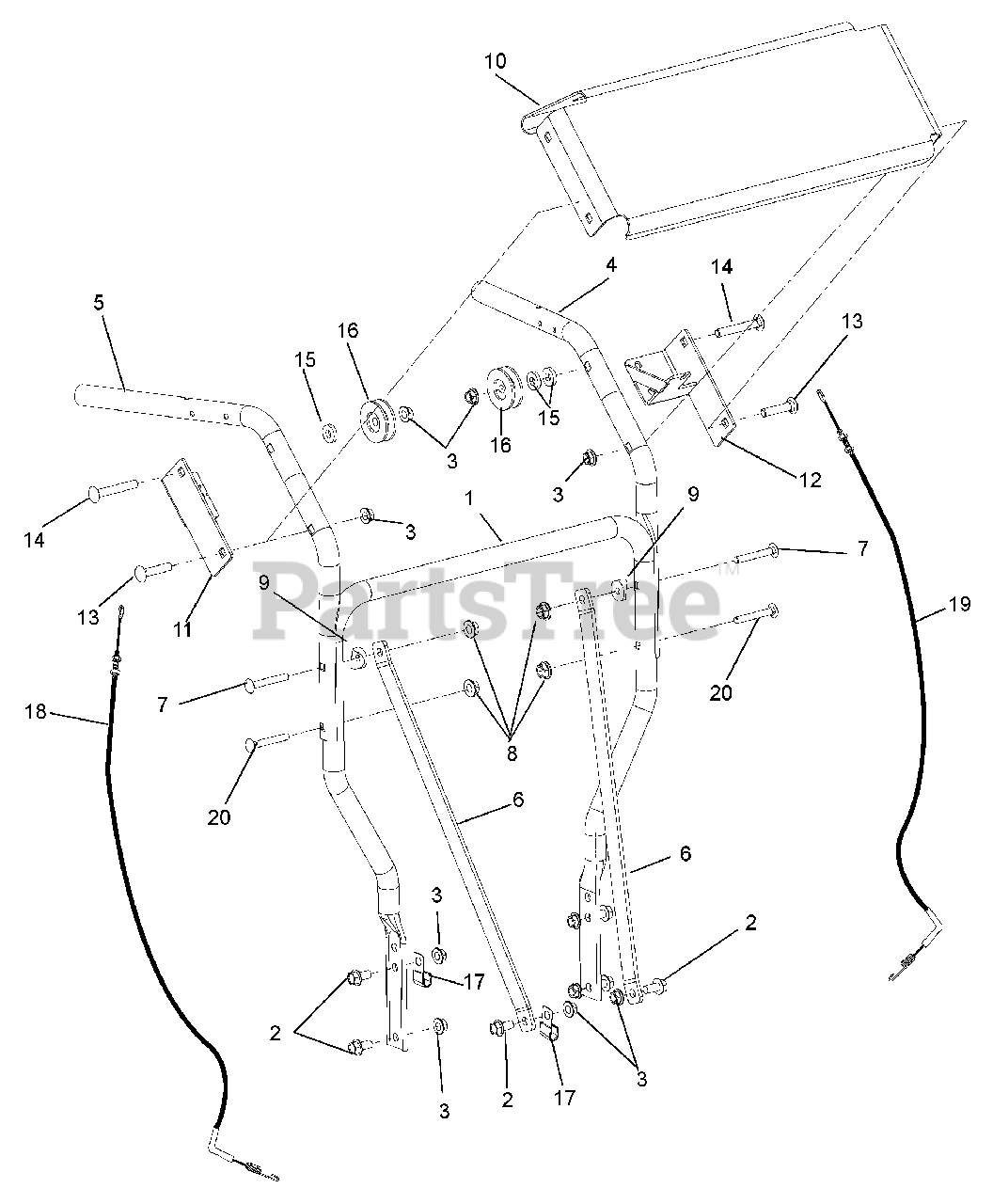

Handlebars Parts Diagram

  • Title

1

Gravely 00373251

Handlebar, Lower

$100.99

$

Usually ships in 4-12 days

0

2

Gravely 07028500

Bolt, Screw Hex Flanged Whiz Lock Head .38-16 x .75
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 01252851

Handlebar, Upper Left Hand

$180.99

$

Usually ships in 4-12 days

0

5

Gravely 01246451

Handlebar, Upper Right Hand

$142.99

$

Usually ships in 4-12 days

0

6

Gravely 03264351

Bracket, Handlebar Brace

$64.99

$

Usually ships in 4-12 days

0

7

Gravely 06221600

Bolt, Round Head Square Neck .31-18 x 2.25
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 06545400

Nut, Nyloc Flange .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07500005

Spacer, Handlebar

$1.49

$

In Stock, Qty 20+

0

10

Gravely 01247851

Console

$

$

Not available

11

Gravely 01249451

Mount, Brake Cable Pillow

$

$

Not available

12

Gravely 01249351

Mount, PTO Cable

$30.99

$

Usually ships in 4-12 days

0

13

Gravely 06223800

Bolt, Round Head Square Neck .38-16 x 1.75
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

14

Gravely 06224400

Bolt, Round Head Square Neck .38-16 x 2.50
(Superseded to 06200234)

$3.99

$

In Stock, Qty 18

0

15

Gravely 06436800

Washer, Flat Steel .390 x .88 x .18

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 00444400

Idle, 3L Front Side .38 x 1.875

$22.99

$

In Stock, Qty 6

0

17

Gravely 06909400

J-Clamp

$3.49

$

In Stock, Qty 5

0

18

Gravely 06900340

Cable, Brake Control

$34.99

$

Usually ships in 4-12 days

0

19

Gravely 06900326

Cable, PTO Control

$64.99

$

Usually ships in 4-12 days

0

20

Gravely 06220200

Bolt, Round Head Square Neck .312-18 x 1.75
(Superseded to 06200324)

$2.99

$

In Stock, only 4 left!

0
