911404 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton (SN: 000101 - 002000) Transmission And Drive Parts Diagram

34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton

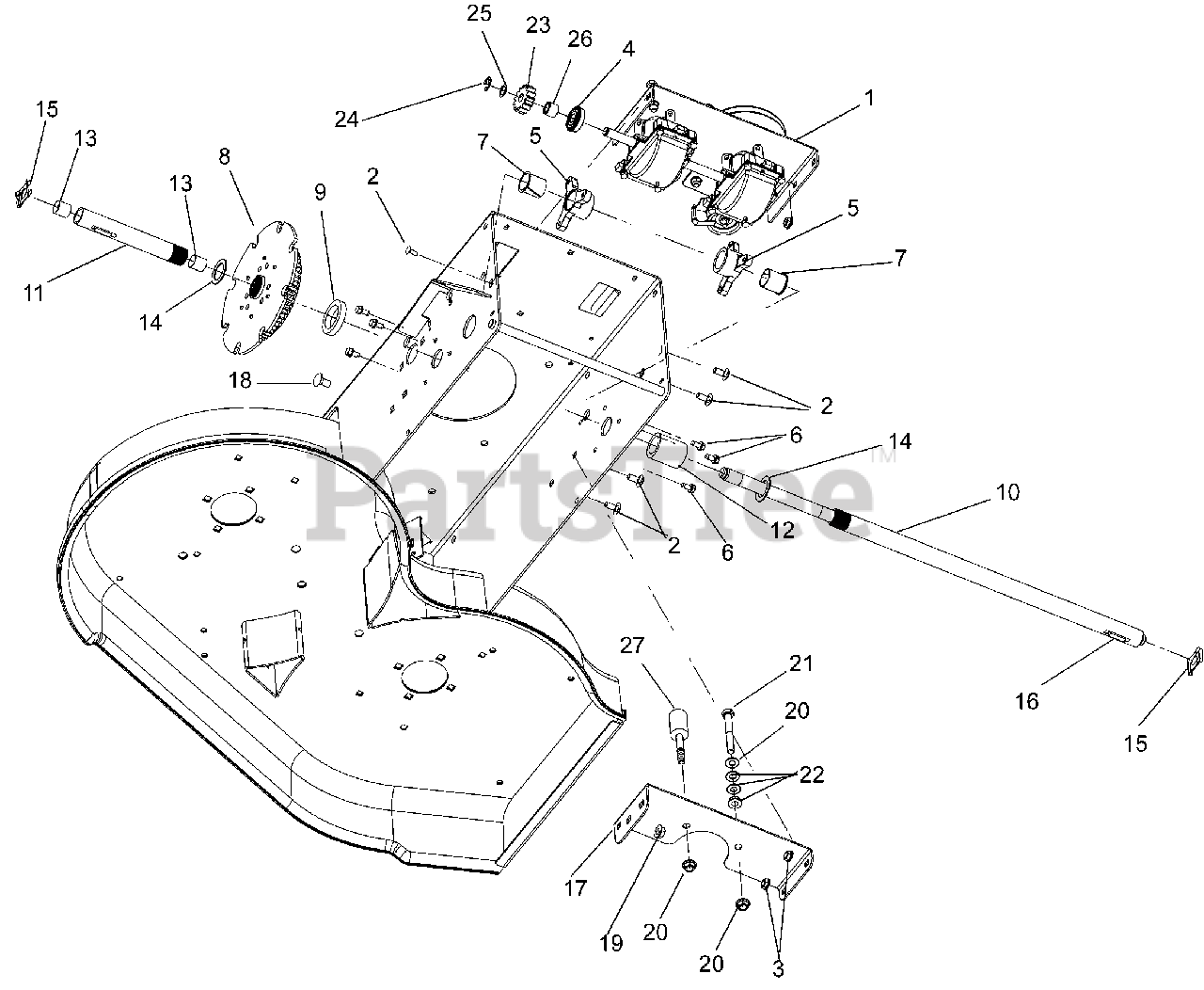

Transmission And Drive Parts Diagram

  • Title

1

Gravely 51113900

Kit, WAW Transmission

$522.99

$

Usually ships in 4-12 days

0

2

Gravely 06215700

Bolt, Round Head, Square Neck .31-18 x .75
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 05480000

Bearing, Sealed Ball .50 1.38 x .438

$13.99

$

In Stock, Qty 20+

0

5

Gravely 00275100

Bushing, Rake Shaft 1"

$11.99

$

In Stock, Qty 20+

0

6

Gravely 07412000

Screw, Tapping Hex Washer Head .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 05500030

Bushing, Flange Split 1.0"

$6.99

$

In Stock, Qty 20+

0

8

Gravely 51113100

Kit, Differential

$271.99

$

Usually ships in 4-12 days

0

9

Gravely 06400827

Washer, Flat Nylon 1.42 x 2.03 x .35

$5.99

$

In Stock, only 4 left!

0

10

Gravely 03264700

Shaft, Axle Long

$168.99

$

In Stock, only 1 left!

0

11

Gravely 03264800

Shaft, Axle Short

$50.99

$

Usually ships in 4-12 days

0

12

Gravely 05500827

Spacer 1.0 x 1.5 x 1.57

$15.99

$

In Stock, only 2 left!

0

13

Gravely 05500023

Bushing, Sleeve .706 x .764 x .75

$3.99

$

In Stock, Qty 20+

0

14

Gravely 06436300

Washer, Flat Steel 1.0 x 1.50 x .062
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05700001

Clip, Snap .625 Diameter

$2.49

$

In Stock, Qty 20+

0

16

Gravely 06600002

Key, Rectifier .25 x .188 x 1.00

$2.49

$

In Stock, Qty 20+

0

17

Gravely 01251251

Bracket, Belt Finger Mounting

$

$

Not available

18

Gravely 06223900

Bolt, Round Head Square Neck .38-16 x .75 (SN 000101 – 000609)
(Superseded to 06200312)

Note: (SN 000101 – 000609)

$1.49

$

In Stock, only 4 left!

0

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5 (SN 000610 and up)
(Superseded to 06200232)

Note: (SN 000610 and up)

$2.49

$

In Stock, Qty 20+

0

19

Gravely 06542000

Nut, Locking Top Flange .38-16 (SN 000101 – 000609)
(Superseded to 06500822)

Note: (SN 000101 – 000609)

$1.49

$

In Stock, Qty 20+

0

Gravely 06543100

Nut, Locking Top Flange .31-18 (SN 000610 and up)
(Superseded to 06500904)

Note: (SN 000610 and up)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05958300

Bolt, Hex .38-16 x 3.00
(Superseded to 05901815)

$3.49

$

In Stock, only 1 left!

0

22

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

23

Gravely 01247400

Pinion, Transmission Drive

$38.99

$

In Stock, only 1 left!

0

24

Gravely 05710200

Ring, External Retaining .500 x .042

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06400015

Washer, Thrust .500 x .020

$1.49

$

In Stock, Qty 20+

0

26

Gravely 01254800

Retainer, Bearing

$10.99

$

In Stock, only 2 left!

0

27

Gravely 01288500

Belt Finger

$

$

Not available
