911403 - Ariens 34" Walk-Behind Mower, 10.5hp Briggs & Stratton, Gear (SN: 000101 - 001999) Handlebars Parts Diagram

34" Walk-Behind Mower, 10.5hp Briggs & Stratton, Gear

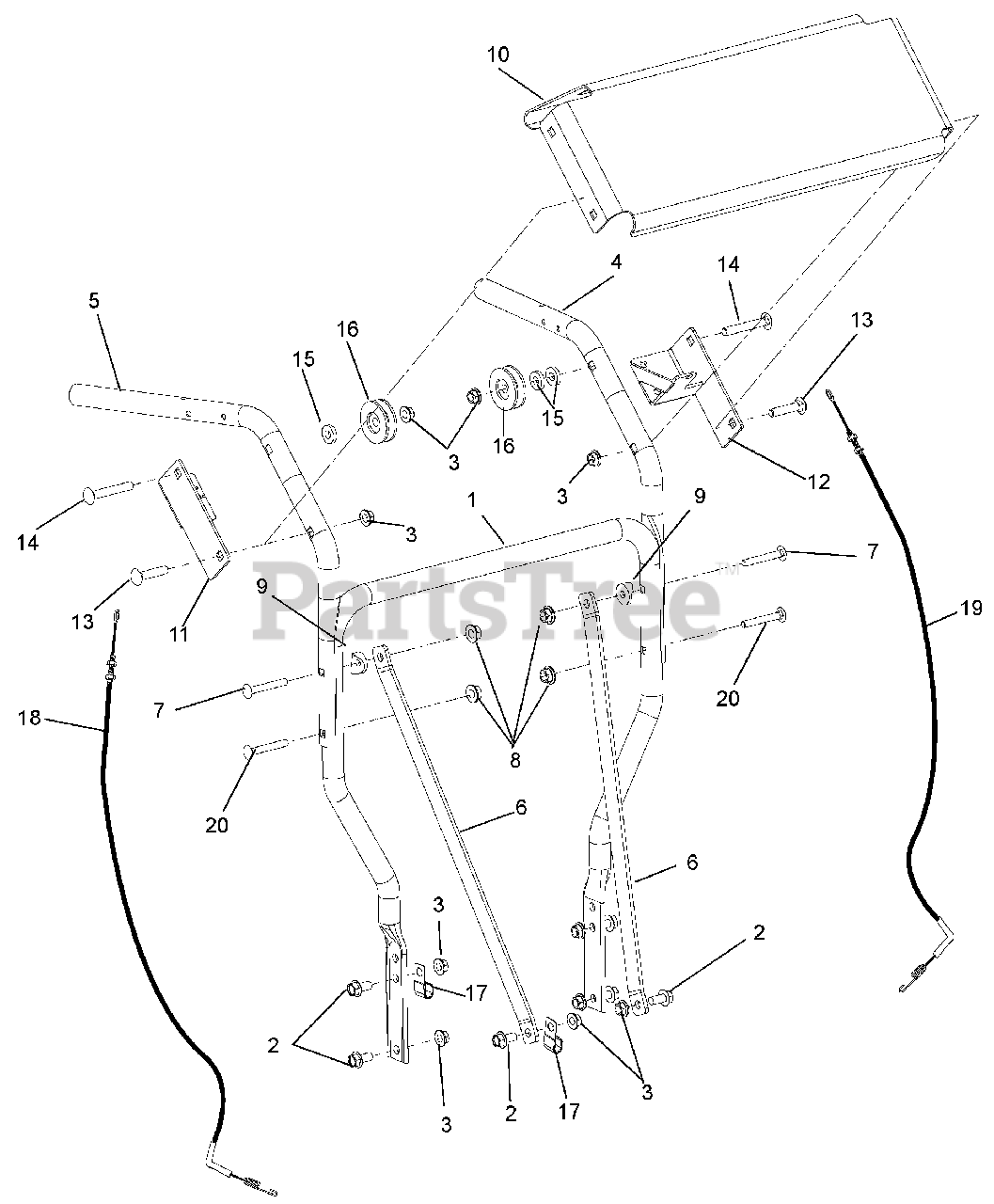

Handlebars Parts Diagram

  • Title

1

Ariens 00373251

HANDLEBAR, LOWER

$100.99

$

Usually ships in 4-12 days

0

2

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 01252851

WMT-HANDLEBAR, UPPER LH

$180.99

$

Usually ships in 4-12 days

0

5

Ariens 01246451

HANDLEBAR, UPPER RH

$142.99

$

Usually ships in 4-12 days

0

6

Ariens 03264351

BRKT-BRACE, HANDLEBARS

$64.99

$

Usually ships in 4-12 days

0

7

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

8

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 20+

0

10

Ariens 01247851

CONSOLE, WAW

$

$

Not available

11

Ariens 01249451

MOUNT, P-BRAKE CABLE (WLDMNT)

$

$

Not available

12

Ariens 01249351

MOUNT, WAW PTO CABLE (WLDMNT)

$30.99

$

Usually ships in 4-12 days

0

13

Ariens 06223800

@BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

14

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.99

$

In Stock, Qty 18

0

15

Ariens 06436800

WSHR-FL-STL .390X.88X.18 YWZC

$3.99

$

Usually ships in 4-12 days

0

16

Ariens 00444400

IDLER, 3L FRONT SIDE .38X1.875

$22.99

$

In Stock, Qty 6

0

17

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 5

0

18

Ariens 06900327

CABLE-BRAKE CONTROL

$39.99

$

In Stock, only 2 left!

0

19

Ariens 06900326

CABLE-PTO CONTROL

$64.99

$

Usually ships in 4-12 days

0

20

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$2.99

$

In Stock, only 4 left!

0
