911403 - Ariens 34" Walk-Behind Mower, 10.5hp Briggs & Stratton, Gear (SN: 000101 - 001999) Frame And Front Caster Parts Diagram

34" Walk-Behind Mower, 10.5hp Briggs & Stratton, Gear

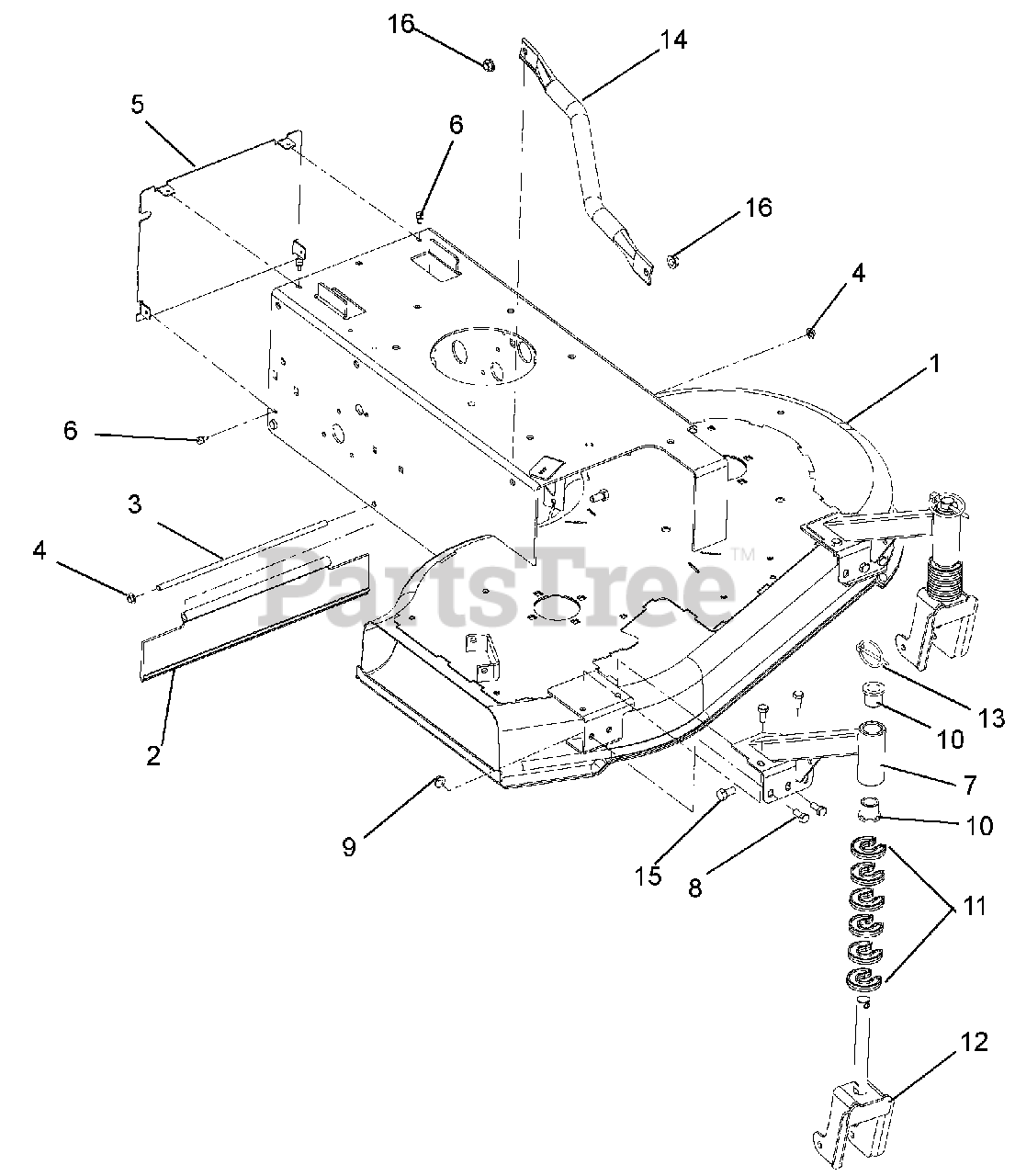

Frame And Front Caster Parts Diagram

  • Title

1

Ariens 01246659

CHASSIS, WAW ARIENS

$

$

Not available

2

Ariens 07531500

GUARD - REAR - SWIVEL

$15.99

$

In Stock, only 1 left!

0

3

Ariens 03263700

ROD, TRAILING SHIELD

$24.99

$

Usually ships in 4-12 days

0

4

Ariens 07008200

NUT-PUSH .312 DIA. PAL

$2.49

$

In Stock, Qty 20+

0

5

Ariens 03263859

COVER-REAR, CHASSIS

$

$

Not available

6

Ariens 07400033

SCR-TAP 10-24X.375 PRE-COAT 80
(Superseded to 07400137)

$3.49

$

In Stock, only 2 left!

0

7

Ariens 01246759

WMT-ARM, CASTER

$284.99

$

Usually ships in 4-12 days

0

8

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 01591100

BUSHING-1"X.75"X1"

$9.99

$

Usually ships in 4-12 days

0

11

Ariens 03265100

CLIP-HOC FIXED

$3.49

$

In Stock, only 4 left!

0

12

Ariens 01248059

FORK, WAW CASTER (WLDMNT)
(Superseded to 04059659)

$68.99

$

In Stock, only 3 left!

0

13

Ariens 06700204

PIN, LYNCH - .25 X 1.25
(Superseded to 06700226)

$3.99

$

In Stock, only 2 left!

0

14

Ariens 01248551

TUBE-BRACE, DECK

$64.99

$

Usually ships in 4-12 days

0

15

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 17

0

16

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0
