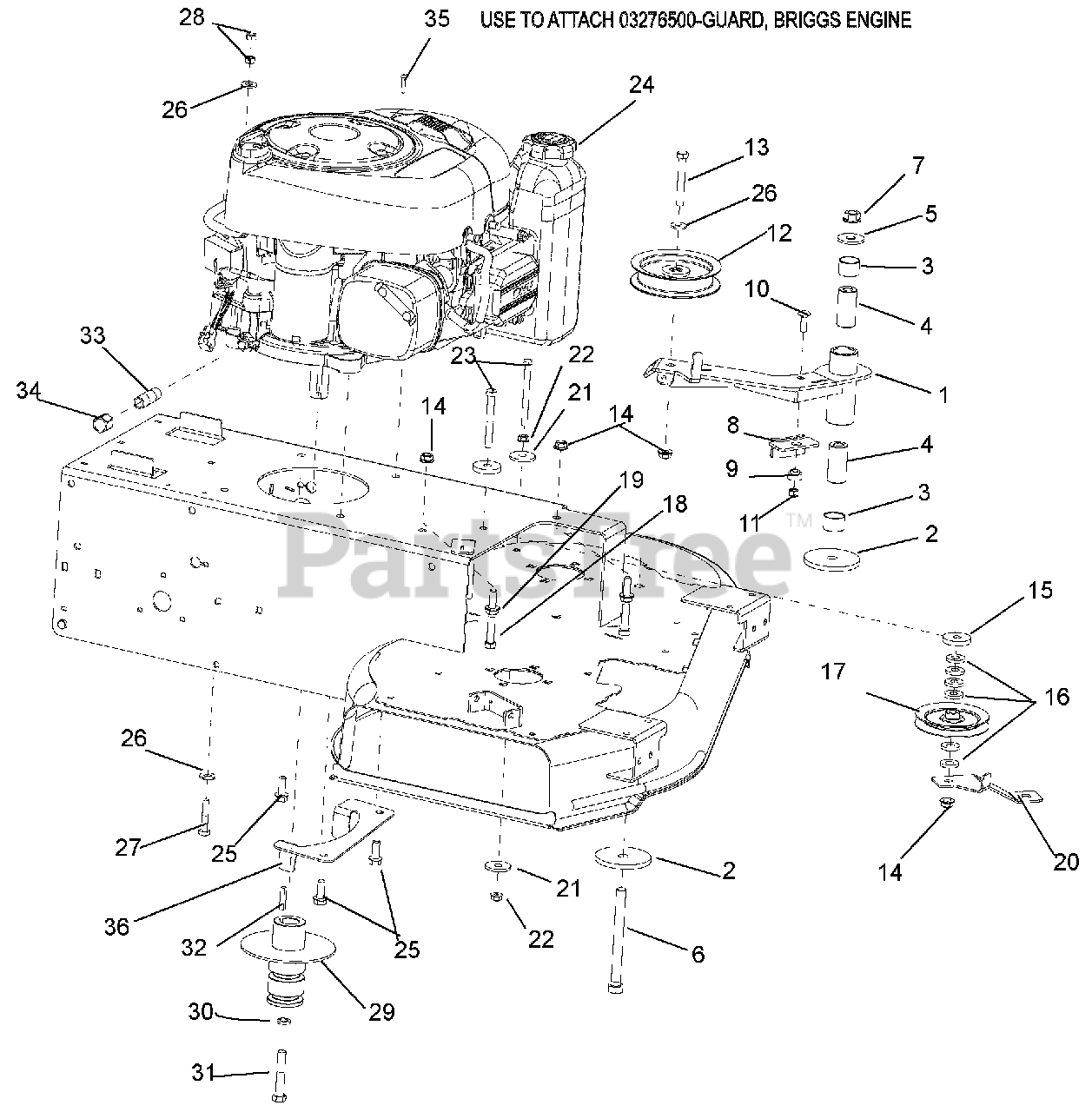

911403 - Ariens 34" Walk-Behind Mower, 10.5hp Briggs & Stratton, Gear (SN: 000101 - 001999) Engine, Clutch And Idler Parts Diagram

34" Walk-Behind Mower, 10.5hp Briggs & Stratton, Gear

Engine, Clutch And Idler Parts Diagram

  • Title

1

Ariens 01286551

WMT-ARM, PTO IDLER

$

$

Not available

2

Ariens 06400011

WASHER, FLAT .531X3.000X.25

$17.99

$

Usually ships in 4-12 days

0

3

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, Qty 10

0

4

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

In Stock, Qty 20+

0

5

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

6

Ariens 05964100

@BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

7

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 01248800

ASSEMBLY-BRAKE PAD
(Superseded to 01291250)

$86.99

$

Usually ships in 4-12 days

0

9

Ariens 05500833

BUSHING-FLANGE

$

$

Not available

10

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

13

Ariens 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

14

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

16

Ariens 06443800

WSHR,FLT .438X1.00X.160 ZCC

$

$

Not available

17

Ariens 07311400

IDLER-V 4.00 X .38 NWHAMSHR
(Superseded to 07300528)

$39.99

$

In Stock, only 2 left!

0

18

Ariens 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

19

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 01286751

BRKT-IDLER BRACE

$64.99

$

Usually ships in 4-12 days

0

21

Ariens 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

22

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 05948000

@BLT-HEX .31-18X3.50 GR5 YWZC

$

$

Not available

24

Ariens 08200337

ENGINE, WAW 10.5 HP 49 STATE

Note: (403)

$

$

Not available

24

Ariens 08200336

ENGINE,WAW(07 BUILD-AHEAD CARB

Note: (407)

$

$

Not available

25

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

26

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

28

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 01247600

PULLEY, WAW DECK/GROUND DRIVE
(Superseded to 07332500)

$193.99

$

Usually ships in 4-12 days

0

30

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

31

Ariens 05900036

BLT-HEX .44-20X2.50 G5 YZ EP80

$13.99

$

In Stock, only 1 left!

0

32

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

33

Ariens 07001436

3/8X2 SCH40 BLK PIPE NIPPLE

Note: (SN 000101 - 000470)

$

$

Not available

34

Ariens 07001437

3/8 BLK PIPE CAP CZ

Note: (SN 000101 - 000470)

$

$

Not available

35

Ariens 06100206

SCREW, 8-16X.87 PHPAN 3 LOBE

$3.99

$

Usually ships in 4-12 days

0

36

Ariens 01286651

BRKT-BELT FINGER

$

$

Not available
