9114-1 - Craftsman 1,400 Watt Portable Generator Briggs And Stratton 4-Cycle Engine III (10/95) Parts Diagram

1,400 Watt Portable Generator

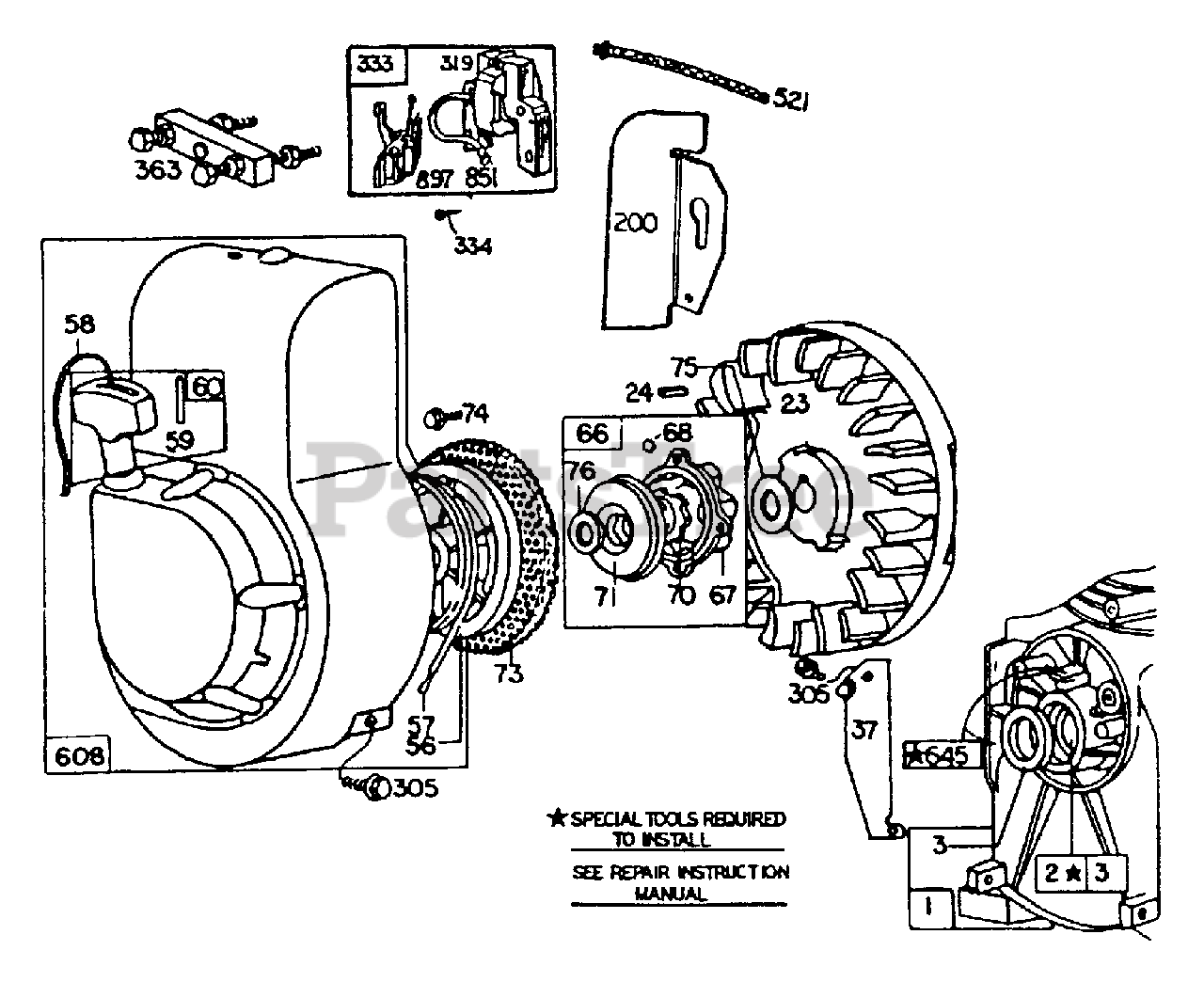

Briggs And Stratton 4-Cycle Engine III (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 395879

Cylinder Assembly

$199.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 293708

Bushing, Cylinder
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal, Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 13

0

23

Briggs & Stratton 296884

Flywheel, Magneto

$

$

Not available

24

Briggs & Stratton 222698

Key, Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 220971

Guard, Flywheel

$11.99

$

In Stock, only 1 left!

0

56

Briggs & Stratton 280117

Pulley, Rewind Starter
(Superseded to 280439S)

$12.99

$

In Stock, Qty 10

0

57

Briggs & Stratton 294303

Spring, Rewind Starter
(Superseded to 490179)

$

$

Not available

58

Briggs & Stratton 66734

Rope, Starter (48-5/8" long)

$6.49

$

In Stock, Qty 11

0

59

Briggs & Stratton 230228

Pin, Starter Grip
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 393152

Grip, Starter Rope

$4.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 394558

Clutch Assembly, Rewind Starter
(Superseded to 399671)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Housing, Starter Clutch

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball, Clutch
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298436

Ratchet, Rewind Starter
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer, Clutch Retainer
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221661

Screen, Rotating
(Superseded to 691725)

$

$

Not available

74

Briggs & Stratton 93490

Screw, Rotating Screen Mounting
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

75

Briggs & Stratton 220865

Washer, Spring
(Superseded to 690582)

$4.49

$

In Stock, only 3 left!

0

76

Briggs & Stratton 68238

Washer, Ratchet Sealing
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

200

Briggs & Stratton 221456

Guide, Air

$

$

Not available

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

319

Briggs & Stratton 395488

Armature Assembly (less Trigger Coil)
(Superseded to 591420)

$53.99

$

In Stock, only 2 left!

0

333

Briggs & Stratton 395489

Armature, Group
(Superseded to 591420)

$53.99

$

In Stock, only 2 left!

0

334

UNKNOWN

$

$

Not available

363

Briggs & Stratton 19069

Puller, Flywheel

Note: (Optional Accessory)

$23.99

$

In Stock, only 1 left!

0

521

Briggs & Stratton 297973

Shielding, Ignition Cable

$17.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 294259

Starter Assembly, Rewind

$

$

Not available

645

UNKNOWN

$

$

Not available

851

Briggs & Stratton 221798

Terminal, Ignition Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

897

Briggs & Stratton 394970

Trigger Coil

$

$

Not available
