9114-0 - Craftsman 1,400 Watt Portable Generator Engine Assembly & Enclosure Repair Parts No. 75481-A Parts Diagram

1,400 Watt Portable Generator

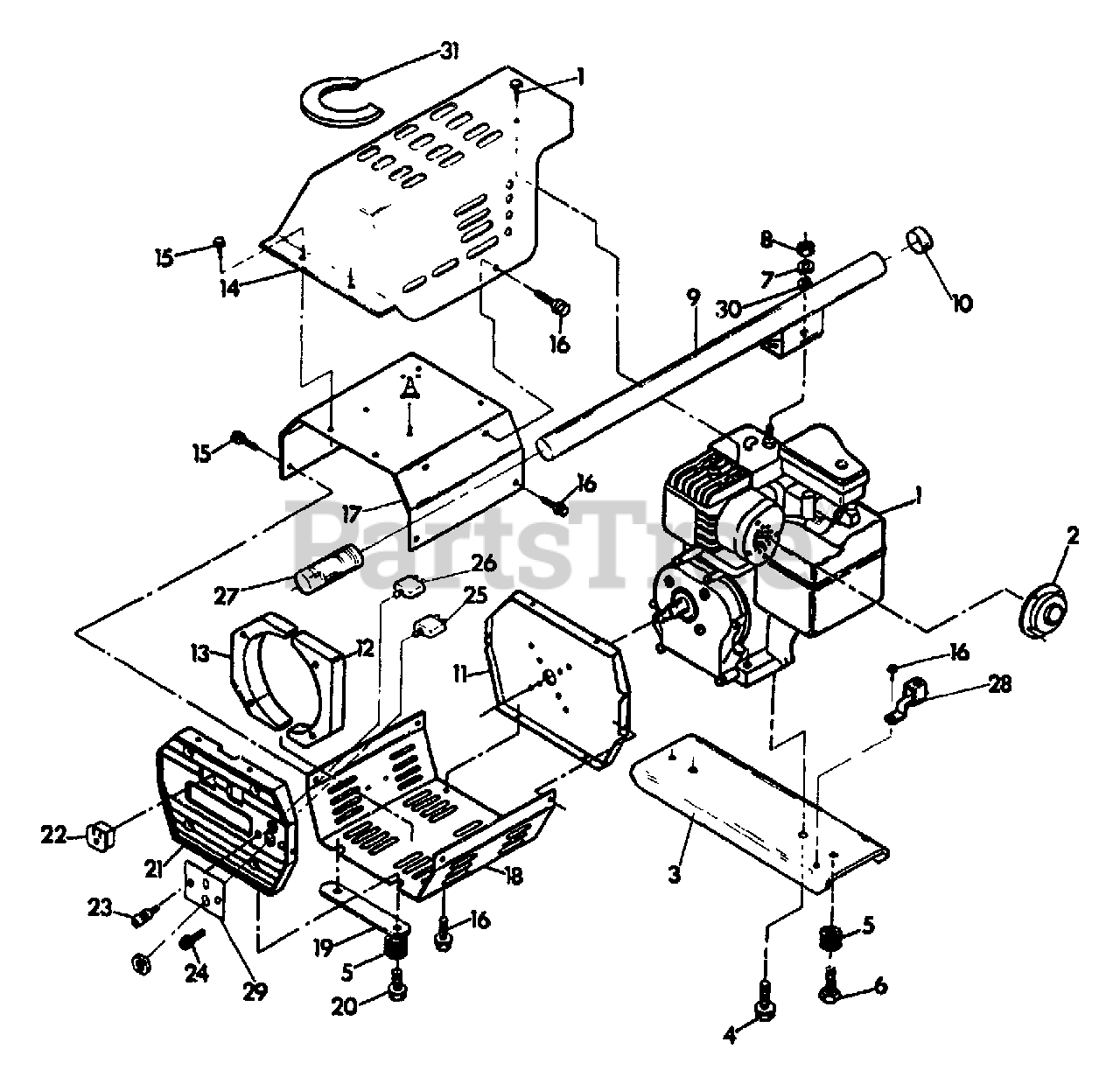

Engine Assembly & Enclosure Repair Parts No. 75481-A Parts Diagram

  • Title
1

Briggs & Stratton 63190

ENGINE ASSEMBLY-BRIGGS & STRATTON MODEL 80212-8702-01

Note: Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 61491

KIT, SPARK ARRESTER SCREEN

Note: Contact Generac for quantity required

$

$

Currently unavailable

3

Briggs & Stratton 75926

SUPPORT, ENGINE

Note: Contact Generac for quantity required

$

$

Currently unavailable

4

Briggs & Stratton 59637

SCREW (TAPTITE)-3/8"-16 x 3/4"

Note: Contact Generac for quantity required

$

$

Not available

5

Briggs & Stratton 70409

MOUNT, VIBRATION

Note: Contact Generac for quantity required

$

$

Not available

6

Briggs & Stratton 24910

SCREW (TAPTITE)-5/16"-18 x 1/2"

Note: Contact Generac for quantity required

$

$

Not available

7

Briggs & Stratton 22129

LOCKWASHER-5/16"
(Superseded to 22129GS)

Note: Contact Generac for quantity required

$2.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 22259

NUT, HEX-5/16"-18
(Superseded to 22259GS)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 75925

HANDLE, CARRYING

Note: Contact Generac for quantity required

$

$

Currently unavailable

10

Briggs & Stratton 76203

END CAP

Note: Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 60209A

ADAPTOR, SHEET METAL

Note: Contact Generac for quantity required

$

$

Currently unavailable

12

Briggs & Stratton 58887A

BAFFLE, GENERATOR AIR-RH

Note: Contact Generac for quantity required

$

$

Currently unavailable

13

Briggs & Stratton 58887B

BAFFLE, GENERATOR AIR-LH

Note: Contact Generac for quantity required

$

$

Currently unavailable

14

Briggs & Stratton 61490

COVER, HEAD

Note: Contact Generac for quantity required

$

$

Currently unavailable

15

Briggs & Stratton 59635

SCREW (PLASTITE)-NO. 8 x 3/8"

Note: Contact Generac for quantity required

$

$

Currently unavailable

16

Briggs & Stratton 56892

SCREW (CRIMPTITE)-NO. 10 x 3/8"
(Superseded to 56892GS)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 58875A

WRAPPER, GENERATOR UPPER

Note: Contact Generac for quantity required

$

$

Currently unavailable

18

Briggs & Stratton 58876A

WRAPPER, GENERATOR LOWER

Note: Contact Generac for quantity required

$

$

Currently unavailable

19

Briggs & Stratton 66856

SUPPORT, PANEL

Note: Contact Generac for quantity required

$

$

Not available

20

Briggs & Stratton 59634

SCREW (PLASTITE)-1/4" x 1"

Note: Contact Generac for quantity required

$

$

Not available

21

Briggs & Stratton 75918

END, PANEL

Note: Contact Generac for quantity required

$

$

Not available

22

Briggs & Stratton 58888

RECEPTACLE, 120 VOLTS AC

Note: Contact Generac for quantity required

$

$

Not available

23

Briggs & Stratton 25368

TERMINAL, BATTERY CHARGE-BLACK

Note: Contact Generac for quantity required

$

$

Not available

24

Briggs & Stratton 25367

TERMINAL, BATTERY CHARGE-RED
(Superseded to 25367GS)

Note: Contact Generac for quantity required

$21.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 75207B

BREAKER, CIRCUIT-10AMP
(Superseded to 75207BGS)

Note: Contact Generac for quantity required

$12.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 75207C

BREAKER, CIRCUIT-12AMP
(Superseded to 75207CGS)

Note: Contact Generac for quantity required

$10.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 75928

GRIP, HANDLE
(Superseded to 75928GS)

Note: Contact Generac for quantity required

$

$

Not available

28

Briggs & Stratton 25433

LUG, GROUNDING

Note: Contact Generac for quantity required

$

$

Not available

29

Briggs & Stratton 75922A

DECAL-BATTERY CHARGE

Note: Contact Generac for quantity required

$

$

Currently unavailable

30

Briggs & Stratton 22145

FLATWASHER-5/16"

Note: Contact Generac for quantity required

$

$

Not available

31

Briggs & Stratton 61489

EXTRUSION, RUBBER

Note: Contact Generac for quantity required

$

$

Currently unavailable

Briggs & Stratton A25383

CABLE, BATTERY CHARGE

Note: NOT SHOWN; Contact Generac for quantity required

$

$

Currently unavailable

Briggs & Stratton 77550

MANUAL
(Superseded to 77550GS)

Note: NOT SHOWN; Contact Generac for quantity required

$14.99

$

Usually ships in 2-12 days

0
